jcb 19C-1E Quick Reference Guide

Please see operator manual for full details.
Key
Black Text – Standard equipment
Blue Text – Not Used

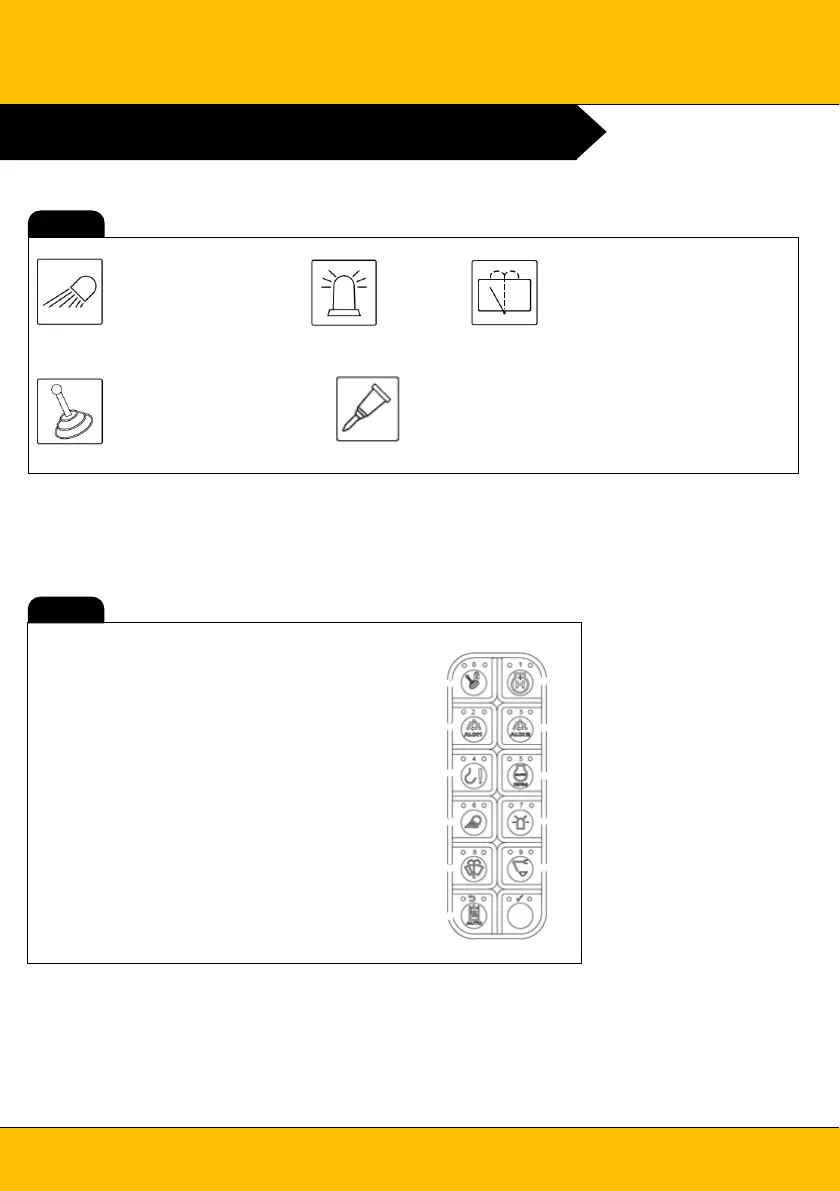

CAB & SWITCH PANEL
19C-1E
A – Control Isolation Switch (2Go)
B – Aux 1 selection switch
C – Lift overload switch on/off switch
D – Worklights on/off switch
E – Wiper/ washer on
F – Auto-hydraulic warming switch
G – H+ mode selection switch
H – Aux 2 selection switch
J – Auto idle on/off switch
K – Beacon on/off switch
L – Q-hitch sequence switch
A
B
C
D
E
F
G
H
J
K
L
Work Lights
1 = Off
2 = On (Boom)
3 = On (Boom & Cab)
Beacon
1 = Off
2 = On
Controls Isolation (2GO)
1 = Off
2 = Activate/de-activate
hydraulic controls
Window Wipers
1 = Off
2 = Intermittent / continuous /
washer
Bi-Directional and Hammer Mode Selector
1 = Bi-directional mode – Double acting 2
= Hammer mode – Single acting
Switch Panel
Fig. 9
Fig. 8
13

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
