jcb 19C-1E Quick Reference Guide

Please see operator manual for full details.
Description
19C-1e
Boom length
mm 1800
Dipper length
mm 1100
A
Maximum digging reach mm 4043
B
Maximum digging reach on ground mm 3981
C
Maximum digging depth – dozer up mm 2421
Maximum digging depth – dozer down mm 2576
D
Maximum digging height mm 3667
E
Maximum dump/load-over height mm
2637
F
Maximum height to dipper nose pivot
pin
mm
3335
G
Maximum vertical wallcut depth mm
2534
H
Minimum front swing radius (no offset) mm 1517
Minimum front swing radius (fully
offset)
mm
1196
J
Boom swing left
⁰
75
K
Boom swing right
⁰
55
Bucket rotation
⁰
201
Dipper rotation
⁰
126
Bucket tearout (power position) kN 18
19C-1E

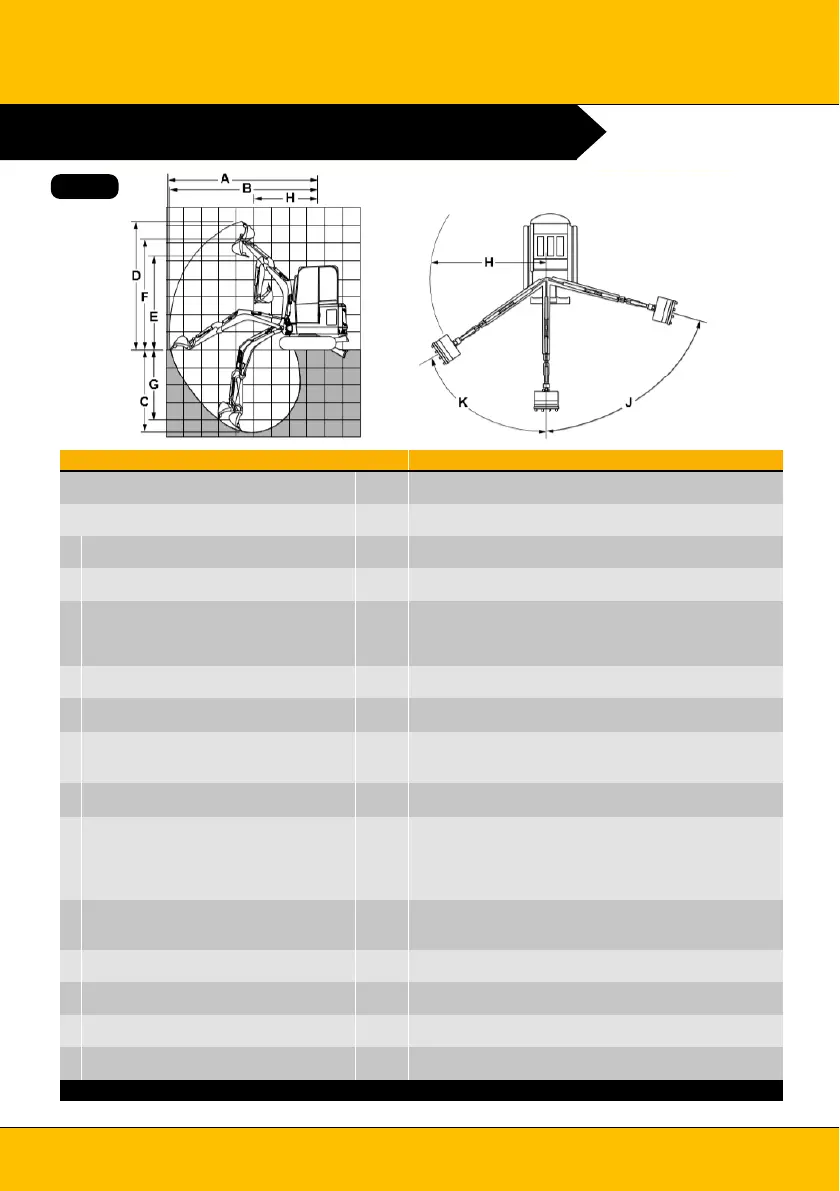

DIG PERFORMANCE
Fig.2
7

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
