Dismantling and Assembly

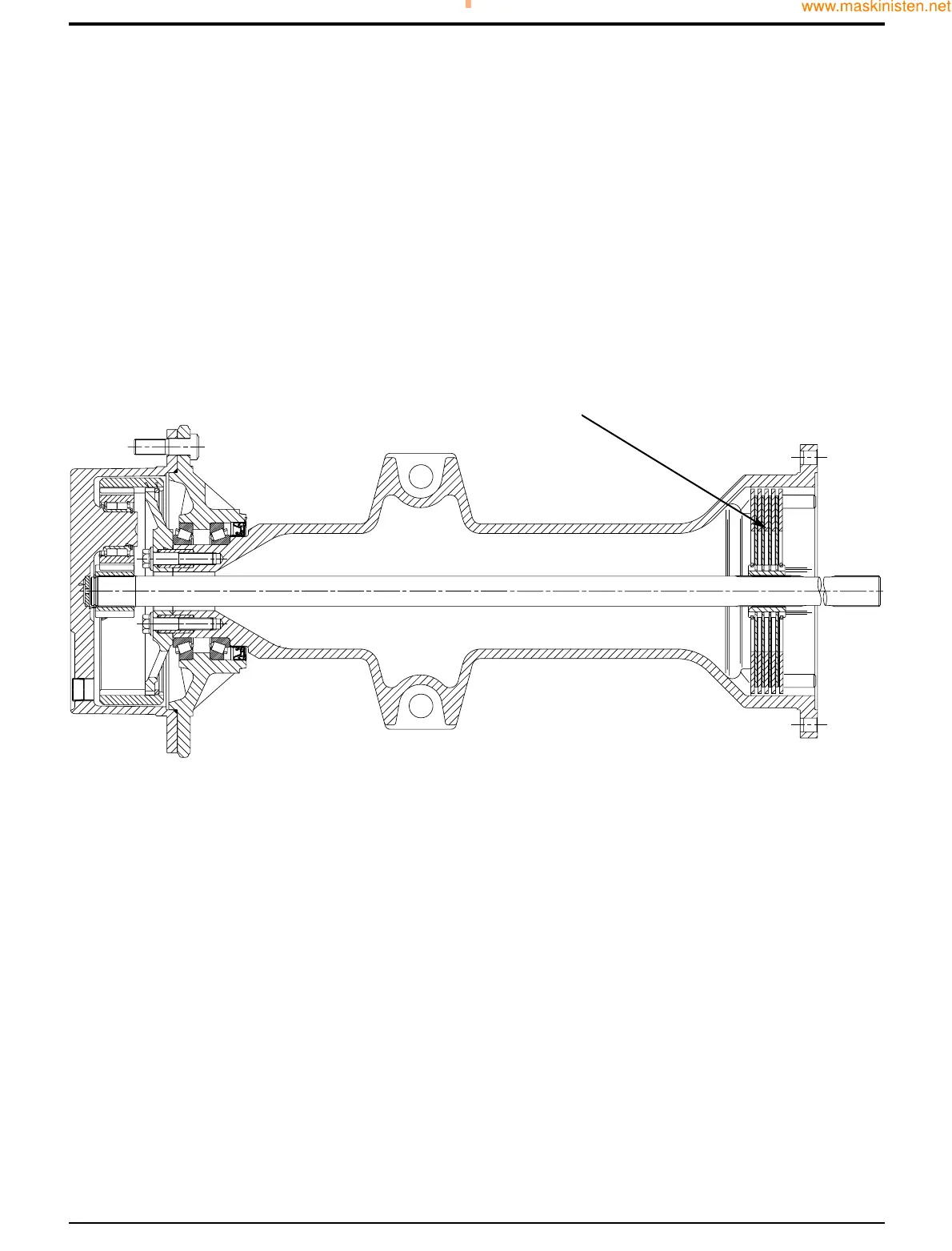

The service brakes are located in the rear axle, as shown at
A
. Instructions for dismantling and assembly of the brake are
described in Section F -
Rear Axle Brakes
.
40 - 1
Section G
Brakes
9803/7130
Section G
40 - 1
Issue 1
Service Brakes
A388340
A
