jcb 8026 CTS Quick Start Guide

10 Please see operator manual for full details.
Excavator Controls

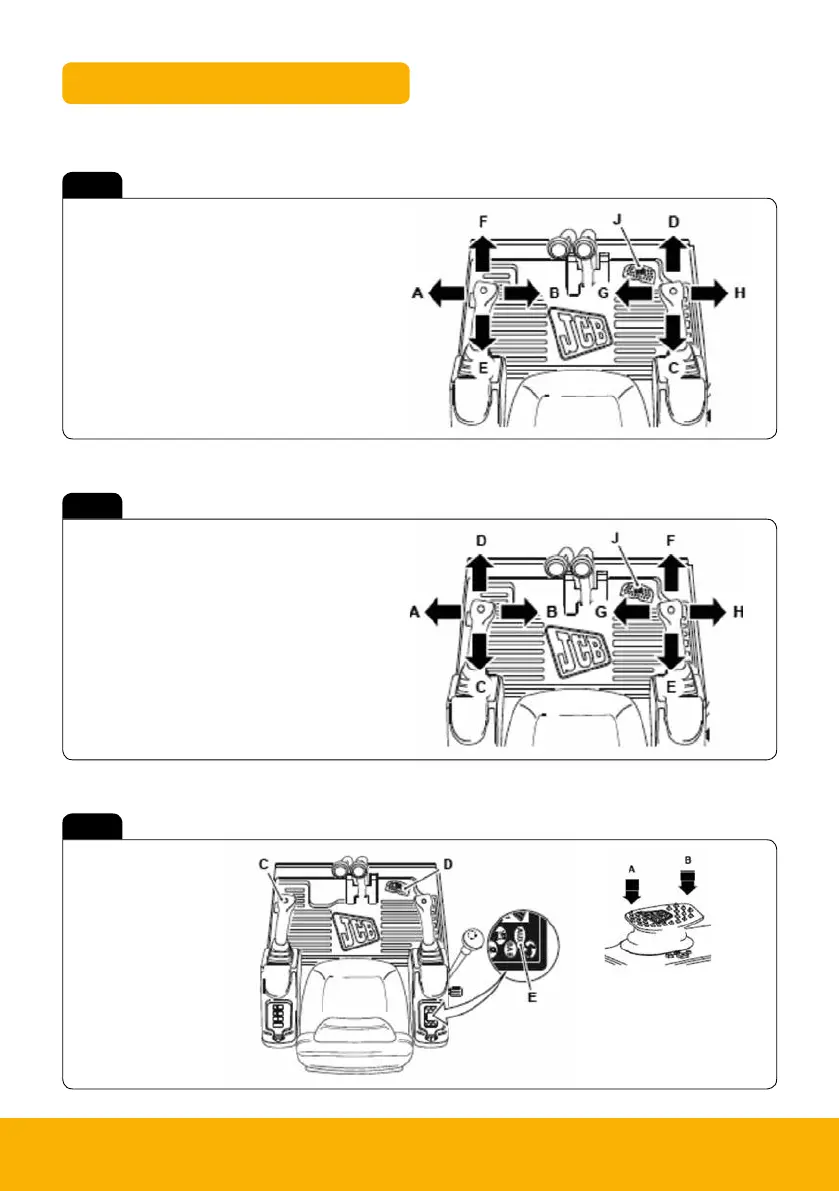

A Slew cab left
B Slew cab right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Crowd bucket (to gather a load)
H Dump bucket (to dump a load)
J Swing boom
A Slew cab left
B Slew cab right
C Raise boom
D Lower boom
E Dipper in
F Dipper out
G Crowd bucket (to gather a load)
H Dump bucket (to dump a load)
J Swing boom
A Swing left
B Swing right
C Swing/auxiliary switch
D Swing/auxiliary pedal
E AUX indicator lamp
A Left AUX function
B Right AUX function
(double-acting
attachments only)
Fig 9
Fig 10
Fig 11
ISO Control Pattern
SAE Control Pattern
Swing and Auxiliary Controls
