5 - 23
Section C
Electrics
9803/6400
Section C
5 - 23
Issue 1
Pump Control
Travel Warning

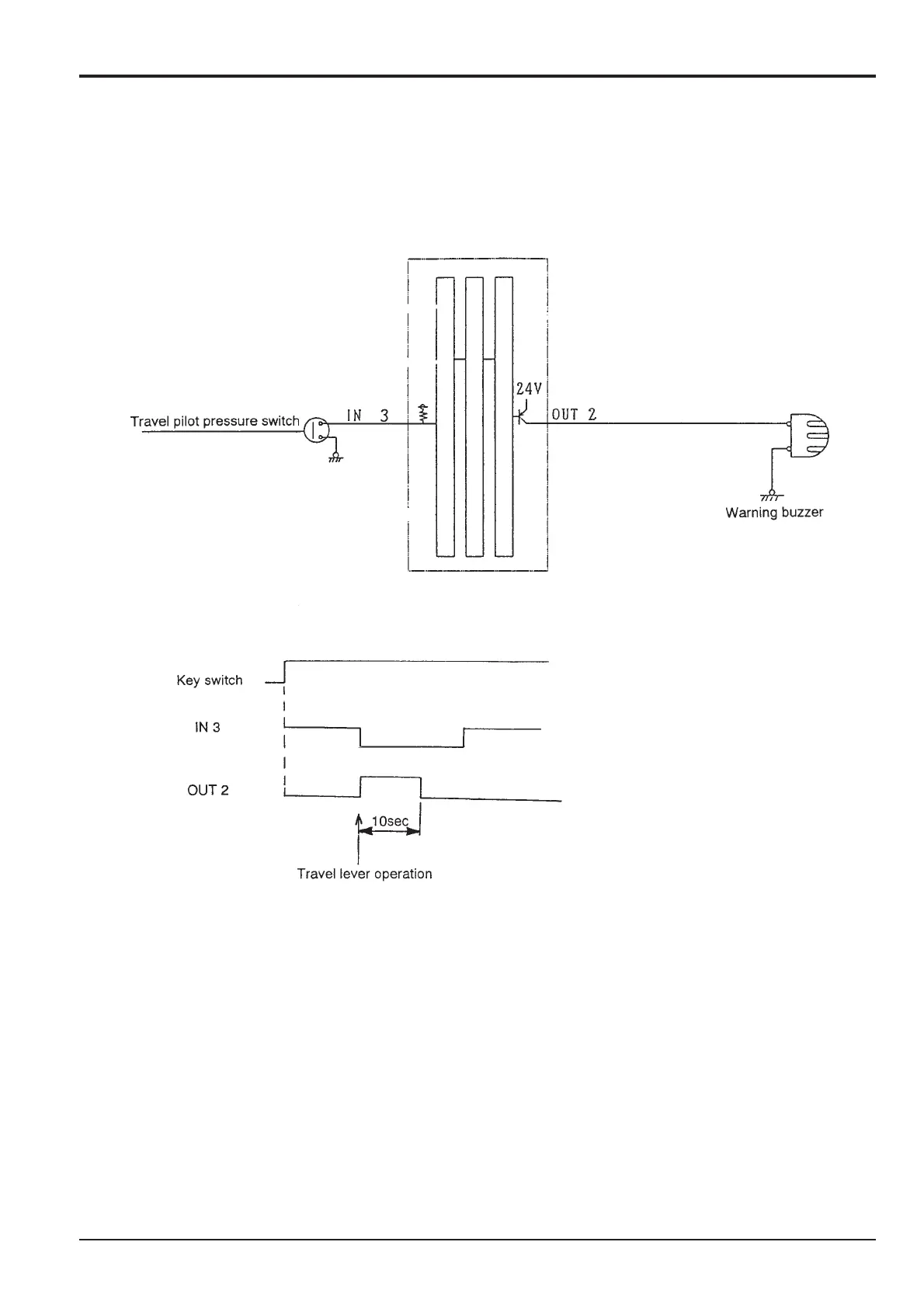

Circuit Diagram
A travel pilot pressure switch is turned ON by travel lever operation and 24V is output for 10 seconds to the buzzer.
