jcb JS220 Service Manual

5 - 5
Attachments (continued)

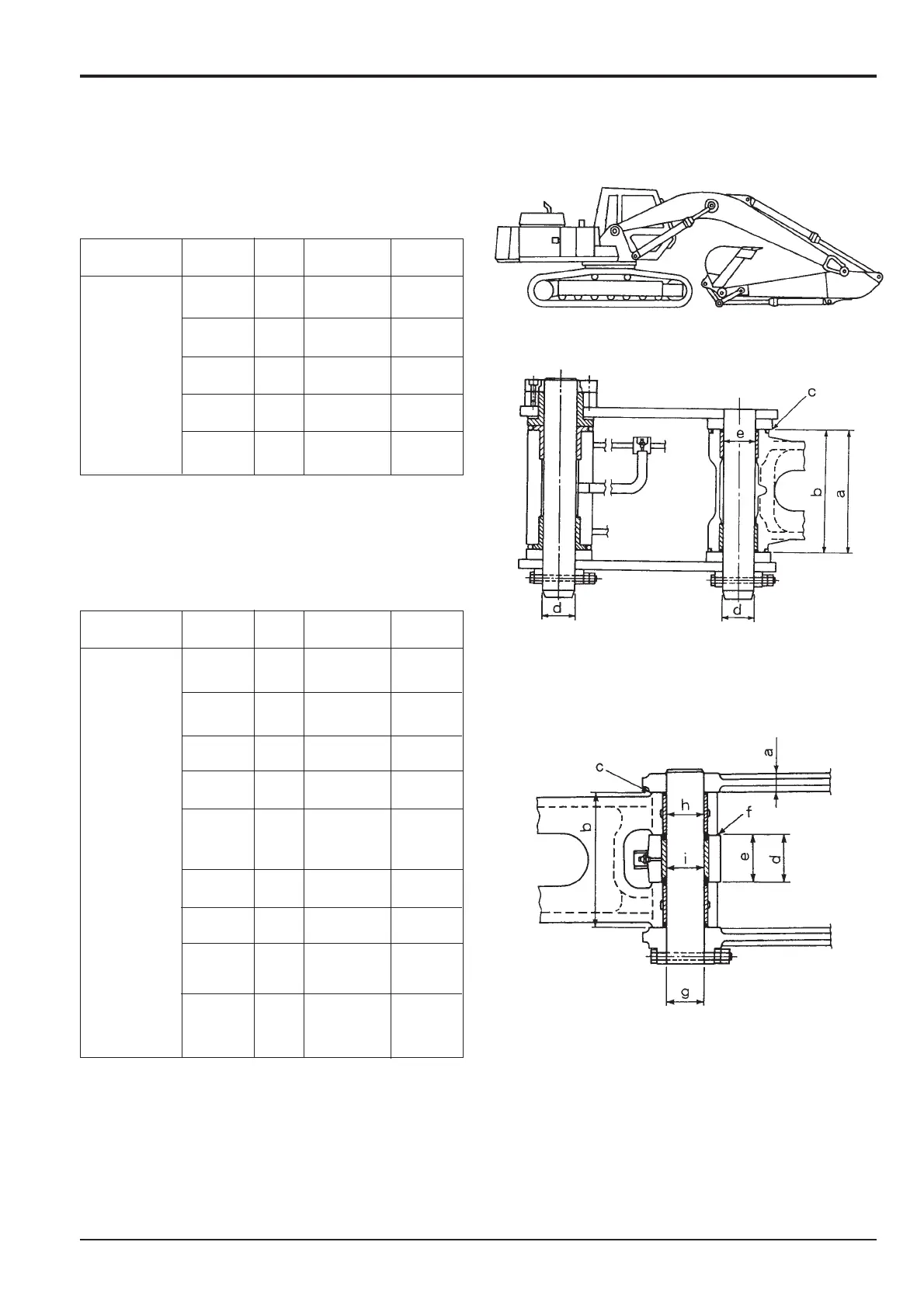

Bucket and Bucket Link Installation JS240,
JS240LC
Bucket Link and Bucket Ram Installation
JS240, JS240LC
Section B
Body & Framework
9803/6400
Section B
5 - 5
Issue 2*
Maintenance Specifications
*
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
9. Bucket and Bucket a 326 323
bucket link
installation
Bucket link b 325 323
Clearance c 1.0-3.5
Pin d ø90 ø89
Bushing e ø90 ø91.5
(bucket link)
Shim for
adjustment
KRV1180
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
10. Bucket link Dipper Link a 50 47
and bucket
ram
installation
Bucket link b 296 294
Clearance c 1.0-1.5
Bucket link d 106 108
Bucket
ram e 105 103
(eye end)
Clearance f 1.0-2.0
Pin g ø90 ø89
Bushing h ø90 ø91.5
(Bucket link)
Bushing
(Bucket i ø90 ø91.5
ram)
Shim for
adjustment
KSP0268
Shim for
adjustment
KSP0268
