Dismantling (continued)

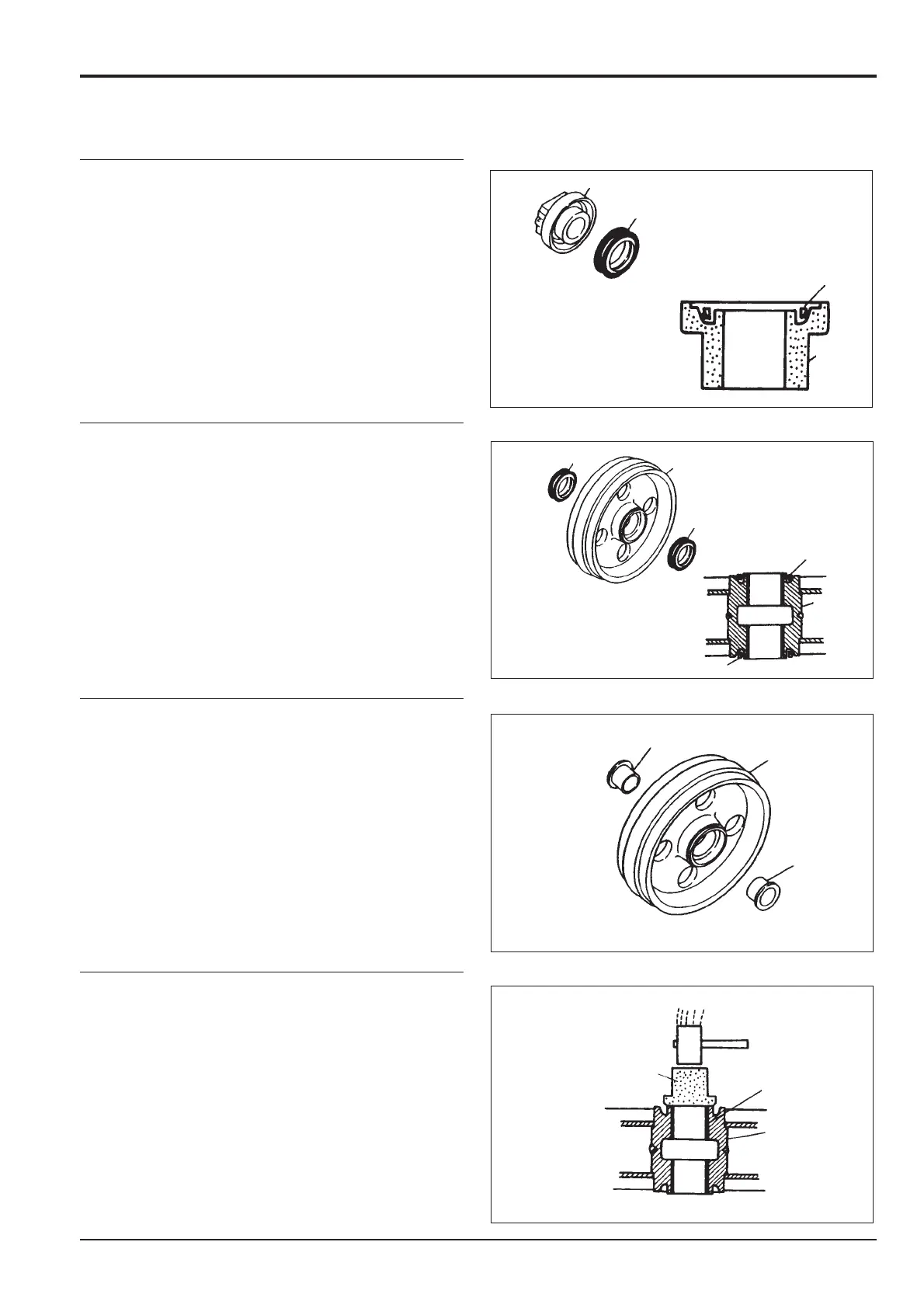

5. Remove floating seal J from each hub C using a pry bar.

6. Remove floating seal J from each side of idler wheel G

using a pry bar.

7. If badly worn or damaged, remove the bushes K from

idler wheel G using a press or puller.

Protect parts from moisture and dust if left dismantled for

some time.

Assembly

1. Clean all parts thoroughly in a suitable solvent. Dry shaft

and bore of idler wheel using compressed air in a place

free of dust and moisture.

Check components for wear as detailed under Wear

Limits. Polish out scratches and roughness using an oil

stone. Then apply a coat of engine oil to all parts.

Carefully drive the new bushes K into the idler wheel G,

using a suitable dolly L.
