jcb JS220 Service Manual

5 - 4
Attachments (continued)
Bucket Ram Installations JS240, JS240LC
Dipper and Dipper Link Installation JS240,
JS240LC
Section B
Body & Framework
9803/6400
Section B
5 - 4
Issue 2*

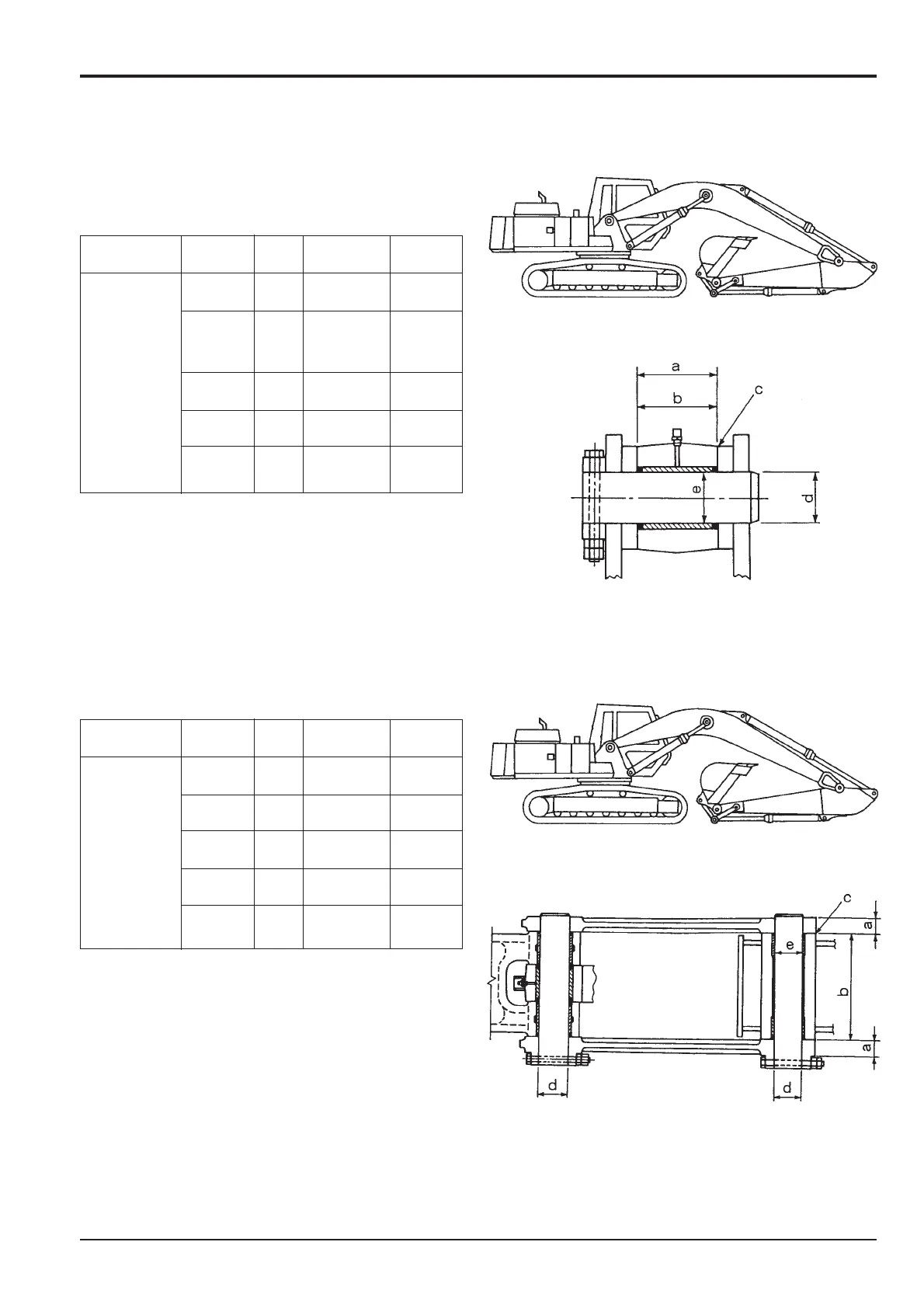

Maintenance Specifications
*
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
7. Bucket ram Dipper a 116 122
installation
Bucket
ram b 115 113
(eye end)
Clearance c 0.5-3.0
Pin d ø80 ø79
Bushing e ø80 ø81.5
(bucket ram)
Shim for
adjustment
KRV1197
Equipment Part Code Standard Service
Name Name Value (mm) Limit (mm)
8. Dipper and Dipper Link a 50 47
Dipper link
installation
Dipper b 296 294
Clearance c 1.0-1.5
Pin d ø80 ø79
Bushing e ø80 ø81.5
(Dipper)
Shim for
adjustment
KRP1349
