23 - 2
Regulator Disassembly (continued)

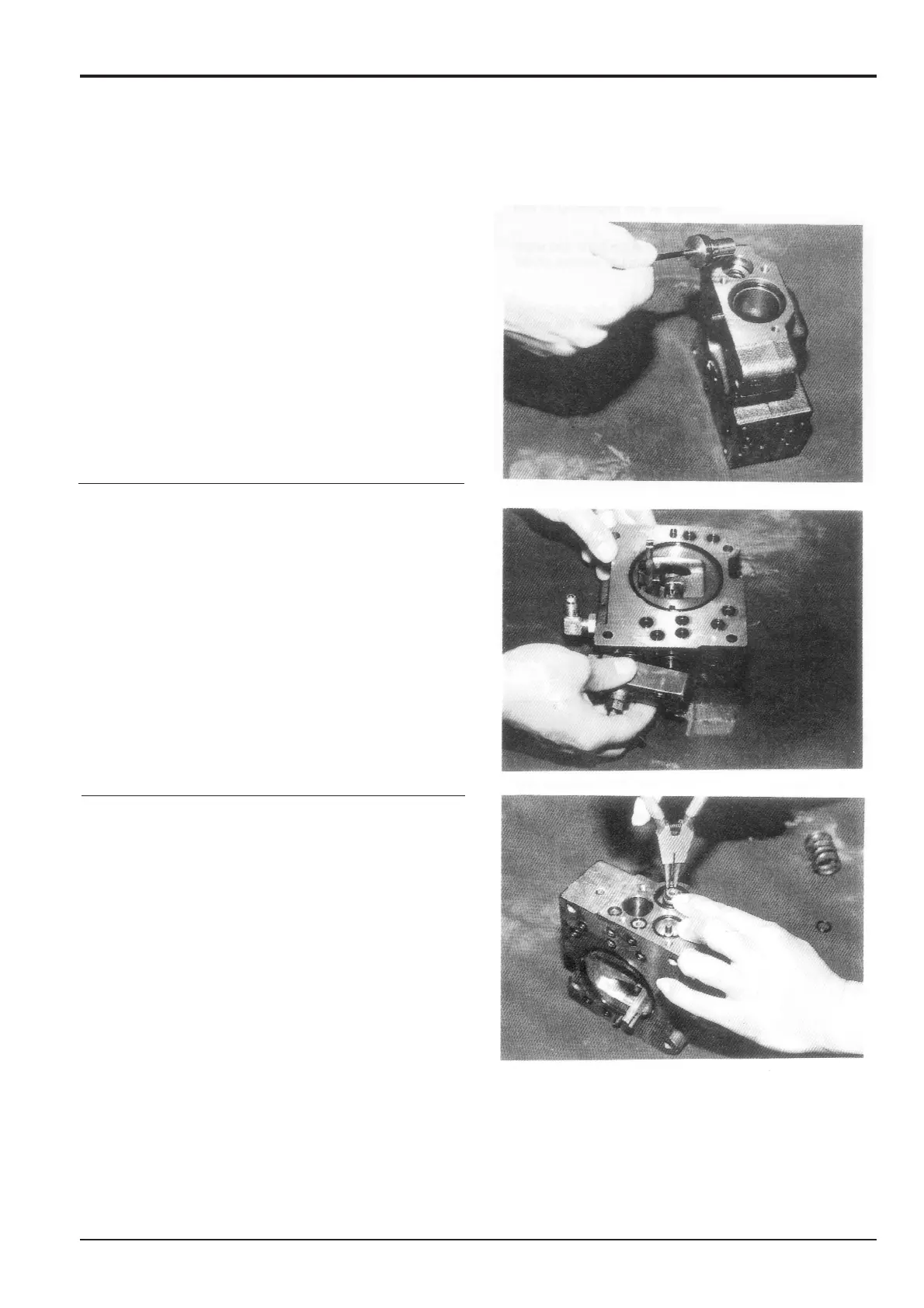

3. After removing the cover (C) (629) SUB, remove the
outer spring (625), inner spring (626), spring base (C)
(624) from the compensatory part and pull out the
adjusting ring (Q) (645), pilot spring (646), spring base
(644) from the pilot part.
Note: For easy removal, use M4 bolt to pull out adjusting
ring (Q) (645).
4. Remove the hexagonal socket head bolt (436, 438) and
remove the pilot cover (641). After removing the pilot cover,
remove the set spring (655) from the pilot part.
5. Remove the stop ring (814) and remove the spring base
(653), return spring (654) and sleeve (651).
Note: (1) The SAAKURIPPU (836) is assembled to the sleeve
(651). (2) When removing the stop ring (814), the return
spring (654) will jump out so do not lose it.
Section E
Hydraulics
9803/6400
Section E
23 - 2
Issue 1
Regulator JS200. JS240
