23 - 4
Regulator Disassembly (continued)

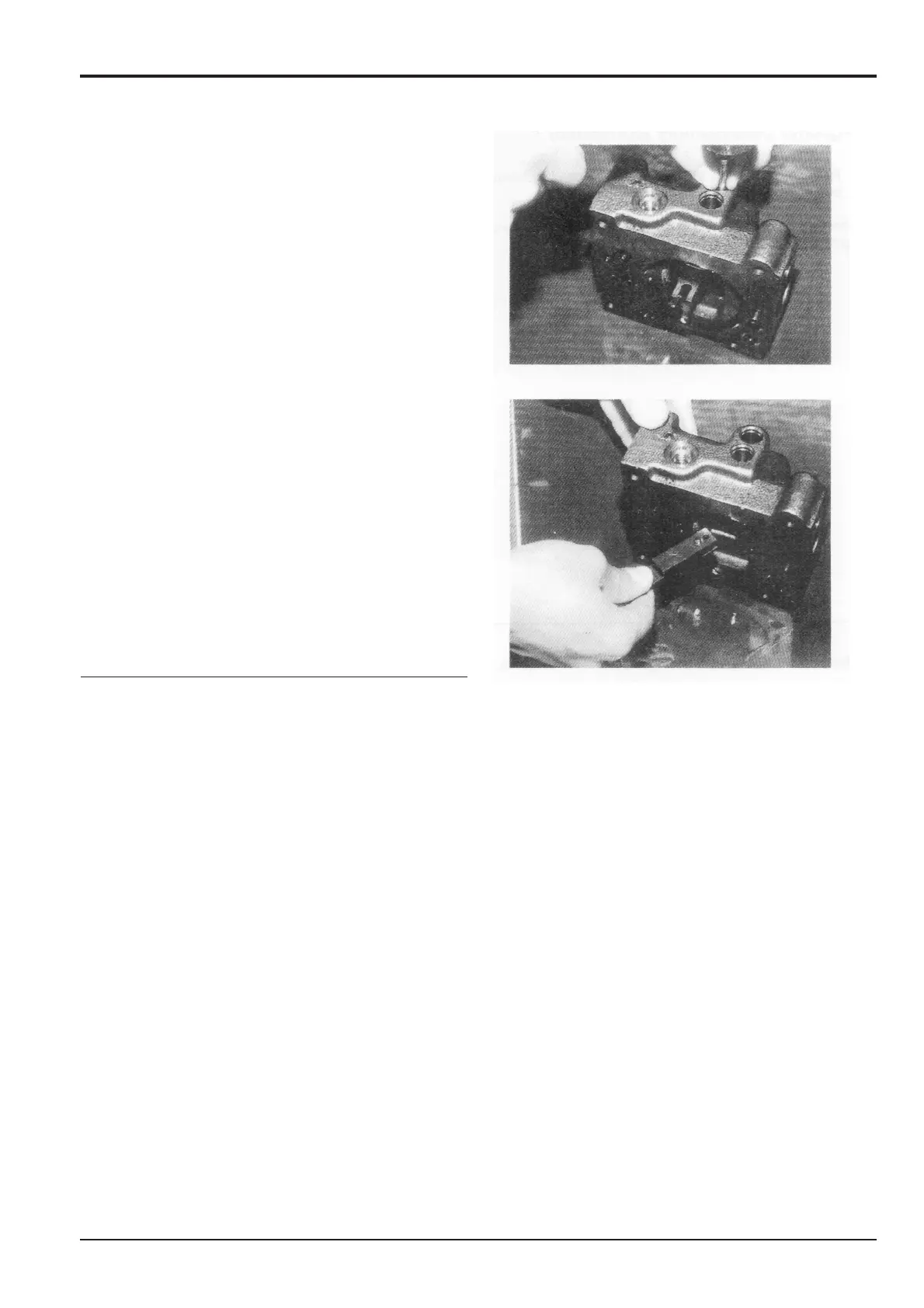

8. Pull out pin (874) and remove the feedback lever (611).
Note: To remove the pin (874) (o4), use a slim steel bar and
push out from above taking care not to touch the lever (1)
(612).
9. Remove lever (1) (612). Do not remove pin (875).
10. Take out the pilot piston (643) and the spool (652).
11. Take out the piston case (622), compensatory piston
(621) and compensatory rod (623) and the regulator
disassembly is complete.
Note: The piston case (622) can be removed by pushing the
compensatory rod (623) from the opposite side of the piston
case.
Section E
Hydraulics
9803/6400
Section E
23 - 4
Issue 1
Regulator JS200. JS240
