Dipper Ram
(continued)

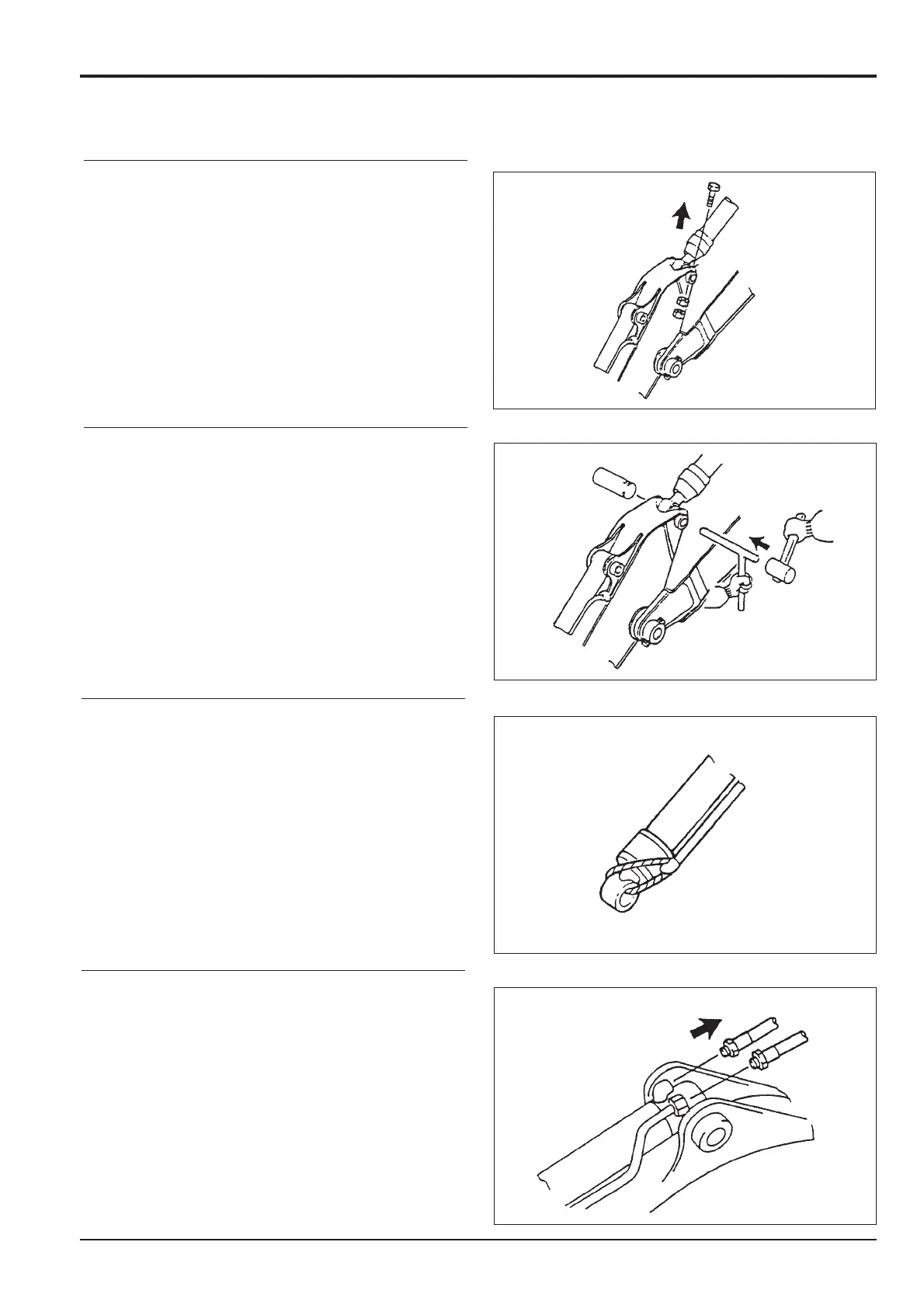

4.
Remove the nuts and bolts.
5.
Push out the pin, using a bar and hammer.
6.
Restrain the eye end of the Dipper ram rod to the ram
cylinder to prevent the rod from extending.
7.
Remove the Dipper ram hoses, and install plugs or caps
to prevent contamination.
73 - 2
Section E
Hydraulics
9803/6400
Section E
73 - 2
Issue 1
Hydraulic Rams
344
346
