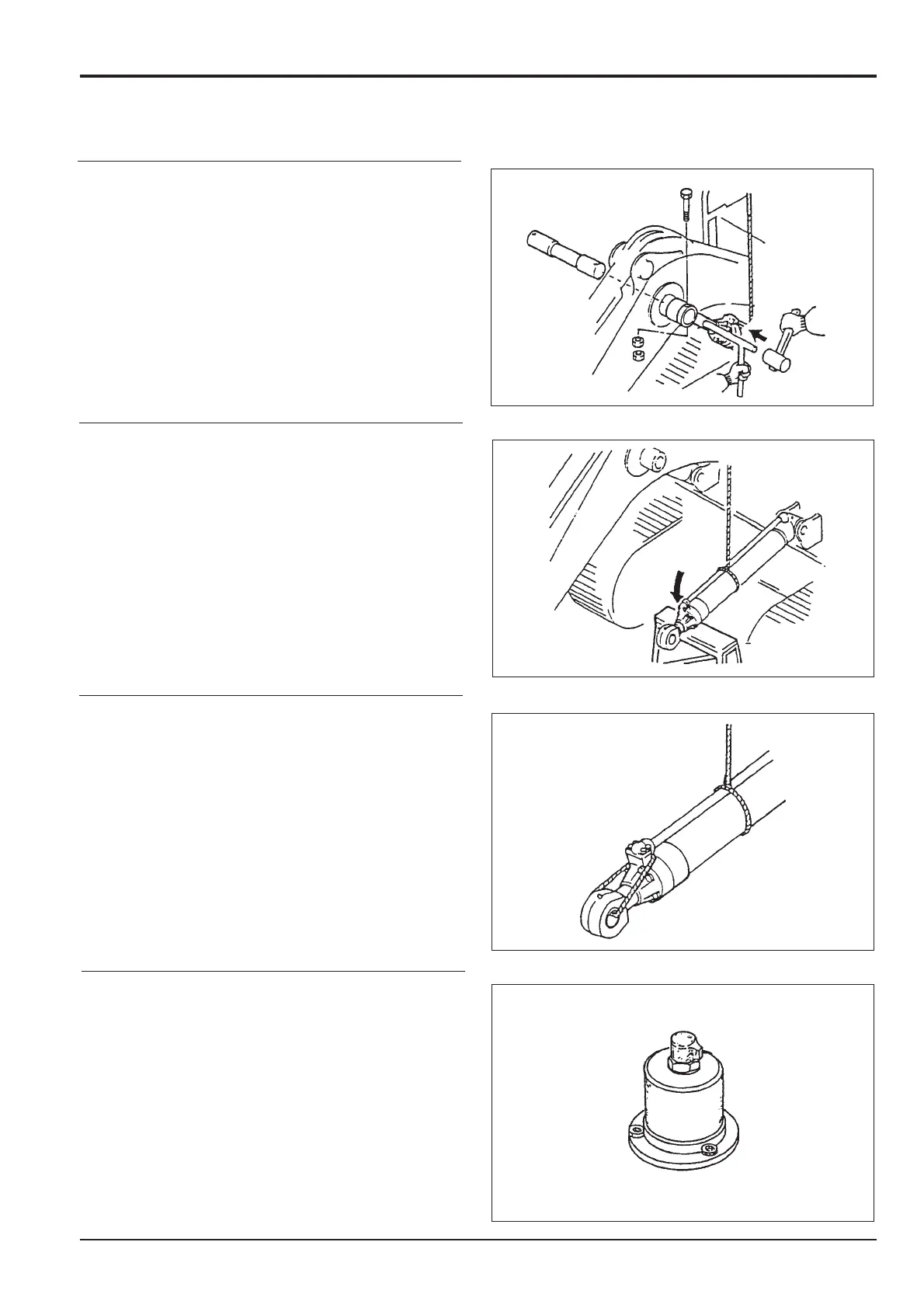

Boom Ram
(continued)
4.
a.
Remove the nuts, bolt and collar.
b.
Push out the pin, using a bar and hammer.
5.
Lower the Boom ram and place it on a stand.
6.
Restrain the eye end of the Boom ram rod to the ram
cylinder, to prevent movement of the rod.
7.
Release the Tank Pressure.
See Releasing the T
ank Pressure.
74 - 2
