Assembly JS200/JS240 (continued)

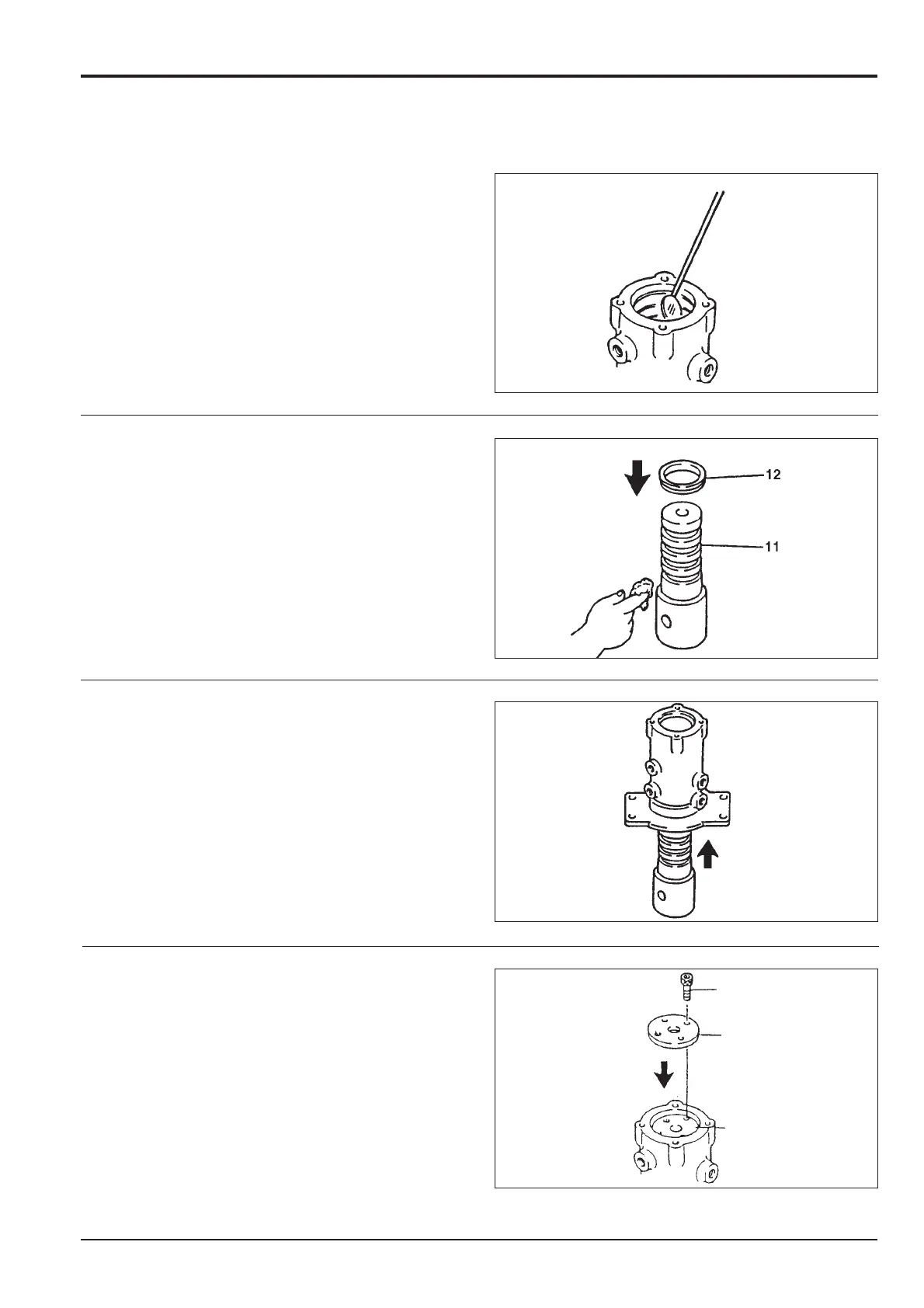

3. After installing the 'O'-ring, packing ring and packing,
check with a mirror to see if they are installed correctly.
After checking, coat with grease then check once more
for any protrusion, twisting, etc.
4. Install the V-ring 12 on the axle 11 and grease
adequately.
Take care to prevent contamination of the grease by
water or dirt.
5. Install the axle 11 to the rotor 13.
Note: Set the V-ring 12 so that it will not be cut or scratched.
6. Install the thrust plate.
Section E
Hydraulics
9803/6400
Section E
82 - 5
Issue 1
Rotary Coupling
17
16
11
