9 - 4
Dismantling
(continued)

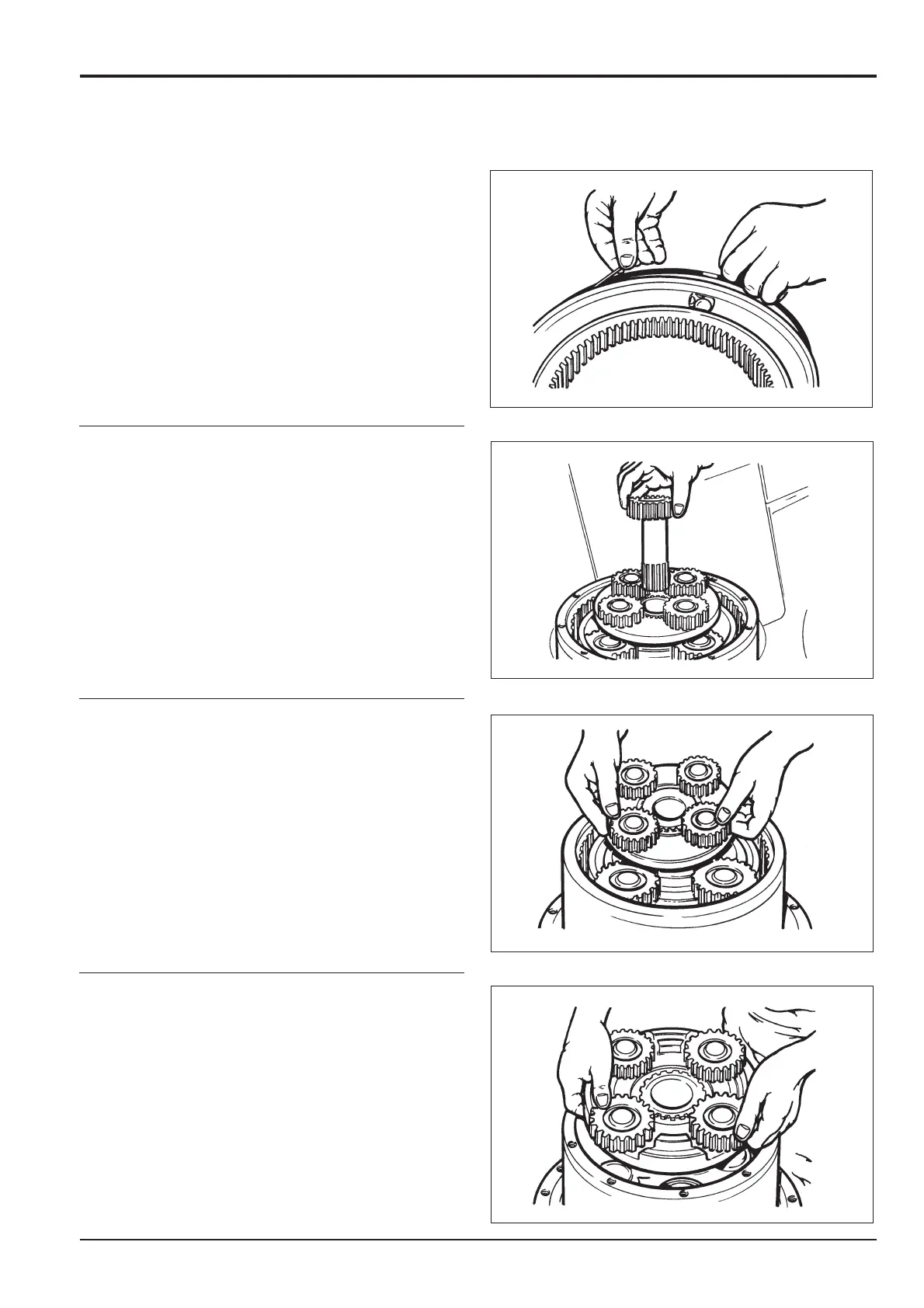

8.
Remove the (5)
‘O’
-ring, from its groove in the (4) end
cover.
9.
Remove the (7) first stage sun gear.
10.
Remove the (8) first reduction assembly.
11
.
Remove the (9) second reduction assembly.
Section F
T
ransmission
9803/6400
Section F
9 - 4
Issue 1
Gearbox
