Dismantling (continued)

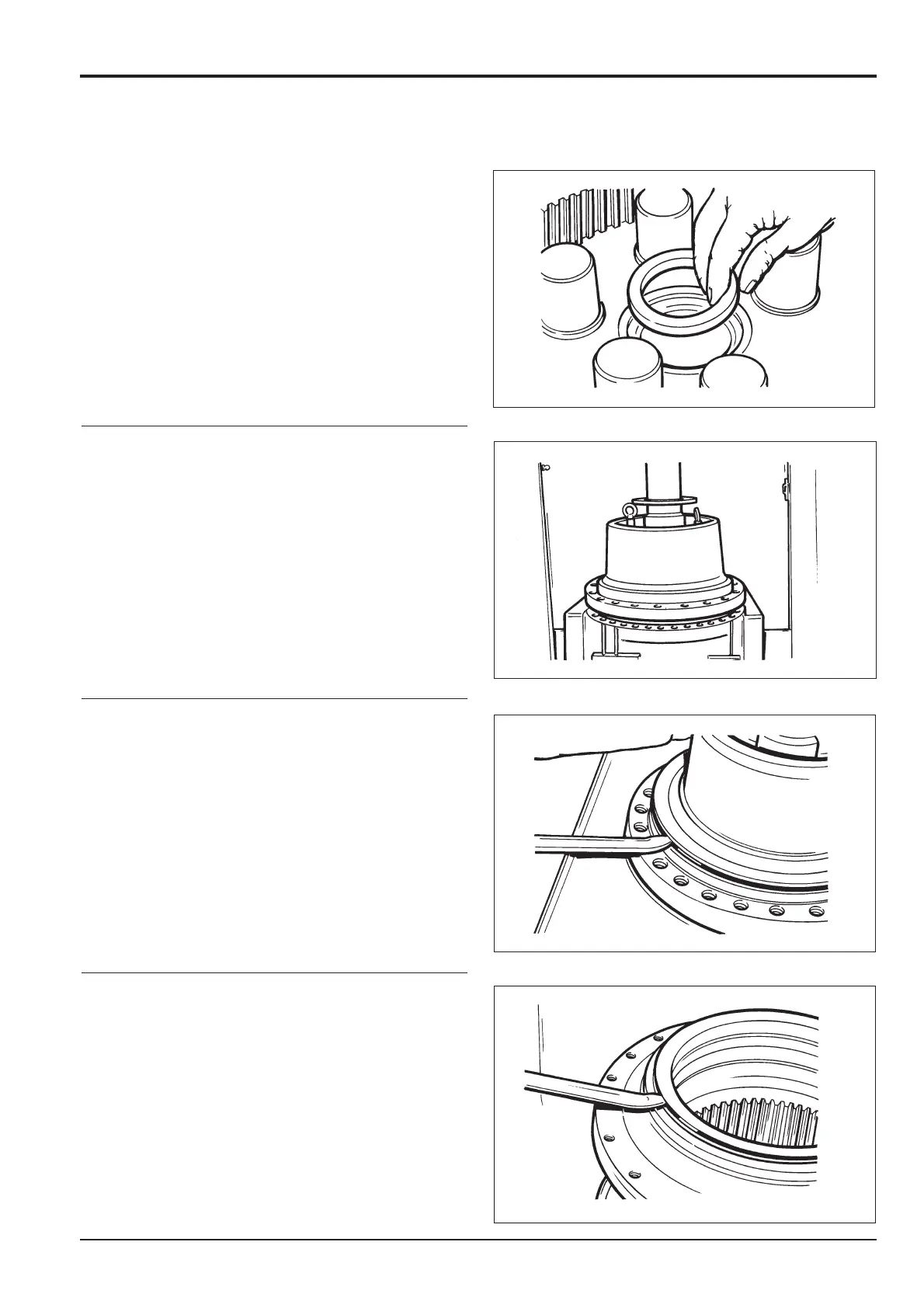

16. Remove the (16) centering ring, from the (17) flanged
hub.
Note: This operation must be carried out only when the hub
is to be replaced.
17. Using a press and a drift, remove the (17) flanged hub,
from the (14) gearbox housing.
Note: To prevent oil leaks it is advisable to replace the
lifetime seals, (both the metal ring and ‘O’-rings) at this time.
Seal replacement can only be done with the gearbox
removed from the machine.
18. Remove the (15) half seal, from the (17) flanged hub.
19. Remove the (15) half seals, from the (14) gearbox
housing.
