7 - 2
Replacement

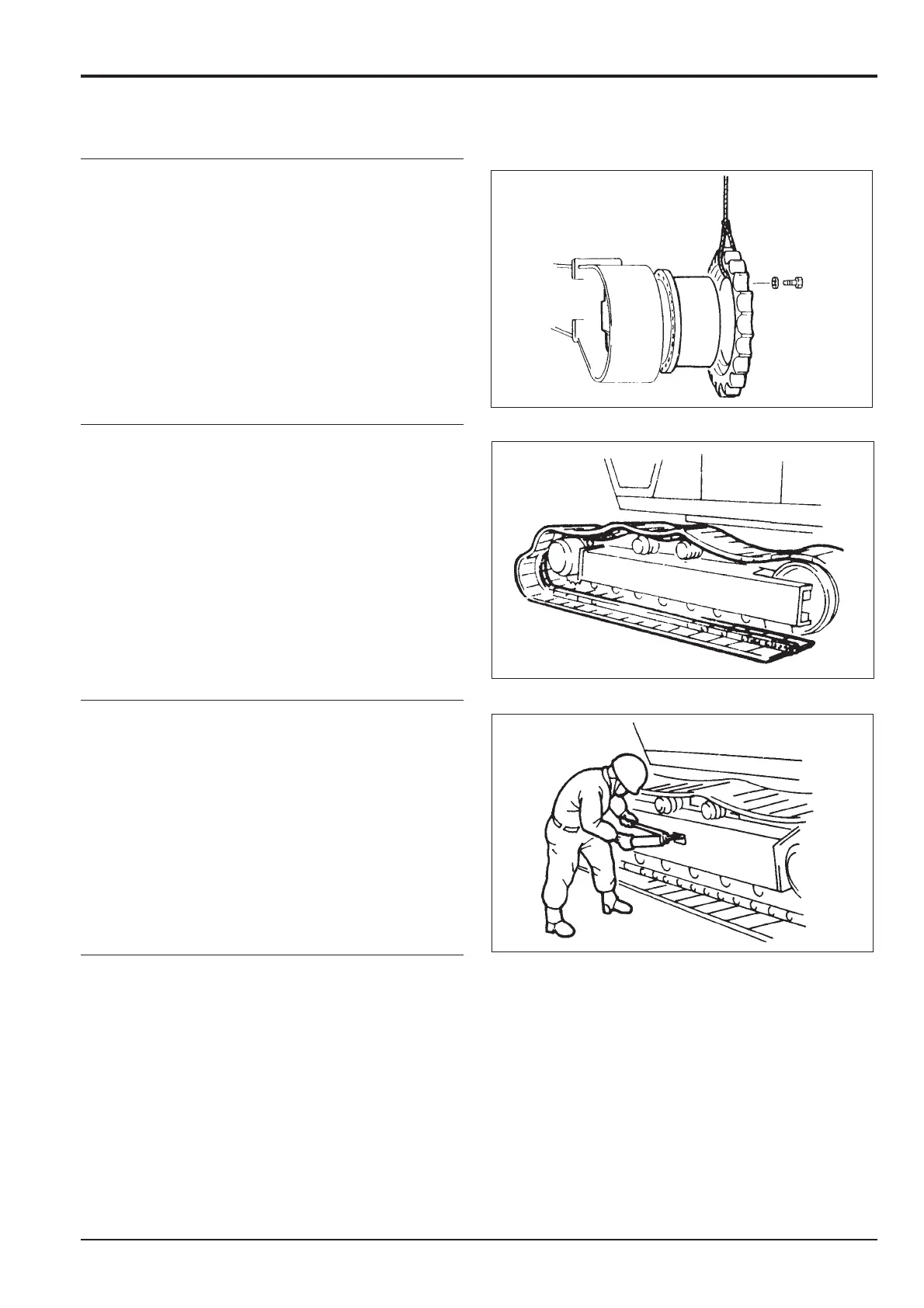

1. Support the sprocket and position it on the gearbox.
Install the bolts and washers, using Loctite 262 on the
bolt threads. Tighten the bolts in a diagonal sequence.
Torque Settings
Machine Nm lbf ft
JS200 267.312 196-230
JS240 267.312 196-230
2. Remove the wooden blocks. Connect the track link.
3. Apply grease through the check valve to adjust the track
tension (see Section 3).
Section J
Track and Running Gear
9803/6400
Section J
7 - 2
Issue 1
Drive Sprocket (continued)
