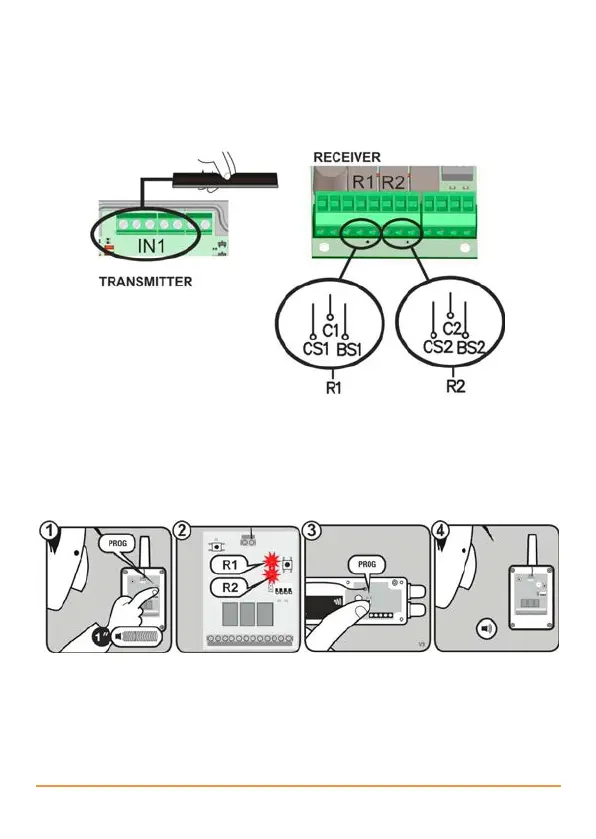

Mode 3: Safety edge connected to IN1 activates R1

and R2

Safety edge connected in IN1 will activate R1 and R2.

Employed receiver memory = 2 transmitters

Programming sequence:

•Press PROG button on the receiver (1) until R1 LED and R2 LED light (2).

•Press PROG button on the transmitter (3).

•A beep will be heard on the receiver indicating the transmitter is properly pro-

grammed (4).

•To exit programming mode, wait for 20 seconds or press PROG button on the

receiver. Two beeps will be heard.
