jcm-tech RB3 T868 - Programming Mode 4: IN1 to R1, IN2 to R2; Mode 4 Programming Sequence

To Next Page

To Previous Page

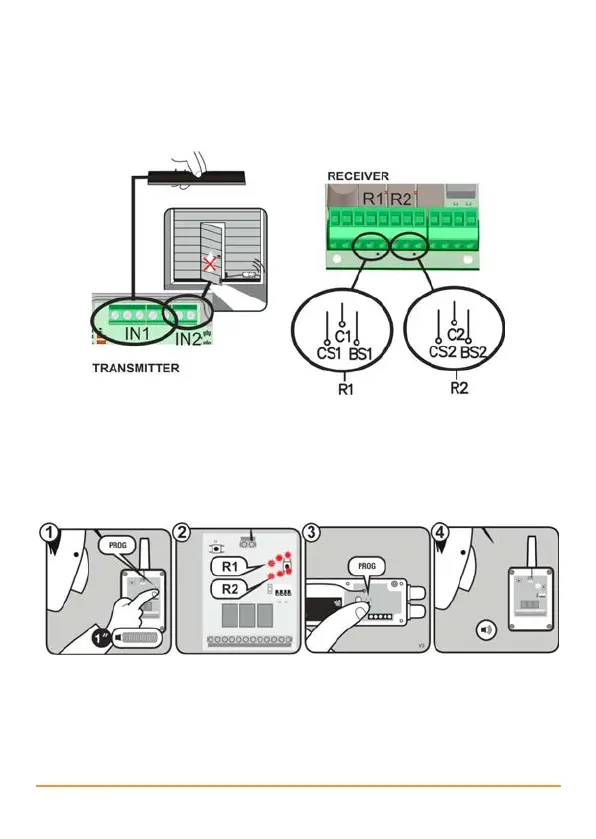

Mode 4: Safety edge connected to IN1 activates R1

and safety edge connected to IN2 activates R2

Safety edge connected in IN1 will activate R1 and IN2 will activate R2.

Employed receiver memory = 2 transmitters

Programming sequence:

•Press PROG button on the receiver (1) until R1 LED and R2 LED flash (2).

•Press PROG button on the transmitter (3).

•A beep will be heard on the receiver indicating the transmitter is properly pro-

grammed (4).

•To exit programming mode, wait for 20 seconds or press PROG button on the

receiver. Two beeps will be heard.
