P ALM A66US (C ONTINUED )

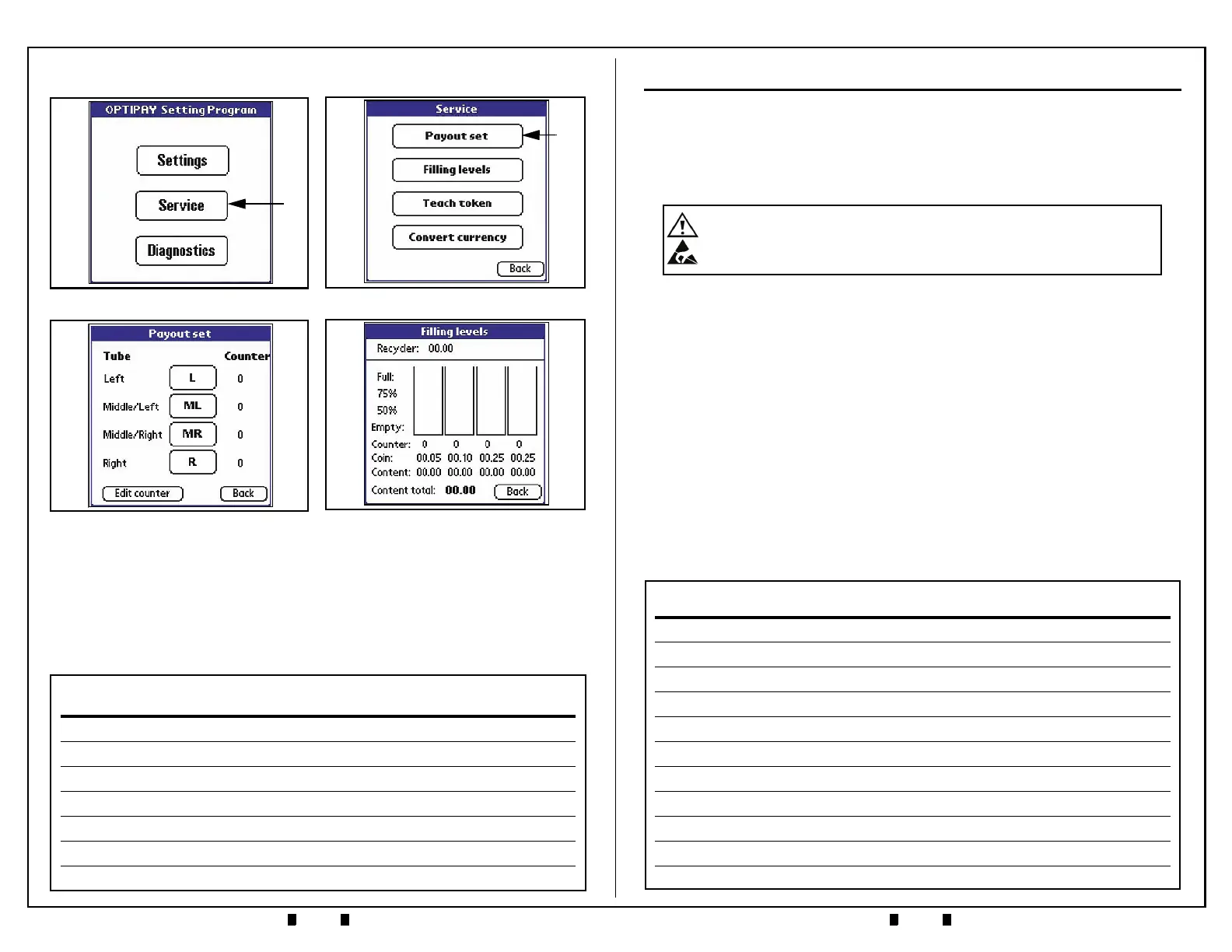

16.On the ‘Service’ Menu, select the ‘Filling Levels’ Screen Button. The ‘Filling
Levels’ Screen is shown in Figure 32. The four (4) Coin Tubes are represented
by barograph levels to indicate the current level of coins present in each coin
tube. Counters at the bottom of the screen indicate the cash amount present in
each tube. The 'Content total' amount represents the total value of all coin tubes
plus the content value of the RC-10 Recycler.
Figure 30 Service Sub-Menu
a
Figure 29 Main Menu Screen
a
Figure 32 Filling Levels Screen
Figure 31 Payout Set Screen
SAFETY PRECAUTIONS
Specific A-66 installation safety precautions to observe are:
• To remove power from the vending machine prior to removing, installing, or
replacing subassemblies on the Coin Changer
• To never connect or disconnect the 6-pin MDB Harness Connector from the Coin
Changer while power is applied
• To keep water and other liquids away from the Coin Changer
.
Caution: The Coin Changer contains printed circuit boards which contain
ESD sensitive components that may be damaged beyond repair due to
electrostatic discharge. Please observe proper handling instructions when
working around and with static sensitive components.
