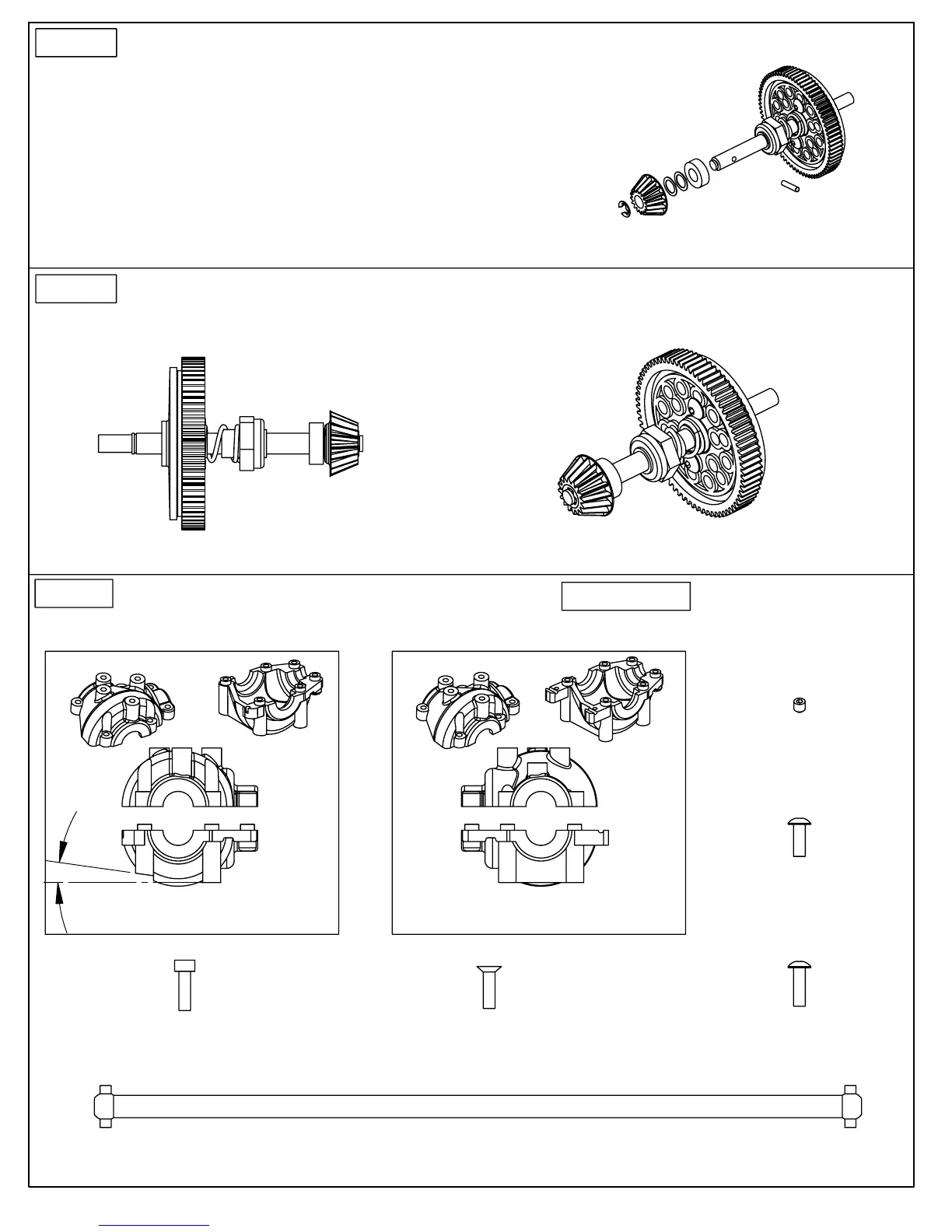

1. SLIDE ONE BEARING AND TWO INPUT SHAFT SHIMS ONTO THE SLIPPER SHAFT.
2. INSTALL AND CENTER A DOWEL PIN INTO THE SLIPPER SHAFT.
3. SLIDE A DRIVE PINON ONTO THE END OF THE INPUT SHAFT. MAKE SURE THE
DOWEL PIN ALIGNS PERFECTLY WITH THE SLOT IN THE PINION.
4. ADD A SMALL E-CLIP.
REAR INPUT SHAFT/SLIPPER ASSEMBLY:
COMPARE REAR INPUT SHAFT/SLIPPER ASSEMBLY
4-40 X 3/8"
BUTTON HEAD SCREW
x 4
4-40 X 3/8"
BUTTON HEAD SCREW
x 4
4-40 X 3/8"
FLAT HEAD SCREW
x 6
1. 1/16" ALLEN WRENCH
2. 3/32" ALLEN WRENCH
3. .050" ALLEN WRENCH
TRANSMISSION COMPONENTS
8°
FRONT TRANSMISSION HOUSING
REAR TRANSMISSION HOUSING
4-40 x 1/8"
SET SCREW
x 2
DRIVE SHAFT
4-40 X 3/8"
SOCKET HEAD SCREW
x 8
STEP 10
STEP 11
BAG C
TOOLS USED
