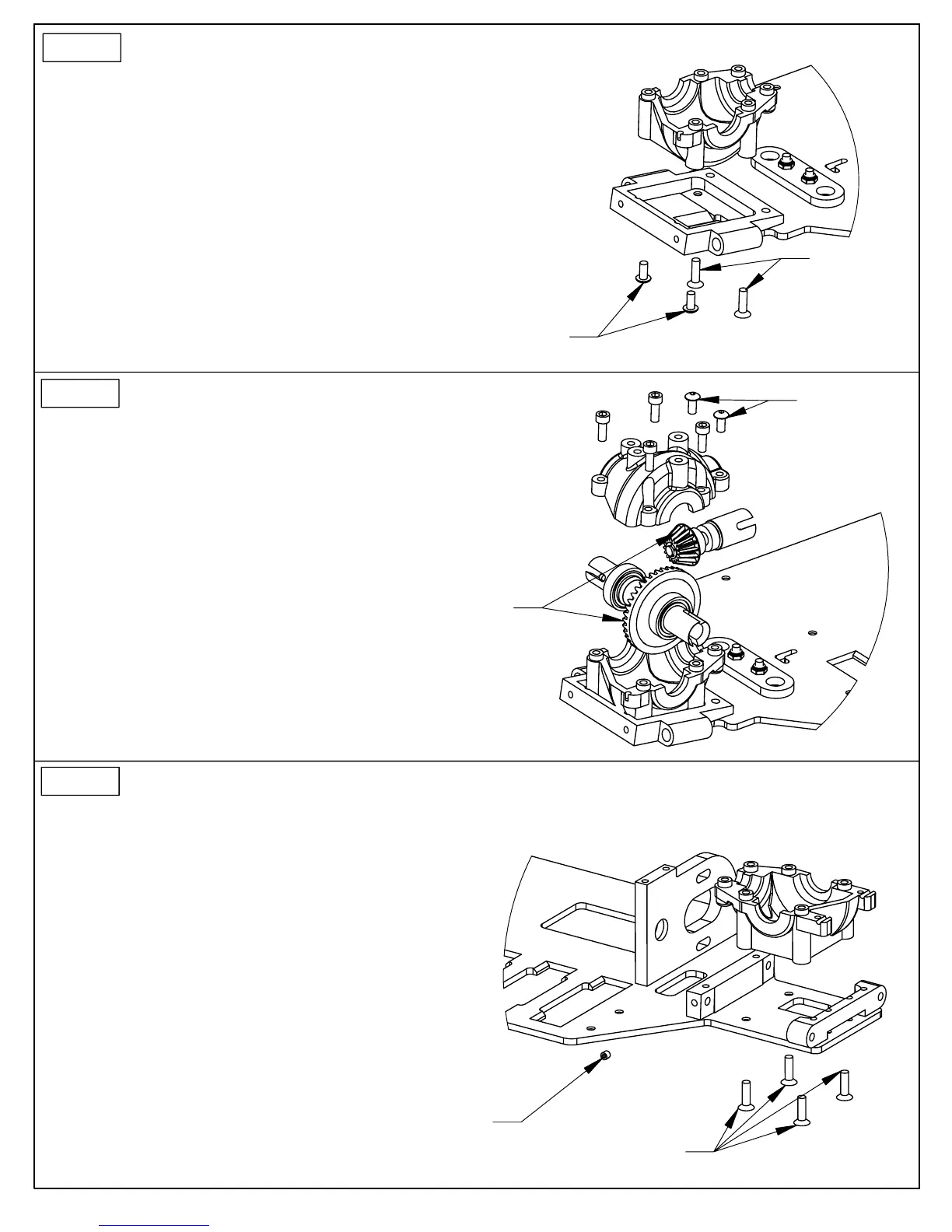

FRONT TRANSMISSION ASSEMBLY, LOWER HALF:
1. ATTACH THE LOWER FRONT TRANSMISSION HOUSING TO THE CHASSIS
AND FRONT BULKHEAD USING TWO 4-40 x 5/16" BUTTON HEAD SCREWS
IN THE FRONT AND TWO 4-40 x 3/8" FLAT HEAD SCREWS IN THE BACK.
4-40 x 5/16"
BUTTON HEAD
x 2
FRONT TRANSMISSION ASSEMBLY:
1. INSTALL THE FRONT DIFF ASSEMBLY AND FRONT INPUT SHAFT
ASSEMBLY IN THE LOWER TRANSMISSION CASE.
2. ADD A SMALL AMOUNT OF STEALTH LUBE TO THE FRONT SIDE
OF THE RING GEAR AND PINON GEAR.
3. ATTACH THE UPPER TRANSMISSION CASE TO THE LOWER CASE
WITH FOUR 4-40 x 3/8" SOCKET HEAD SCREWS AND TWO
4-40 x 3/8" BUTTON HEAD SCREWS.
4-40 x 3/8"
BUTTON HEAD
x 2
APPLY A SMALL AMOUNT
OF STEALTH LUBE
REAR TRANSMISSION ASSEMBLY, LOWER HALF:
1. ATTACH THE LOWER REAR TRANSMISSION HOUSING
TO THE REAR OF THE CHASSIS USING FOUR 4-40 x 3/8"
FLAT HEAD SCREWS.
2. TEMPORARILY SCREW THE 4-40 x 1/8" SET SCREWS INTO
THE REAR SUSPENSION MOUNT (FRONT) ON BOTH SIDES.
LATER IN THE CAR ASSEMBLY IT WILL BE NECESSARY TO
TIGHTEN THE SET SCREWS AGAINST THE HINGE PINS.
A SMALL AMOUNT OF THREAD LOCKING COMPOUND
WILL BE USED AT THAT TIME.
4-40 x 1/8"
SET SCREW
x 2
4-40 x 3/8"
FLAT HEAD
x 4
4-40 x 3/8"
FLAT HEAD
x 2
STEP 12
STEP 13
STEP 14
