4. Repeat the procedure if the device is fitted with two
ports.
5. Fit the fiber optic cable to the test adapter or close the
head cover.

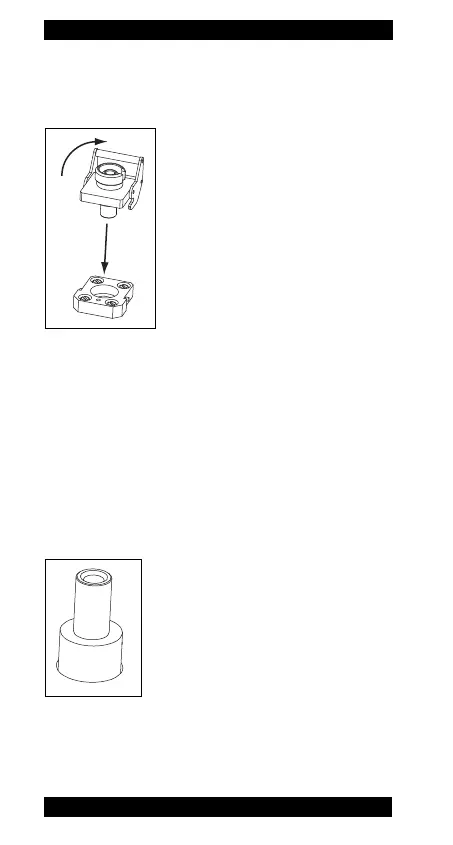

Fig. 5 Mounting the JAE test adapter
Establishing the VFL connection
(optional)
The Visual Fault Locator (VFL) is equipped with a
universal push pull adapter (UPP) for all standard
2.5 mm connector systems.
To establish a VFL connection:
Just plug the fiber equipped with a push pull connector
into the VFL push pull adapter until you feel a
resistance.
Fig. 6 VFL universal push pull adapter
