Jeanneau 53 - Page 131

127/154
119635
Index G

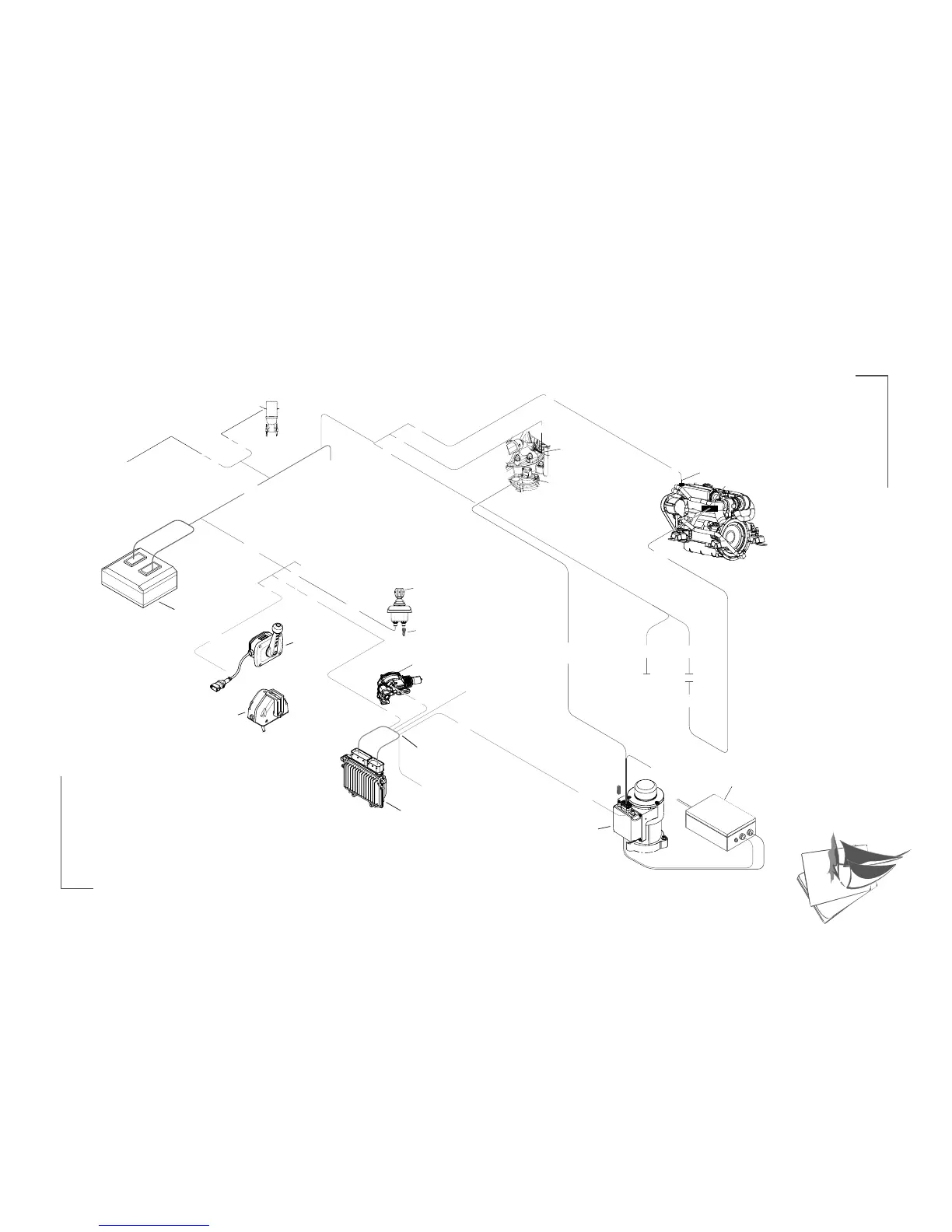

LAYOUT
10
A
X10 (only ZF)
Control head harness
Termination
resistor
Clutch actuator
X4
X1
X8
X8 (K-line only ZF)
Power
Power
Power
Power
X9
B
X4
Autopilot (no ZF)
Bow Thruster (no ZF)
X5
C
X3
X3
X3
X6
safety connector X6 normal
X2
X2
B
A
X5
X3
Main Harness VMU
T.C.U. Harness
V.M.U.
Termination
resistor
Filter box
RPM sensor
Angular steering sensor
RPM sensor adapter
Throttle acuator
Joystick
Side Mounting
Control head
Consolle Mounting Control head
T.C.U.
Steering motor
X7 - CAN Out
X7 - CAN Out
Throttle cable
Throttle cable
Throttle cable
X6 - CAN In
X6 - CAN In
CAN
Harness
or
Steering electrical
motor harness
ENGINE
