Jeanneau 53 - 360 Docking Circuit Protection; Lighted Safety Fuses

137/154
119635
Index G

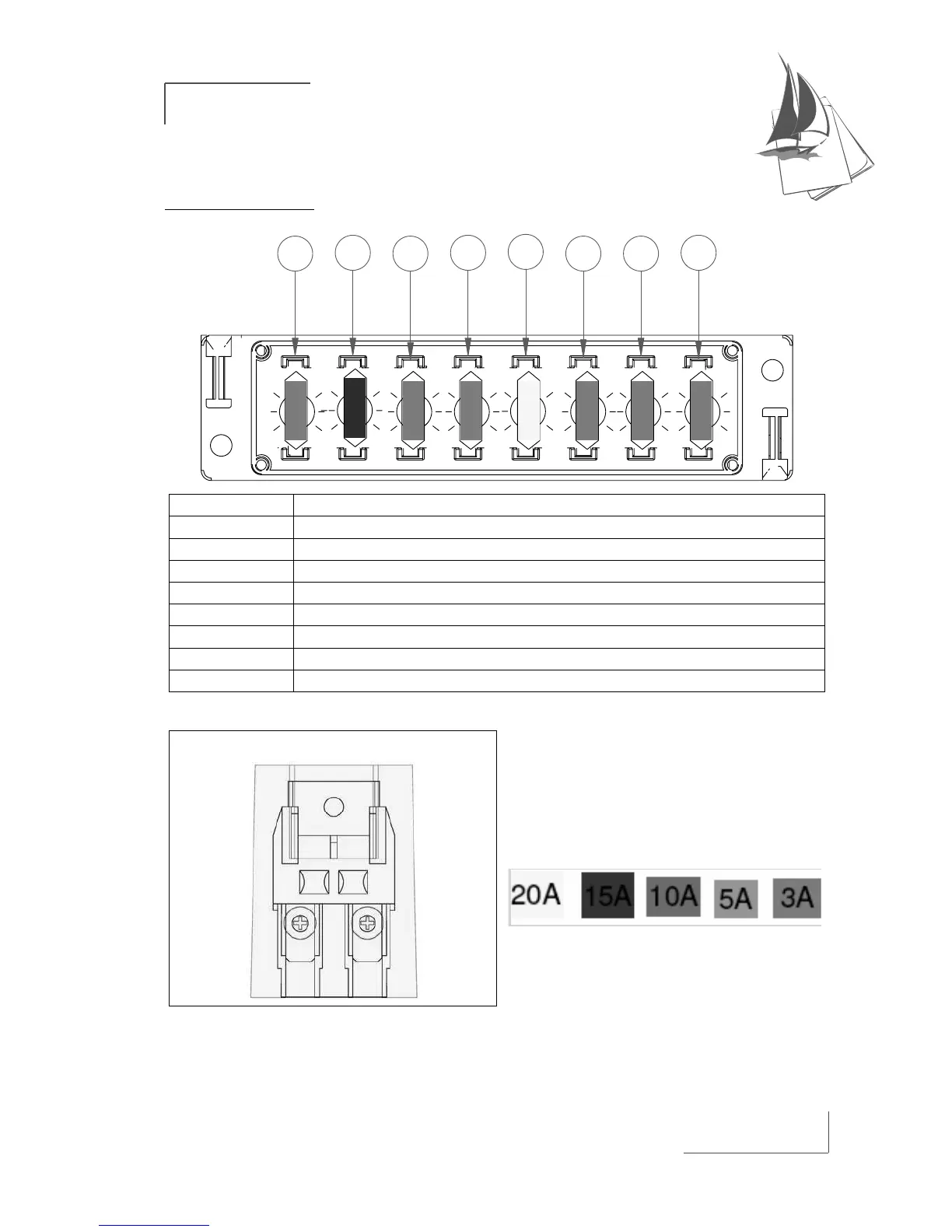

8. 360 Docking circuit protection
Lighted safety fuses
Reference Designation
1 Supply VHS 1 after engine contact
2 Supply VHS 2 after engine contact
3 VMU power supply VMU
4 VMU power supply TCU 1
5 VMU power supply TCU 2
6 Supply VMU after engine contact
7 Supply TCU after engine contact
8 Supply pod after engine contact
Motor supply 40A
NOTE: If a safety fuse illuminates, this
means that it is faulty. In this case the
safety fuse must be replaced with a
safety fuse of the same rating (see colour
codes below).
10
3A 3A 3A 3A
7.5A
3A 3A
20A
3
4
5
6 7
8
1
2
ENGINE
