- 36 -

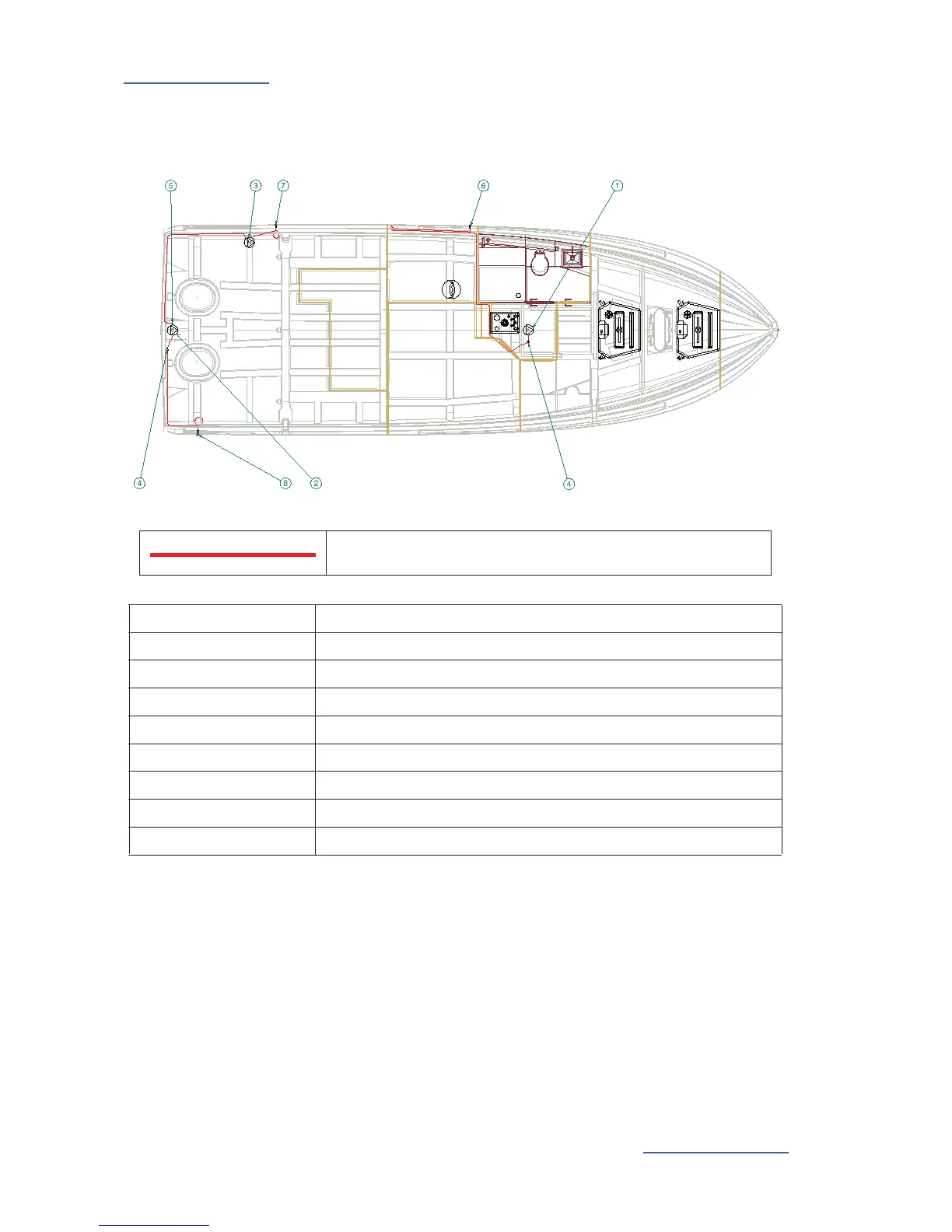

Diagram of the layout - Drying out the bilge
Pipe - Bilge pump system - Ø 25mm
Reference Designation
1 Forward electrical bilge pump
2 Aft electric bilge pump
3 Manual bilge pump
4 Non-return valve
5 Stuffing box
6 Thru-hull fitting
7 Thru-hull fitting
8 Thru-hull fitting
