- 44 -
6.6 EMERGENCY SYSTEMS IN CASE OF STEERING GEAR FAILURE
Instructions in the event of steering gear failure
In the event of damage to the helm preventing the boat from being steered with the wheel, it is
possible to align the bases manually to put them in line with the boat. Then steer the boat using
the control lever.

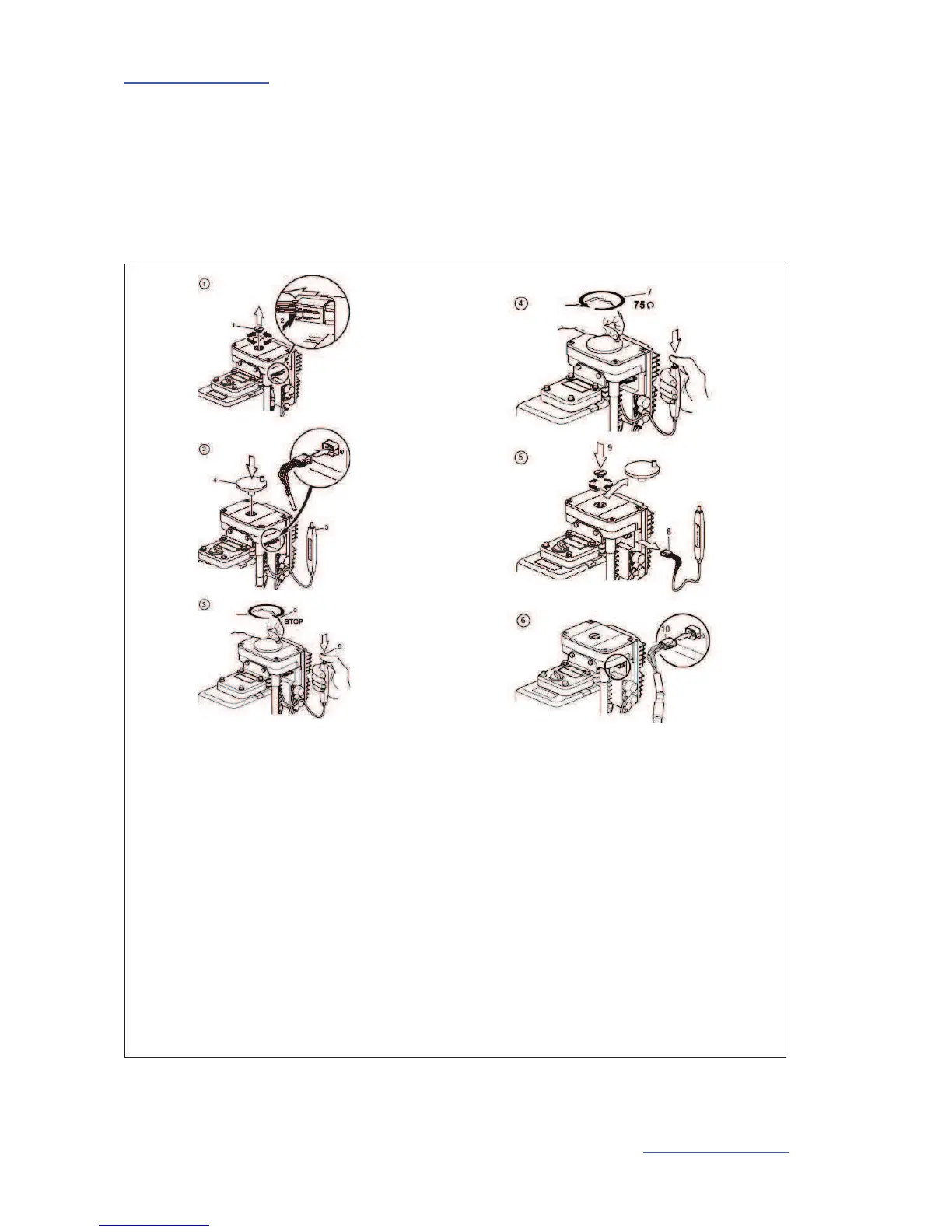

Procedure for aligning the motor bases manually:
Picture 1:
Remove the screw (Ref 1). Disconnect the cable (Ref 2).
Picture 2:
Connect the connector (Ref 3). Put the handle arm in position (Ref 4).
Picture 3:
Press the button (Ref 5) and keep it pressed whilst turning the handle arm (Ref 6) until it
comes to a stop. Do not force it once it has reached the stop.
Picture 4:
Turn the handle arm about 75 turns: The base is now aligned with the boat's axis.
Picture 5:
Remove the handle arm. Disconnect the connector (Ref 8). Put back ref 9 in place.
Picture 6:
Reconnect the cable (Ref 10).
