Jeanneau NC14 - Switches and Circuit Breakers

- 59 -

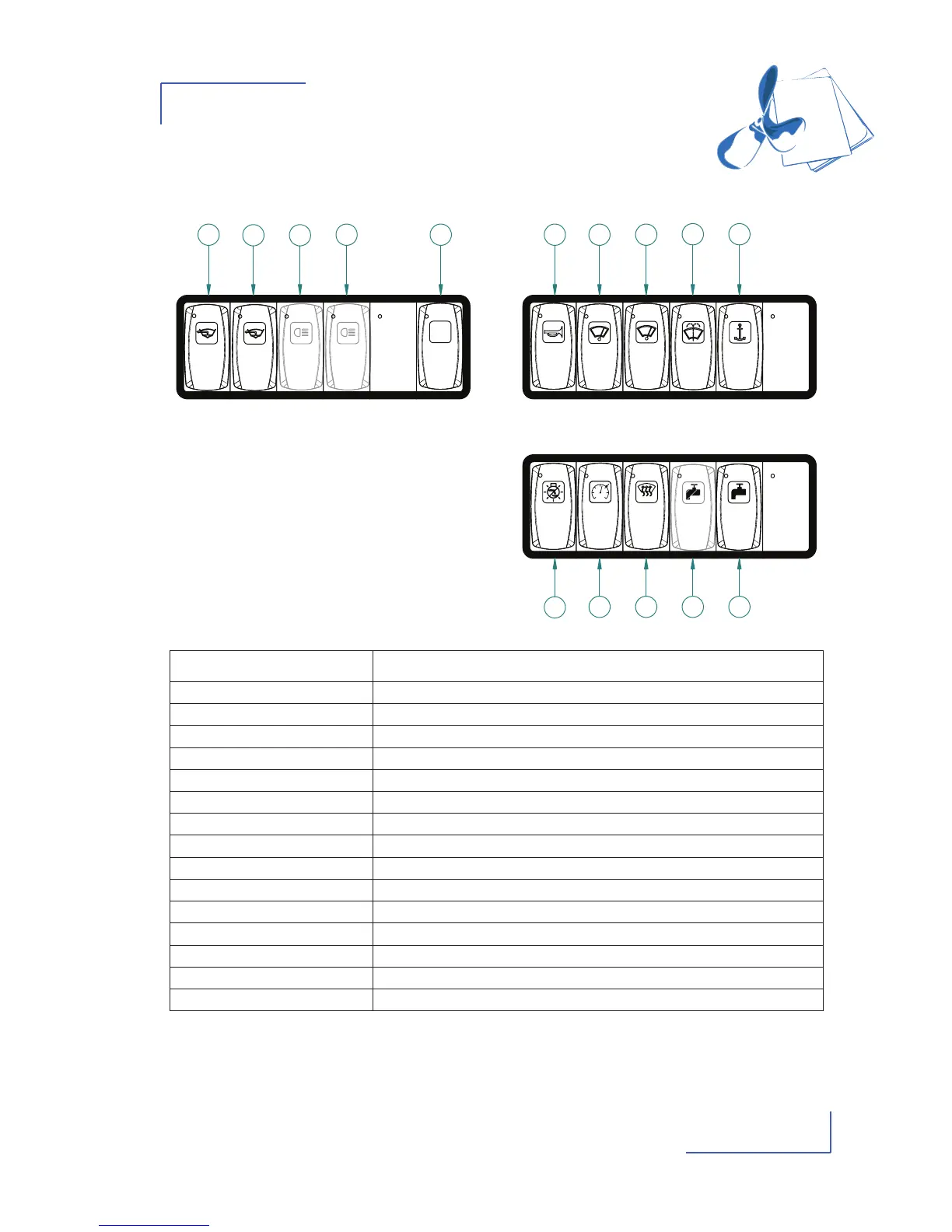

7.2.8 Switches / DC breakers
Location: Steering station
Reference Designation
1 Electric bilge pump (Engine compartment)
2 Electric bilge pump (Companionway)
3 Underwater projectors
4 Projector - Cockpit
5 Control - Battery coupling
6 Horn
7 Port windscreen wiper
8 Starboard windscreen wiper
9 Windscreen washer
10 Windlass
11 Navigation lights
12 Electronic
13 Demister
14 Deck wash pump
15 Water unit
7
BATT
PARL
1PS1
1PC1
2PC1
1RC1
1LC1
2ES1
1K1
1ES1
1LG1
2G2
1GE1
1DV1
1N1
2AN1
1PL1
1
2 3
4 5 6 7 8
9 10
11
12 13 14 15
DC INSTALLATION
