- 53 -

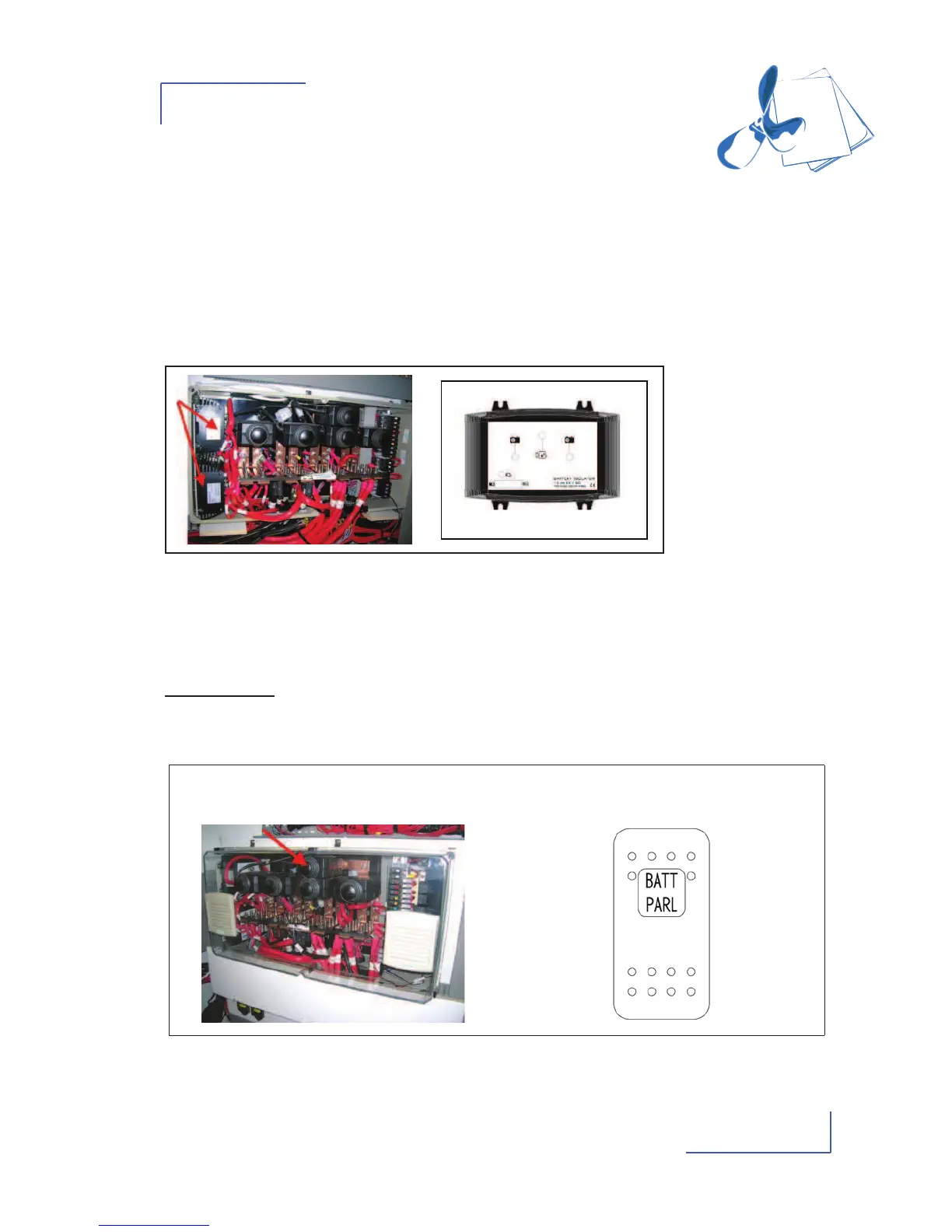

7.2.3 Power distributor
- The electronic charge dividers isolate the battery banks from each other and allow the
charge to be directed automatically to the battery with the lowest charge. They give the
advantage of preventing a drop in voltage.
- The charge divider is electronic. It is designed to distribute the charging current with a low
voltage drop between the battery banks (engine and service batteries). It prevents the current
from circulating from one battery to another. When the voltage of the charger or alternator is
available, the charge divider's green indicator comes on.
Location: Technical room
7.2.4 Connection of battery set
If one of the engine batteries is low on power, use the battery link function by actuating the
linking system.
Linking switch
Hold the switch down while starting the engine. Release the switch once the engines are
running.
Coupling battery switch
Location: Technical room
Control
Location: Steering station
7
DC INSTALLATION
