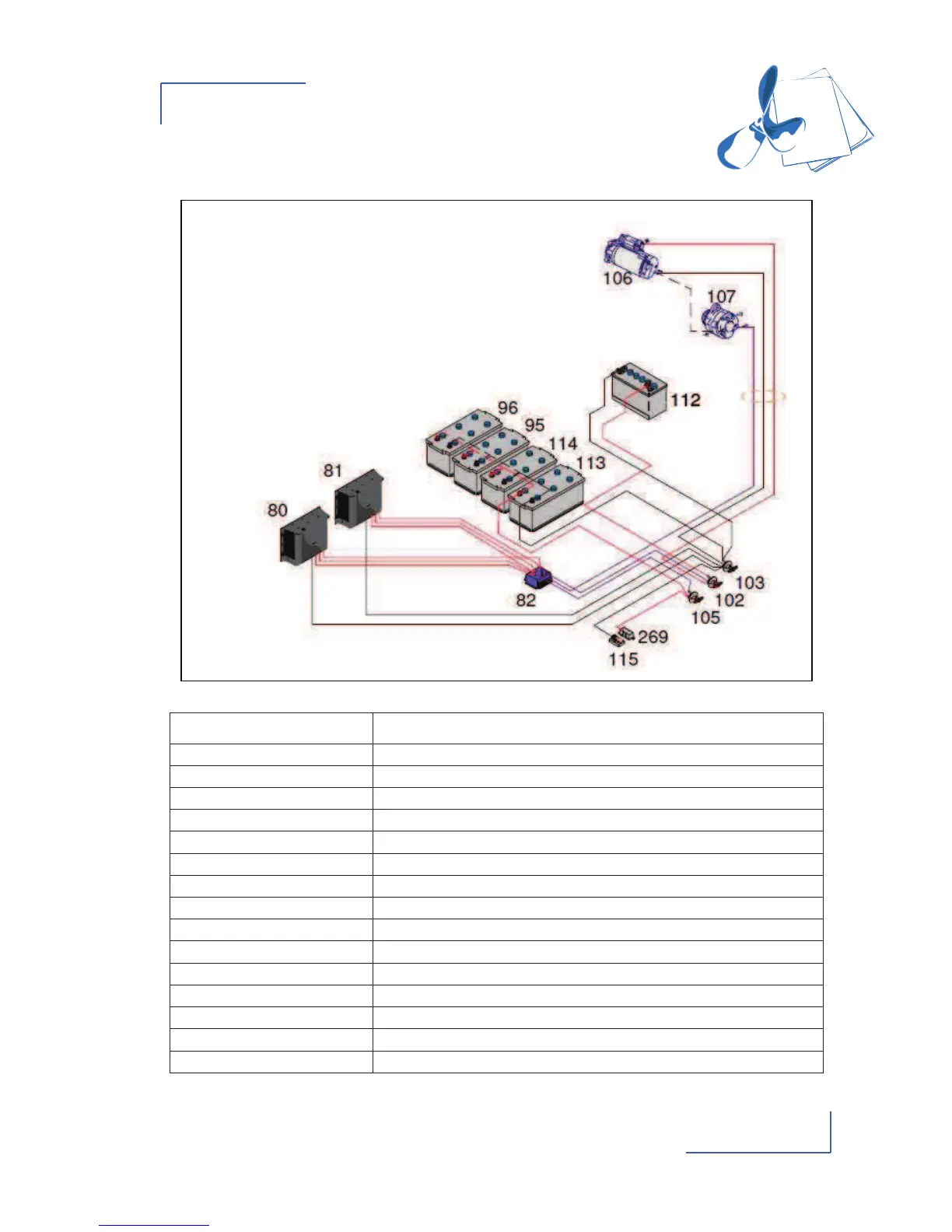

Layout diagram - Battery cables
Reference Designation
80 Battery charger
81 Battery charger (additional)
82 Power distributor
95 Spare service battery
96 Spare service battery
102 Engine battery's positive isolation switch
103 General negative battery isolation switch
105 Service batteries positive isolation switch
106 Alternator
107 Electric starter
112 Engine battery
113 Service battery
114 Service battery
115 Shunt (used to measure current)
269 General fuse for 12 V circuit
7
DC INSTALLATION
