Description of elements
7
-
+

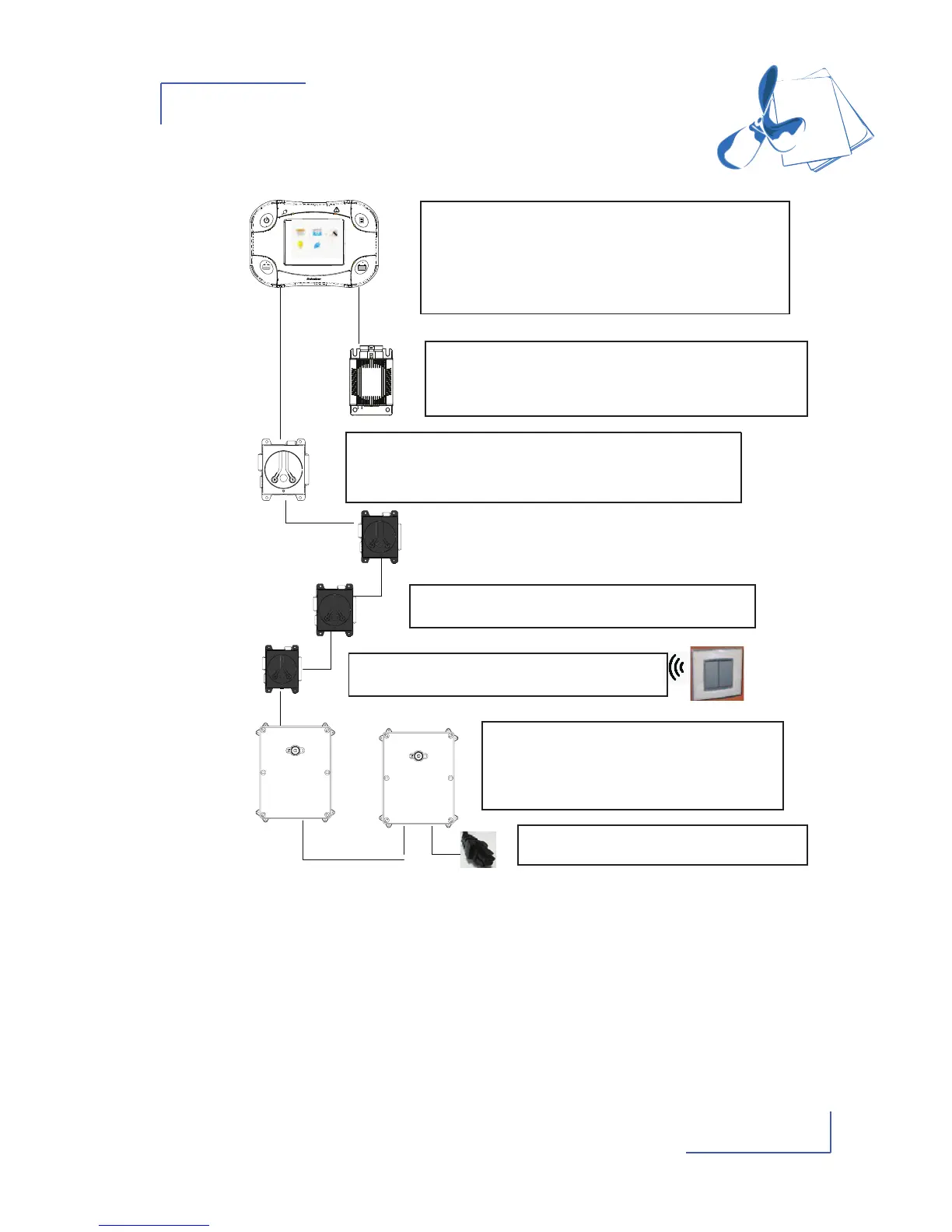

The touch screen allows the boat's auxiliary functions to be driven
and displayed:
• Lighting,
• Battery voltage,
• Fresh water gauge,
• Management of boat's AC supply sources.
The 'measurement' case is in interface that allows the display of the
water gauge, battery charge and discharge and the on-board battery
voltage (Engine, Service, Bow thruster). It is located in the electrical
cupboard.
The white lighting housing is the 'master' case. This is connected at the
front of the lighting cases. This allows the operation of lighting
controlled by the switches. It is located in the electrical cupboard.
The black lighting blocks are 'slave' cases. They are network
connected.
'PIEZO' type wireless lighting switches.
The source selectors allow the choice of on-board AC
supply. These AC shore/group switches are driven by
the touch screen. They are located in the engine
compartment.
Bus terminal, on final element.
