CDR7011 INSTALLATION

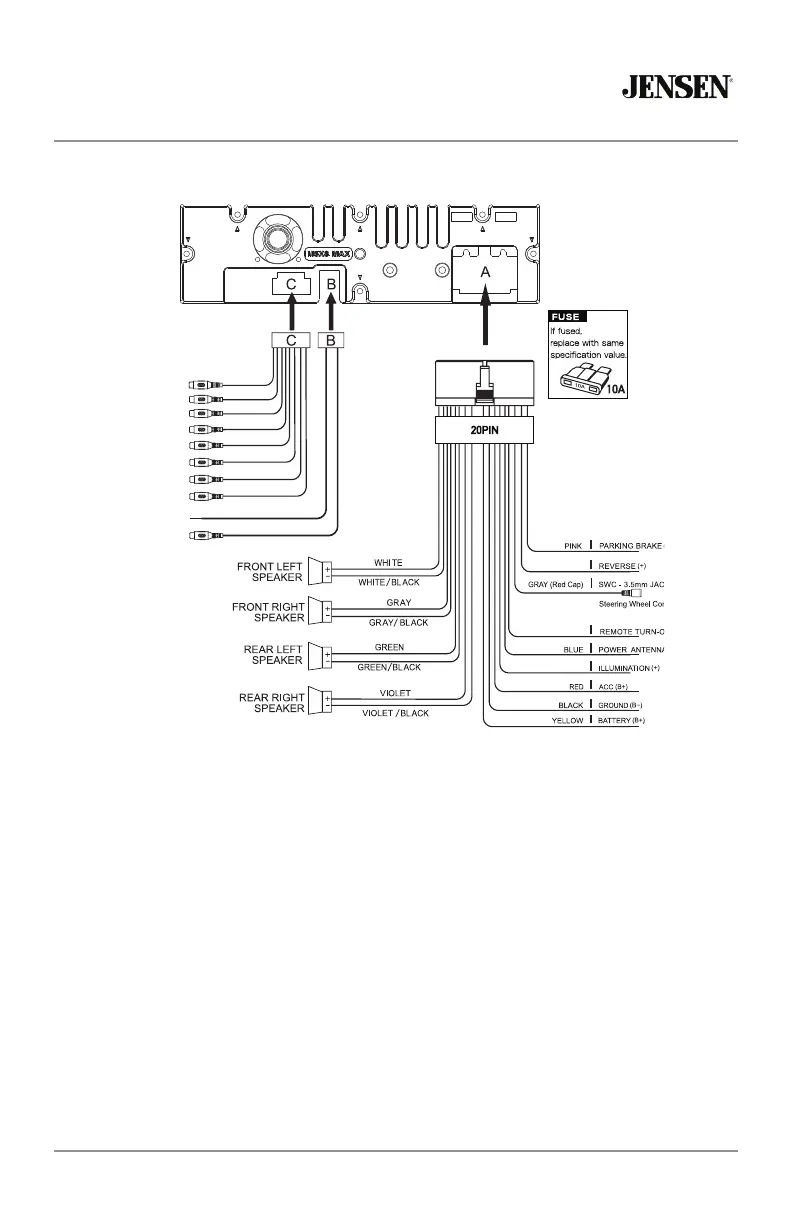

Wiring Diagram
Note:
When replacing a fuse, make sure to use the correct type and amperage. Using an incorrect fuse could
cause damage. The unit uses (1) 10 amp blade-type fuse located on the back of the unit.
Wiring Notes:
Subwoofer Output
The subwoofer preamp output (black jacket with green RCA) is active in all audio modes.
Rear camera input
A rear view camera (not included) can be used with the Camera input.
VIOLET/WHITE
BLUE/WHITE
ORANGE
(Compatible with most SWC Interfaces)
FRONT L CH (WHITE)
RADIO ANTENNA
CONNECTOR
EXTERNAL MICROPHONE
BROWN
FRONT R CH (RED)
BROWN
REAR L CH (WHITE)
GRAY
REAR R CH (RED)
GRAY
VIDEO OUTPUT (YELLOW)
GRAY
BACK-UP CAMERA INPUT (VIOLET)
BLACK
SUBWOOFER (GREEN)
SUBWOOFER (GREEN)
BLACK
BLACK
BLACK
BLACK
