Jensen CR271ML - Wiring and Technical Details; Input;Output Wiring Diagram; Installation Tips

5
CR271ML INSTALLATION
Tips
EN
Nyne ADS15
USB CHARGE
5V 1A
When replacing a fuse, make sure to use the correct type and amperage. Using
an incorrect fuse could cause damage. The unit uses (1) 10 amp ATC blade-type
fuse located on the back of the unit.
Front / Rear camera inputs
Up to two cameras (not included) can be used. We recommend JENSEN Part
# BUCAM200J for front camera and BUCAM300AJ or BUCAM400AJ for rear
camera.
For more information on how to install the SiriusXM Connect Vehicle tuner,
consult the installation guide included with the tuner (SiriusXM connect tuner and
subscription sold separately).

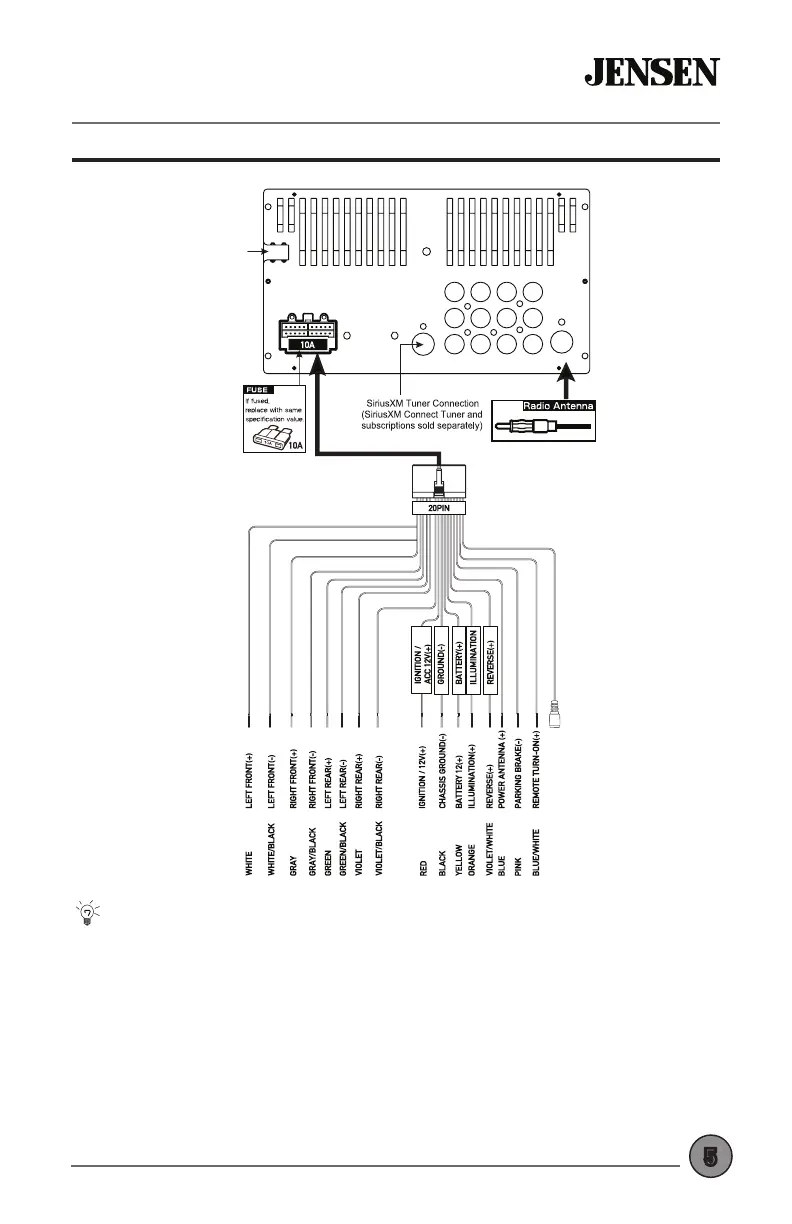

Input / Output Wiring Diagram
SWC INPUT
GR
AY/RED
FR OUT FL OUT V OUT SUB OUT
RR OUT RL OUT F-CAM SUB OUT
R-IN L-IN V-IN
R-CAM
ANT
SXM IN
External MIC Input
