Jensen JCD2010 User Manual

JCD2010
5

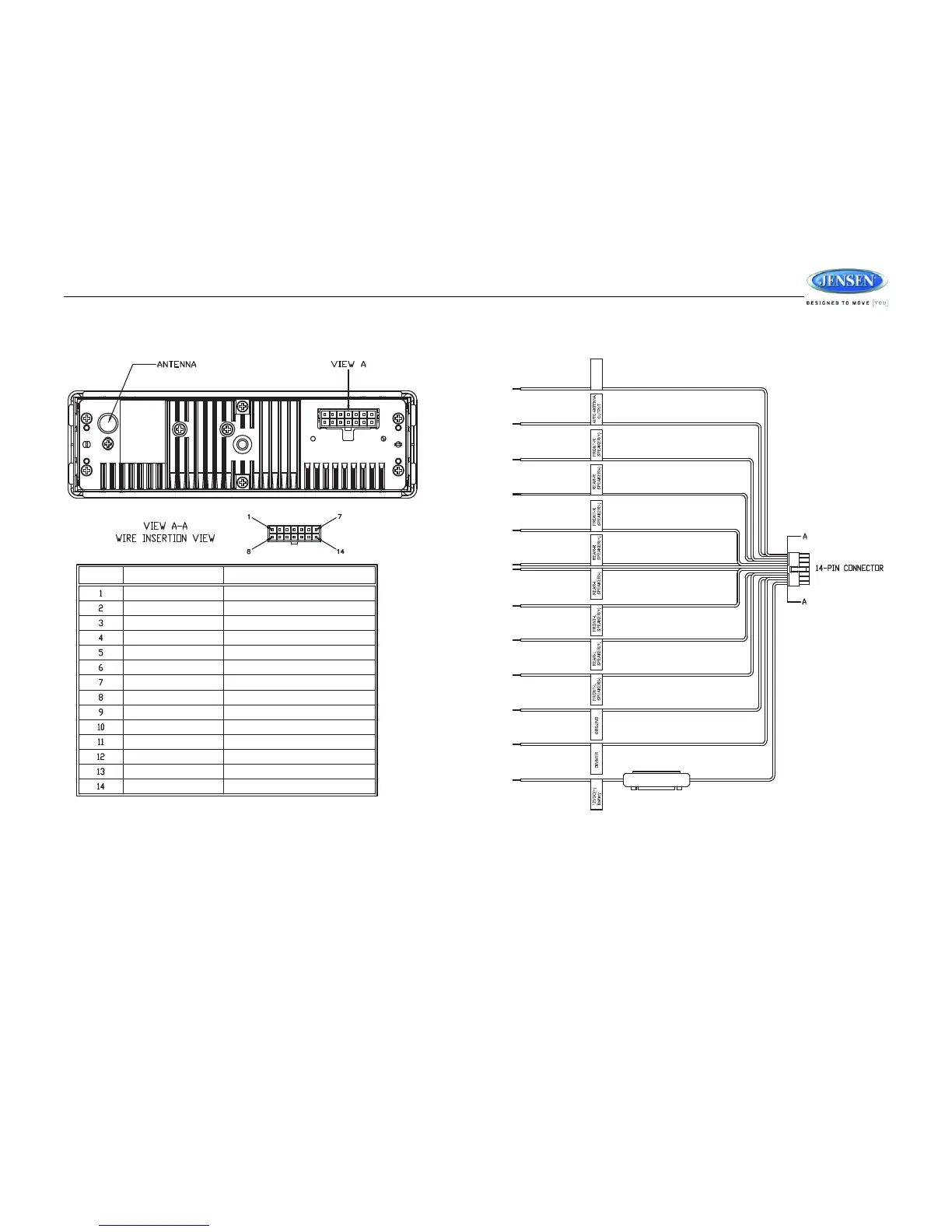

WIRING
+12VDC BATTERY (MEMORY)
GROUND
REAR LEFT SPEAKER (+)
REAR LEFT SPEAKER (-)
REAR RIGHT SPEAKER (+)
REAR RIGHT SPEAKER (-)
POWER ANTENNA
NO CONNECTION
ILLUMINATION/DIMMER
FRONT LEFT SPEAKER (-)
FRONT LEFT SPEAKER (+)
FRONT RIGHT SPEAKER (-)
FRONT RIGHT SPEAKER (+)
+12VDC SWITCHED (ACC)
YELLOW
BLACK
GREEN
GREEN/BLACK
PURPLE
PURPLE/BLACK
BLUE
EMPTY
ORANGE
WHITE/BLACK
WHITE
GRAY/BLACK
GRAY
RED
PIN NO. WIRE COLOR FUNCTION
+12V DC
SWITCHED
10 AMP FUSE

Jensen JCD2010 Specifications

General

Brand	Jensen
Model	JCD2010
Category	Car Receiver
Language	English
