Jensen JDC218BT - Wiring Diagram

3
JDC218BT INSTALLATION

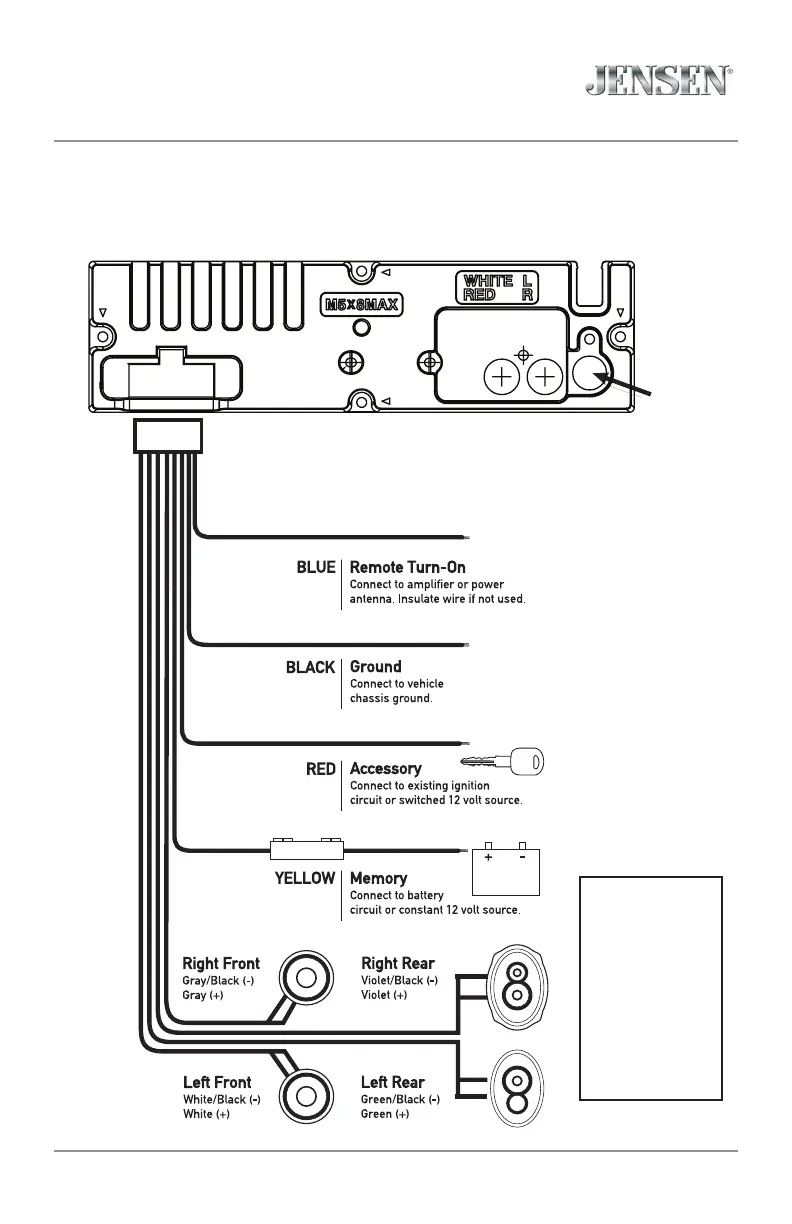

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The uses
one 10 amp ATM fuse
located beside the wiring
connector.
Antenna
Connector
10 AMP
AGC Fuse
JDC218BT
AGC
