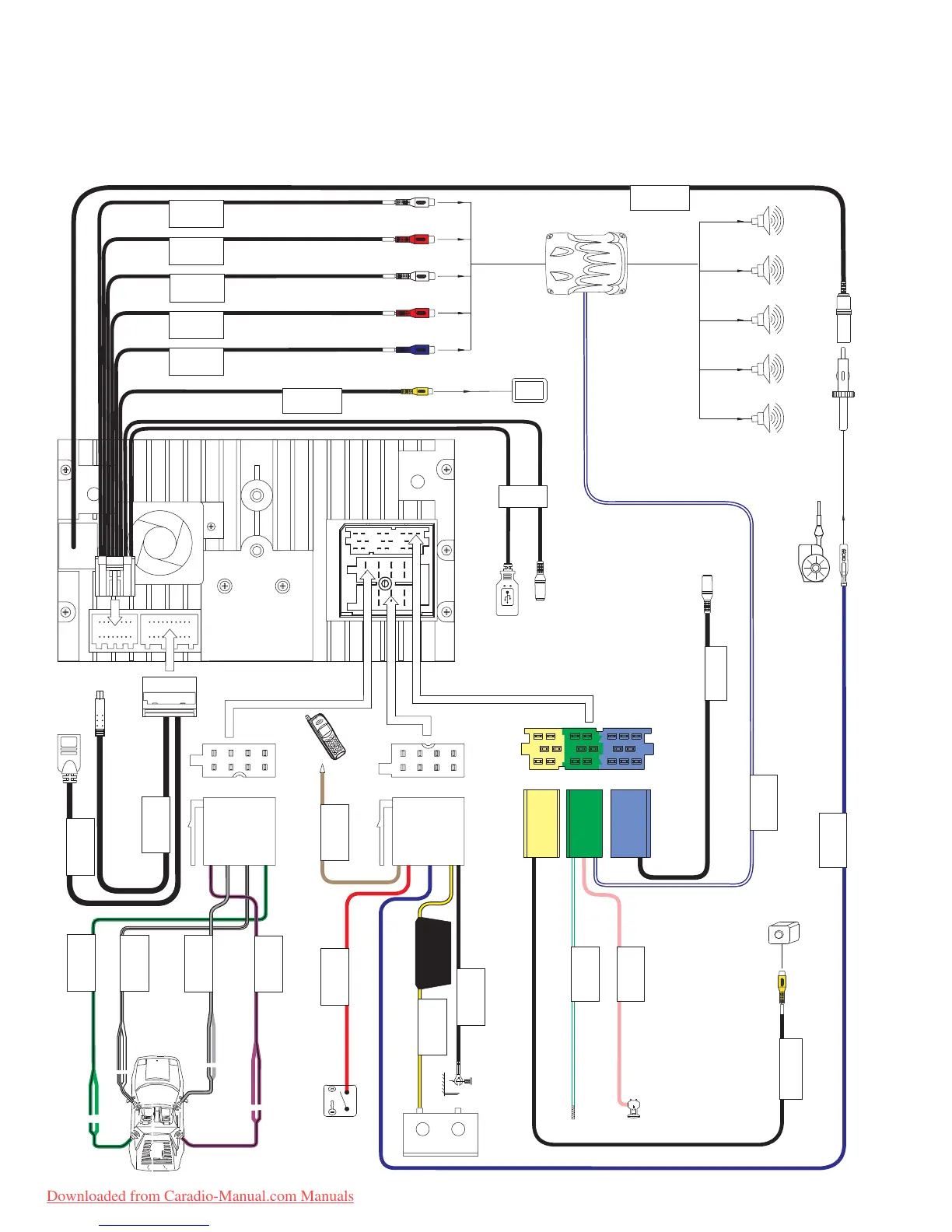

Wiring Diagram
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or
have the installation handled by an experienced technician.
Need Help? For technical assistance, call the Jensen customer support line at 1-800-323-4815.
GREEN(+) GREEN/BLACK(-)
WHITE(+)
WHITE/BLACK(-)
GREY(+)
GREY/BLACK(-)
PURPLE(+)
PURPLE/BLACK(-)
BATTERY
+
-
IGNITION SWITCH
RED
YELLOW
BLACK
BROWN
(-)
BROWN
(-)
Cell Phone
Cell Phone
GND
MUTE
BATT
ACC
REAR R
FRONT L
REAR L
FRONT R
FRONTR
FILTER/FUSE
(20A)
BLUE
GREEN
YELLOW
PINK (-)
BRAKE
BLUE/WHITE
BLUE
P.CONT
ANT.CONT
ANT.CONT
Steering Wheel Control
(SWC) requires
PAC
SWI-PS Interface Adapter,
Sold Separately
Rear View
Video Camera
YELLOW
External Power Amplifier
BLUE
BLUE
RED
WHITE
RED
WHITE
Antenna
YELLOW
Rear Video
Antenna Jack
FRONT L
FRONT R
REAR L
REAR R
SUBWOOFER
SUBWOOFER
VIDEO OUT
RADIO ANT
iPod
GREEN/WHITE (+)
GREEN/WHITE (+)
REVERSE
Auto antenna
control (connect
to antenna control
lead and power
supply of antenna
amplifier)
CAMERA-VIDEO
SWC
Bluetooth
Connector
(connect to
optional
BTM10)
BT BUS
NAV BUS
