Using
the
Cosmetic
Trim
Ring
~
TAB=+J
71J
/
DASHBOARD
,I
-""
"'"
Step 2
Step 1-c
Step
1-b
Install half-sleeve
in
the dashboard.
a.
Install adapter if necessary (optional).
b.
Install half-sleeve into adapter or dashboard (use only
the supplied screws).
Do
not force the sleeve into the
opening or cause it to bend or
bow.
WARNING! Only connect the unit to a 12-volt
power
supply with proper grounding.
c.
Locate the series
of
bend-tabs along the top, bottom
and sides
of
the mounting sleeve. With the sleeve fully
inserted into the dashboard opening, bend as many of
the tabs outward as necessary
so
that the sleeve is
firmly secured to the dashboard.
Use the M5 x 6 screws (provided) to install the mounting
brackets to each side of the radio using the holes indicated
in
the diagram. DO NOT USE OTHER SCREWS.
Place the radio
in
front of the dashboard opening so the
wiring can be brought through the mounting sleeve.
Complete wiring as illustrated
in
the wiring diagram. Once
the wiring is complete, reconnect the battery negative
terminal. If there
is
no ACC available, connect the ACC lead
to the power supply with a switch.
CAUTION! Be careful not to damage the
car
wiring.
After completing the wiring connections, turn the unit
on
to
confirm operation (ignition switch must be on). If unit does
not operate, recheck all wiring until problem is corrected.
Once proper operation
is
achieved, turn off the ignition
switch and proceed with final mounting of the chassis.
a.
Connect wiring adapter to existing wiring harness.
b.
Connect antenna lead.
c.
Carefully slide the radio into the half-sleeve, making
sure it
is
right-side-up. Use the supplied screws to at-
tach the radio to the half sleeve.
Two cosmetic trim rings are packaged with the head unit for
installation flexibility. This unit will fit into most import dashes
with little or
no
modification to the dash board/cavity. Some US
domestic vehicle dashes will accept a Double-DIN chassis, but
there is usually a small gap between the radio and dash piece af-
ter installation
is
complete.
In
this case, use the appropriate trim
ring
to
conceal any gaps that may be present.

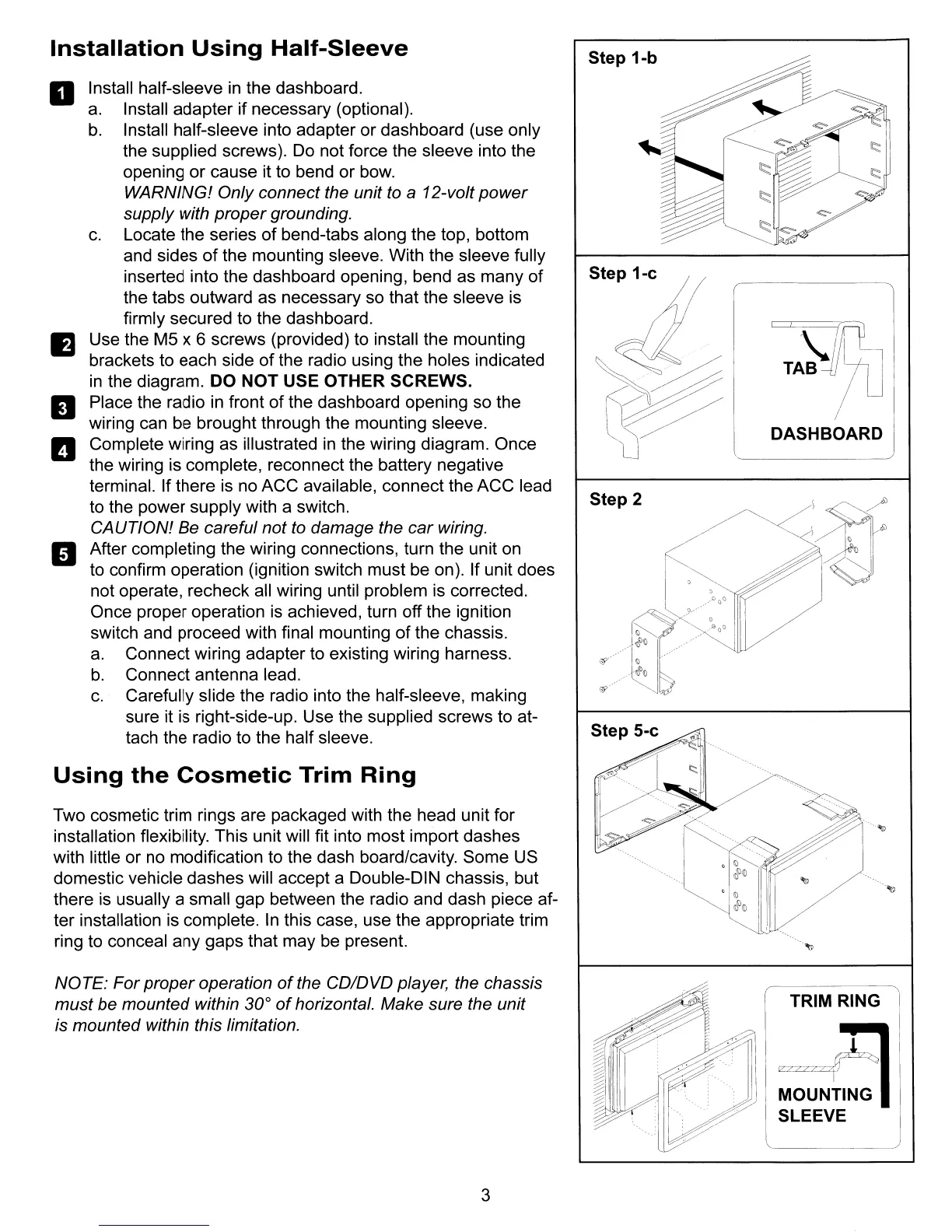

Installation
Using
Half-Sleeve
B
II
D
NOTE: For proper operation
of
the COIOVO player, the chassis
must
be mounted within 30°
of
horizontal. Make sure the unit
is
mounted within this limitation.
TRIM RING
~~~~~~G~I
SLEEVE
3
To Next Page
