Installation Using Half-Sleeve

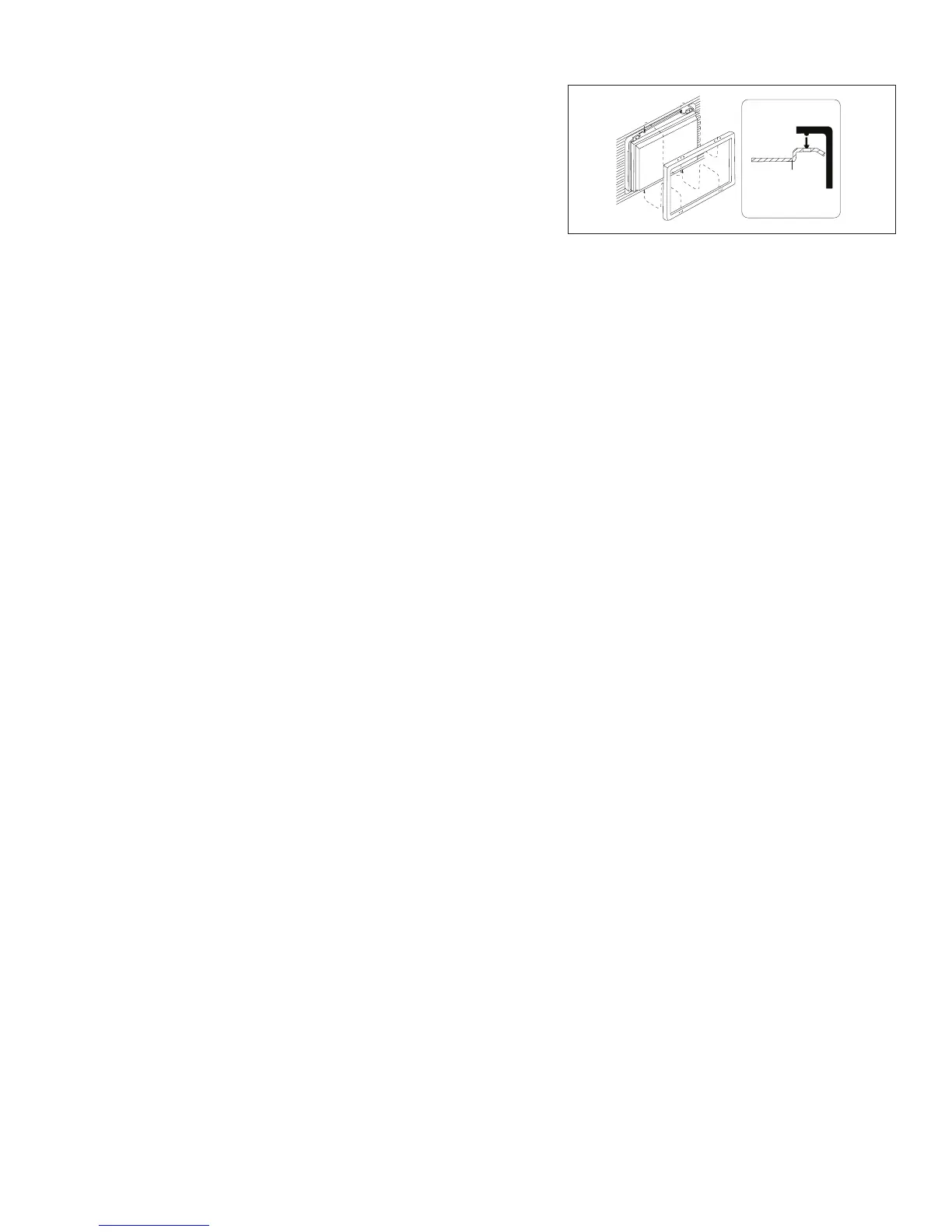

Using the Cosmetic Trim Ring
A cosmetic trim ring is packaged with the head unit for
installation exibility. This unit will t into most import dashes
with little or no modication to the dash board/cavity. Some
US domestic vehicle dashes will accept a Double-DIN chassis,
but there is usually a small gap between the radio and dash piece
after installation is complete. In this case, use the
trim ring to conceal any gaps that may be present.
NOTE: For proper operation of the CD/DVD player, the chassis
must be mounted within 30° of horizontal. Make sure the unit
is mounted within this limitation.
MOUNTING
SLEEVE
TRIM RING
To Next Page
