XA2125, XA275, XA250
5

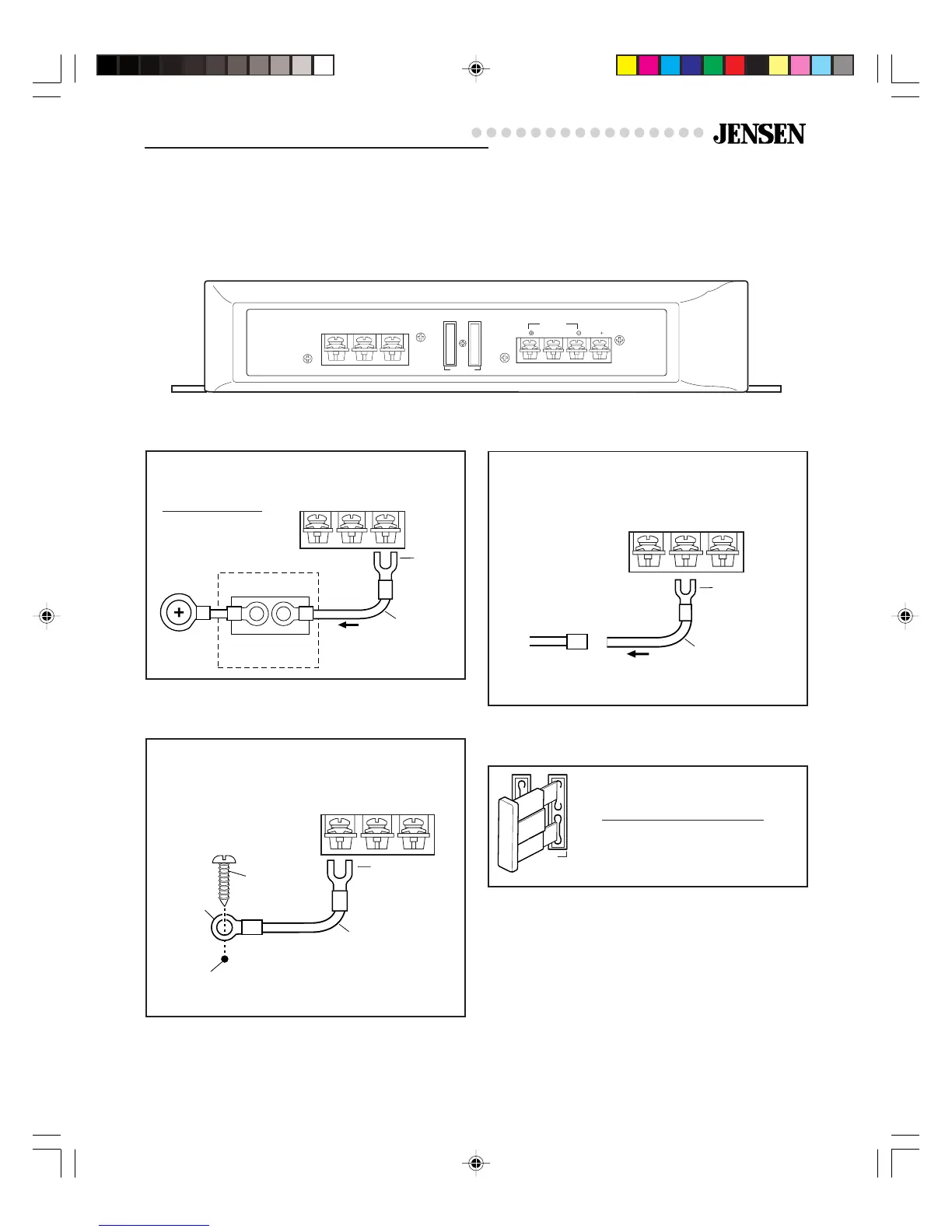

Wiring
Power
Remote Terminal (REM)
Power Terminal (+12V)
Connect directly to the vehicle battery+
terminal with 8 gauge wire (minimum).
Ground Terminal (GND)
Connect to a good chassis ground. The ground
connection should be to clean, unpainted metal
to provide a good electrical connection.
Connect the power antenna/amplifier turn-on
lead from the receiver to the AMPLIFIER
REMOTE terminal.
Use only blade-type fuses.
Fuses
Spade
Connector
8 Gauge
Wire
To Battery+
Terminal
Fuse or
Circuit Breaker
Battery
Terminal
Adapter
Install as close
to the battery
as possible
REM
GND
+ 12V
Drill 1/8" hole
in chassis
sheet metal
Sheet Metal
Screw
Spade
Connector
8 Gauge
Wire
REM
GND
+ 12V
To Receiver
Power
Antenna Lead
Spade
Connector
18 Gauge
Wire
REM
GND
+ 12V
RR
–
LL
BRIDGE
REM
GND
+ 12V
FUSE
FUSE
Fuse
XA2125 60 AMP
XA275 30 AMP
XA250 25 AMP
Fuse
XA2125 30 AMP x 2
XA275 30 AMP x 1
XA250 25 AMP x 1
6236 XA2CH_E.p65 5/7/01, 2:07 PM5
