Section 4 : Operation
4-22
5376000253
4.

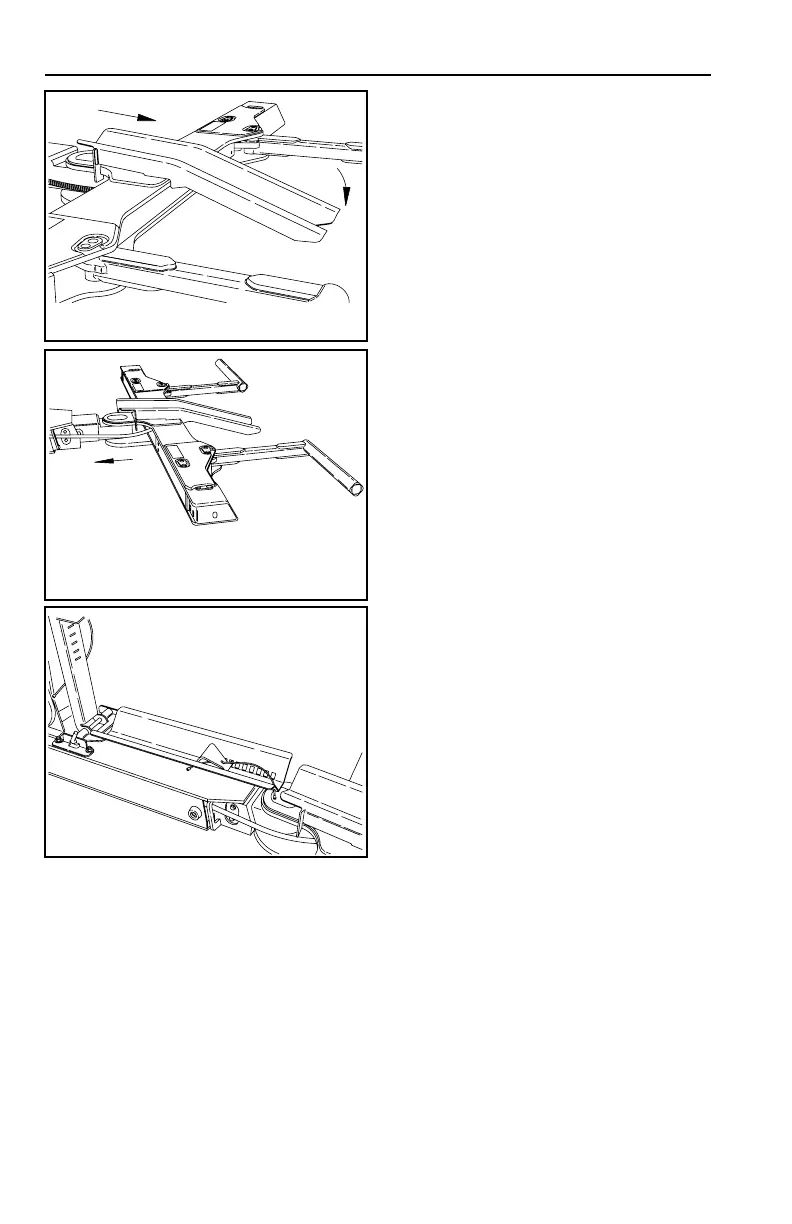

Hook the loading ramp onto the
wheel grid and engage the rear
hooks on the back side of the
grid.
5.
Completely retract the wheel
grid for loading.
6.
Attach the lower trough and
vertical stop into the mounting
bracket at the front of the boom
with the pin and retaining pin.
53
55
Table of Contents
Default Chapter
9
Table of Contents
9
Table of Contents
11
Section 1 - General Safety Practices
11
General
11
Pre-Operation
12
Operator Training and Knowledge
12
Electrical Hazards
12
Crush and Collision Hazards
14
Winch Cable / Falling Load Hazards
14
Uncontrolled Towed Load Hazards
16
Tip-Over Hazards
16
Fall Hazards
17
Chemical Hazards
17
Battery Hazards
18
Personal Protective Equipment
18
Weather Conditions
19
Vehicle Equipment Damage
19
Section 2 - Pre-Operation and Inspection
21
Pre-Operation Check and Inspection
21
Decals
22
Walk-Around Inspection
24
Operational Checks
27
Operational Check
27
Section 3 - Controls & Indicators
29
General
29
Function Wired Hand Controller (if Equipped)
30
Function Wireless Hand Controller (if Equipped)
31
Section 4 - Operation
33
Underlift Operation - Hydraulic Grids
34
Tie-Down Straps - Hydraulic Grids
39
Underlift Operation - Manual Grids
43
Tie-Down Straps - Manual Grid
49
Towball Hitch Attachment
51
Motorcycle Towing Adapter Operation (Optional)
53
Gooseneck Towball Towing Adapter Operation (Optional)
59
Gooseneck Fifth Wheel Towing Adapter Operation (Optional)
60
Recovery Winch Operation (Optional)
61
Grid Mounted Recovery Sheave Operation (Optional)
65
Section 5 - Emergency Procedures
69
Lowering of the Wrecker Boom
69
Raising/Lowering/Retracting/Folding/Tilting the Underlift Boom
70
Section 6 - Maintenance
73
Introduction
73
Maintenance and Lubrication
74
Oils and Greases
75
Wire Rope Handling and Inspection
77
Wire Rope Installation
79
Underlift Level Stop
82
Lubrication Charts
83
Lubrication Points
85
Trouble Shooting
87
Hydraulic System
87
P.t.o. Functioning Improperly
88
Hydraulic Pump
88
Winch Functioning Improperly
89
Remote Hand Controller
90
Section 7 - Specifications
91
Product Specifications
91
Mpl-Ng
91
Truck Chassis
93
Capacities
94
Inspection, Maintenance and Repair Log
95
Transfer of Ownership
97
