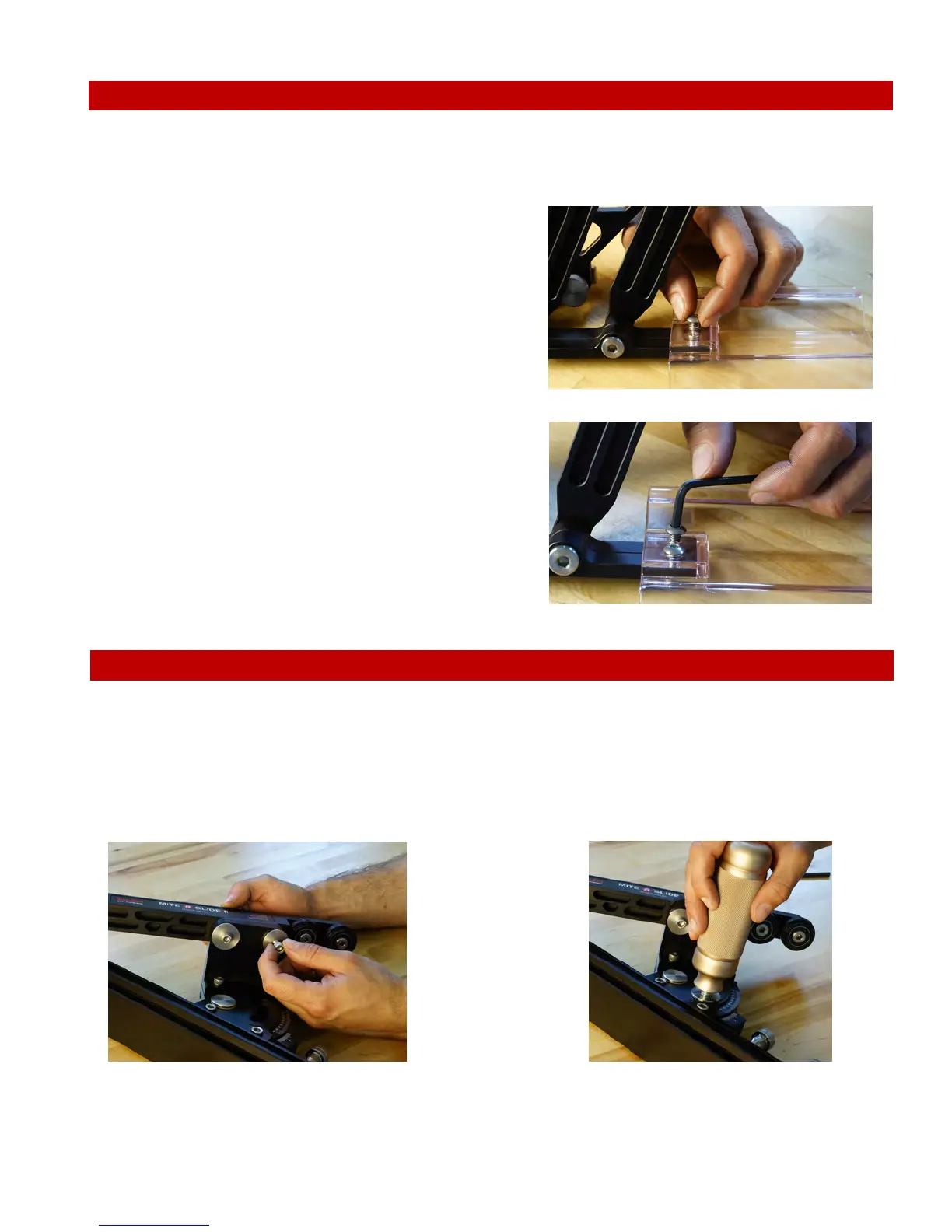

JessEm Tool MITE-R-SLIDE II - Attaching the Guard to the Guard Mount; Attaching the Roller Mount to the Gauge Assembly

The guard mount is preassembled in the factory for you. You will need only to attach the guard (Part #53) to the
guard shield mount. (Part #54)
STEP 3:
With two (2) of the the 10-24 x 3/8" stainless steel
button head cap screws (Part #53), attach the guard
(Part #54) to the guard mount (Part #55). See Figure 1.
FIGURE 1
STEP 5
:
FIGURE
2
With two (2) 1/4-20 x 1" stainless steel cap screws
(Part #8) and two (2) 1/4" stainless steel heavy
washers (Part #9), attach the roller mount to the
gauge assembly. Do not fully tighten. See Figure 3.
STEP 4:
Tighten the 10-24 x 3/8" stainless steel button head
screws (Part #53) with the 1/8" hex key provided. Do
not overtighten the plastic guard. See Figure 2.
ATTACHING THE ROLLER MOUNT TO THE GAUGE ASSEMBLY
STEP 6:
Slide the 3/8" Stainless Steel Washer, (Part #28)
onto the Gauge Handle (Part #27) and securely
snug the handle into the Mite-R-Slide II Gauge. See
Figure 4.
FIGURE
4
FIGURE
3
4
ATTACHING THE GUARD TO THE GUARD MOUNT
