Unpacking
Separate all parts from the packing material.
Check each part against the Contents of the
Shipping Container and make certain that all
items are accounted for before discarding any
packing material.
Report any damage to your distributor.
Contents of the Shipping Container
1 ea Sander Assembly (A)
1 ea Handwheel with Handle (B)
2 ea Trackers (C)
1 ea TUF Tool (D)
1 ea Abrasive Strip (wrapped on the drum)
1 ea Conveyor Belt (attached to the base)
1 ea Owner's Manual
1 ea Warranty Card
Hardware Bag (see Note)
4 ea 3/8”-16x5/8” Hex Cap Screws (E)
4 ea 3/8” Flat Washers (F)
Note: For attaching Sander to the optional Open
Stand
Optional Accessories
Optional Accessories are listed on page 23. To
purchase any of these accessories contact your
dealer.
Tools Required for Assembly
9/16" Wrench
No. 1 or No. 2 Cross Point Screwdriver
1/8" hex wrench
Assembly
10-20 Plus Sander
Attach the handwheel (B, Fig. 1) to the height
adjustment screw and tighten with a 1/8" hex
wrench.
Stand
1. If you purchased the optional 10-20 Stand
(A, Fig. 1), assemble it as described in the
manual included with the stand.
2. Mount the 10-20 Plus Sander on the stand
and secure with four 3/8”-16x5/8” Hex Cap
Screws and four 3/8” Flat Washers (Items
E, F, Contents of the Shipping Carton) and
tighten with a 9/16" wrench.

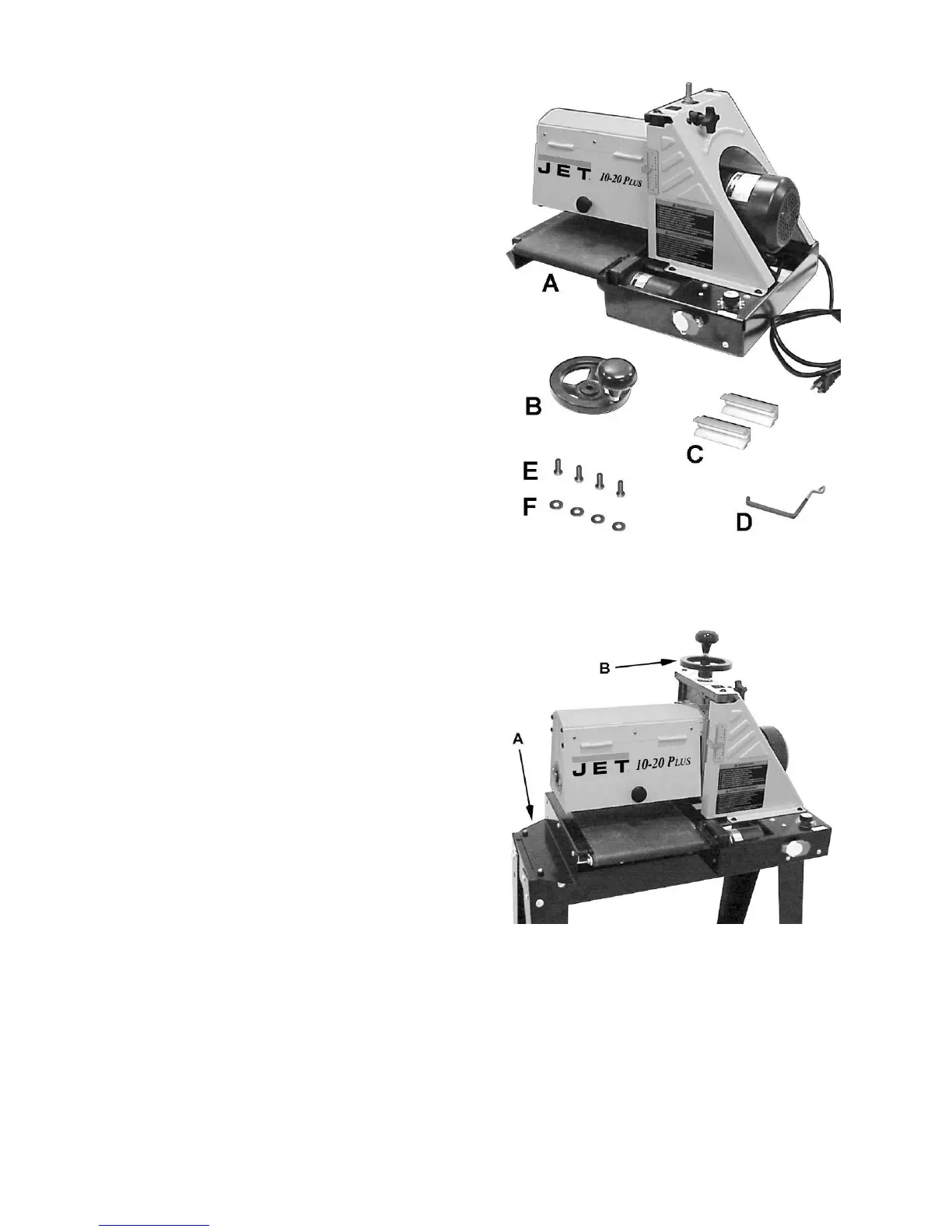

Contents of the Shipping Carton
Figure 1
Infeed/Outfeed Extension Tables
If you purchased the optional 10-20
Infeed/Outfeed Extension Table (not shown),
attach it to the 10-20 Plus Sander as described
in the manual that was included with the
extension tables.
