4.1 Spindle nose mounting:

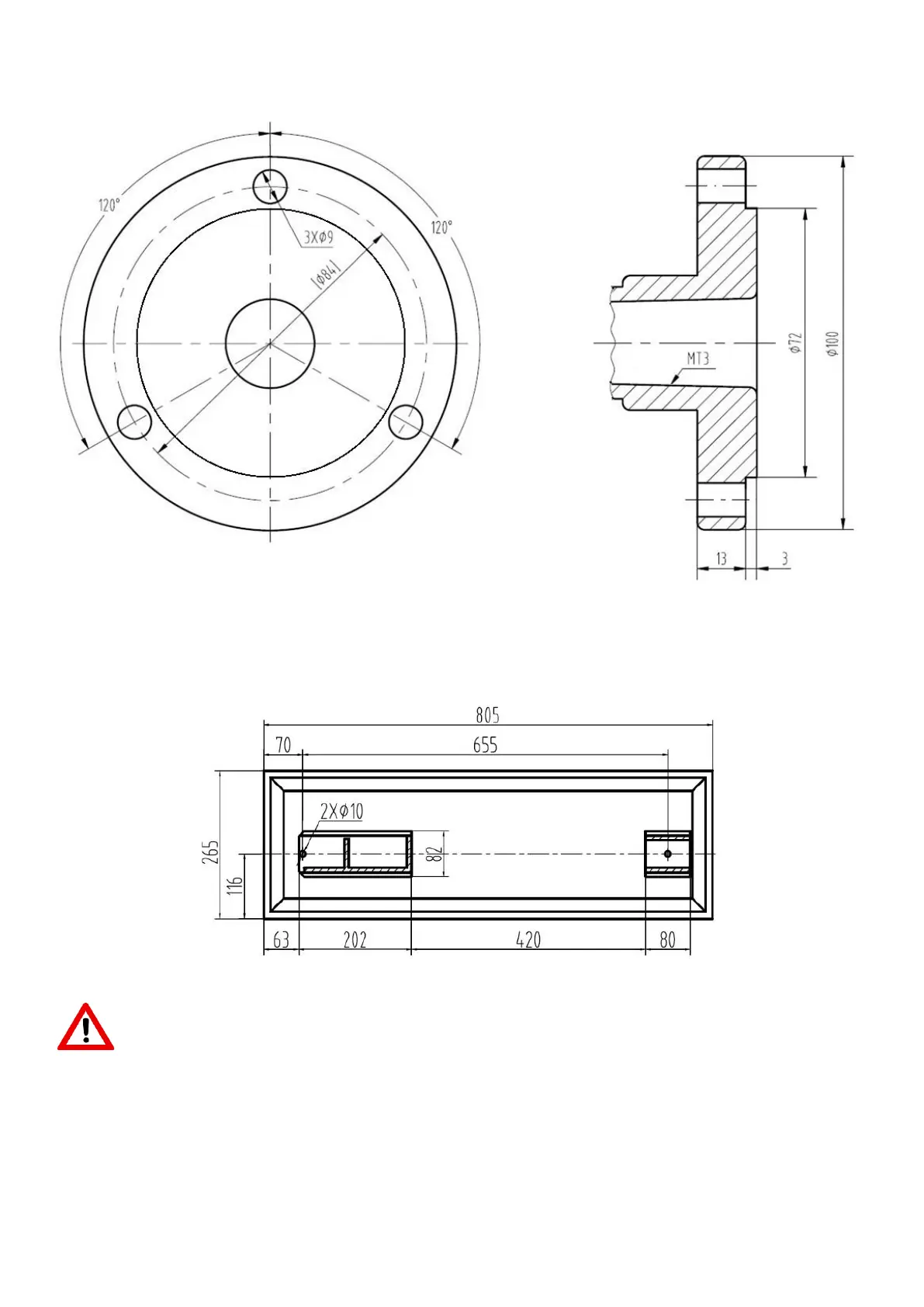

Figure 4-1: Spindle nose mounting
4.2 Anchor bolt hole pattern:
Figure 4-2: Lathe Bed anchor bolt pattern
WARNING:
To avoid tipping, the machine must be bolted down with two anchor bolts (not provided).
