Jet BD-8VS - 5 Machine Description

9

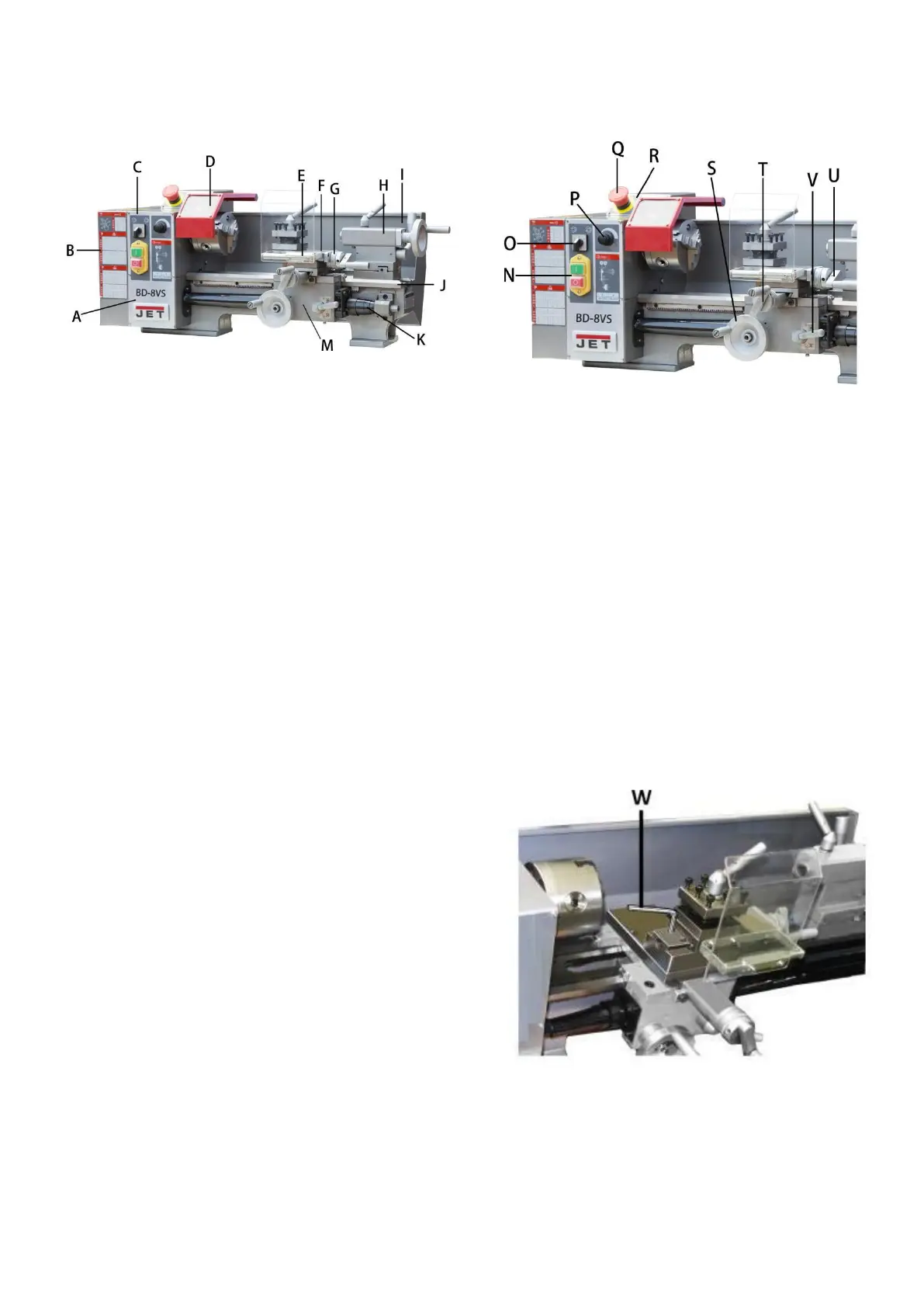

5.0 Machine Description
Figure 5-1: Machine description
A ............................................. Change gear quadrant
B ...............................................................Pulley cover
C ................................................................. Headstock
D ............................................ Chuck and chuck guard
E ................................... Tool post and tool post guard
F .................................................................... Top slide
G ........................................................... Carriage Lock
H ................................................................... Tailstock
I ............................................................. Splash guard
J .................................................................. Lathe bed
K ................................................................ Lead screw
L .................................................................... Chip tray
M ...................................................................... Apron
Figure 5-2: Machine description
N ............................................. Spindle power ON/OFF
O .......................................... Spindle forward/reverse
P ...................................... Variable speed select knob
Q ........................................................Emergency Stop
R ................................................ Spindle speed display
S .................................................... Apron hand wheel
T ............................................. Cross slide hand wheel
U ............................................... Top slide hand wheel
V ........................................................... Half-nut lever
W ..................................... Top slide taper adjustment
Figure 5-3 Machine description
