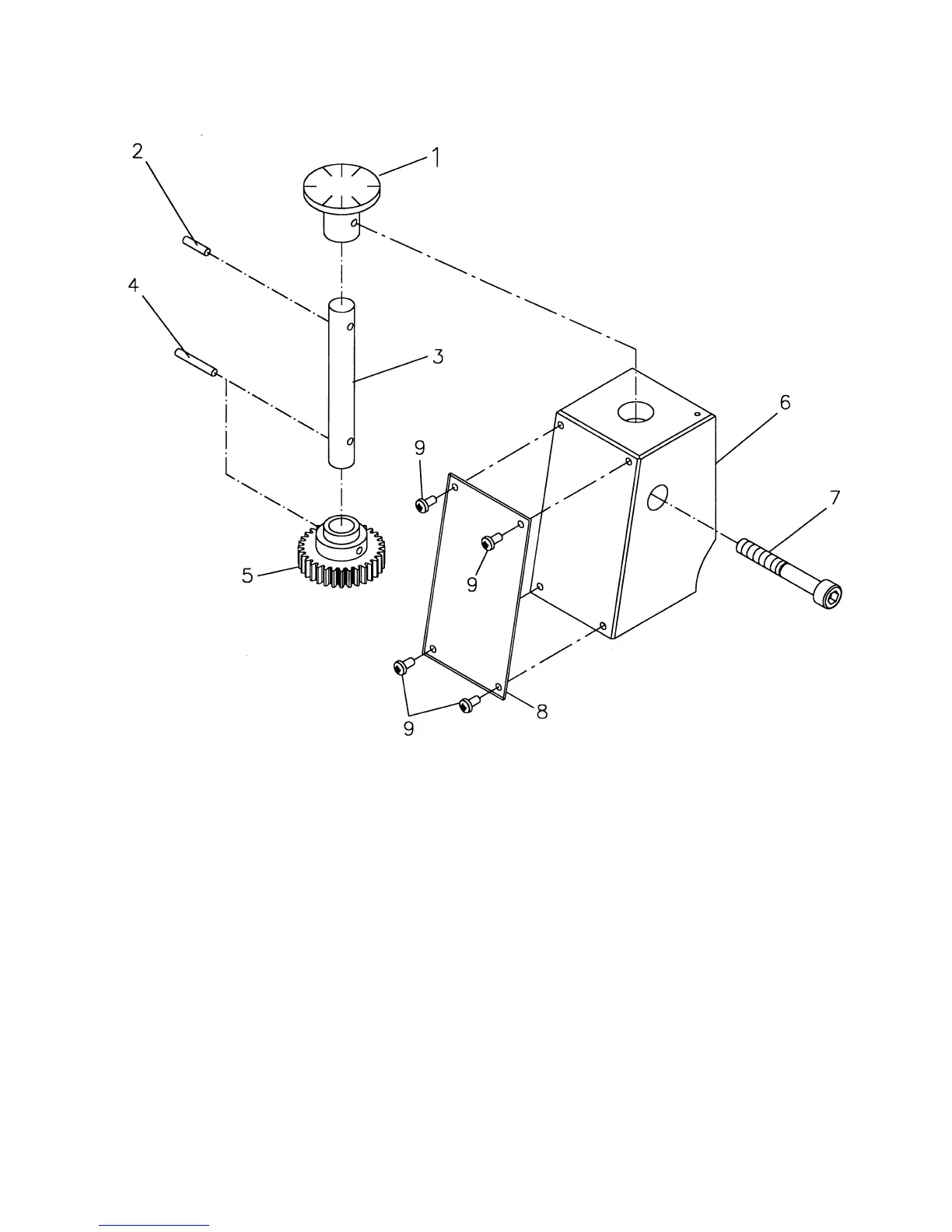

Thread Dial Assembly
Thread Dial Assembly
Index Part
No. No. Description Size Quantity
1..........06-22........................................Dial........................................... ...................................1
2..........GB879-3X12.............................Pin............................................3x12............................1
3..........06-23........................................Shaft......................................... ...................................1
4..........GB879-3X20.............................Pin............................................3x20............................1
5..........06-25........................................Gear .........................................32T.............................1
6..........06-24........................................Body......................................... ...................................1
7..........TS-1503101..............................Hex Socket Cap Screw .............M6x45.........................1
8..........GHW-06-02...............................Name Plate............................... ...................................1
9..........GHW-TD09...............................Pan Head Machine Screw.........M3x6...........................4
10........GHW-TD10...............................Rivet.........................................2x4 .............................1
............GHW-TD-CA.............................Threading Dial Assembly .......... ...................................1
