7.0 Unpacking
Open shipping container and check for shipping
damage. Report any damage immediately to your
distributor and shipping agent. Do not discard any
shipping material until the Lathe is assembled and
running properly.
Compare the contents of your container with the
following parts list to make sure all parts are intact.
Missing parts, if any, should be reported to your
distributor. Read the instruction manual thoroughly
for assembly, maintenance and safety instructions.
7.1 Contents of shipping container
1 Lathe
1 Steady Rest (mounted on Lathe)
1 Follow Rest (mounted on Lathe)
1 10” Three Jaw Chuck (mounted on Lathe)
1 Face Plate (12” Face Plate for 14” & 16”
lathes; 16” Face Plate for 18” & 22” lathes)
1 Tool Box containing:
1 Open End Wrench Set
1 Hex Wrench Set
1 Morse Reduction Sleeve
1 Center
6 Leveling Bolts with Hex Nuts
2 Hex Screws with Washers
6 Leveling Pads
1 Flat Blade Screwdriver
1 Cross Point Screwdriver
1 Chuck Wrench
1 Cam Wrench
1 Adjustable Wrench
1 Round Nut Wrench
1 Oil Gun
1 Cross Feed Handle (not shown)
2 Shear Pins
1 Paint Can
4 Tool Holder
3 Sliding Sleeve（for 14” lathes ）
1 Indicate Bulb
1 Key for Cam Locks
1 Gear
1 Gap Bridge Pin Driver
1 Live Center (MT4 for 14” & 16” lathes;
MT5 for 18” & 22” lathes)
1 Operating Instructions Manual
1 Parts List Manual
1 Test Record
1 Warranty Card

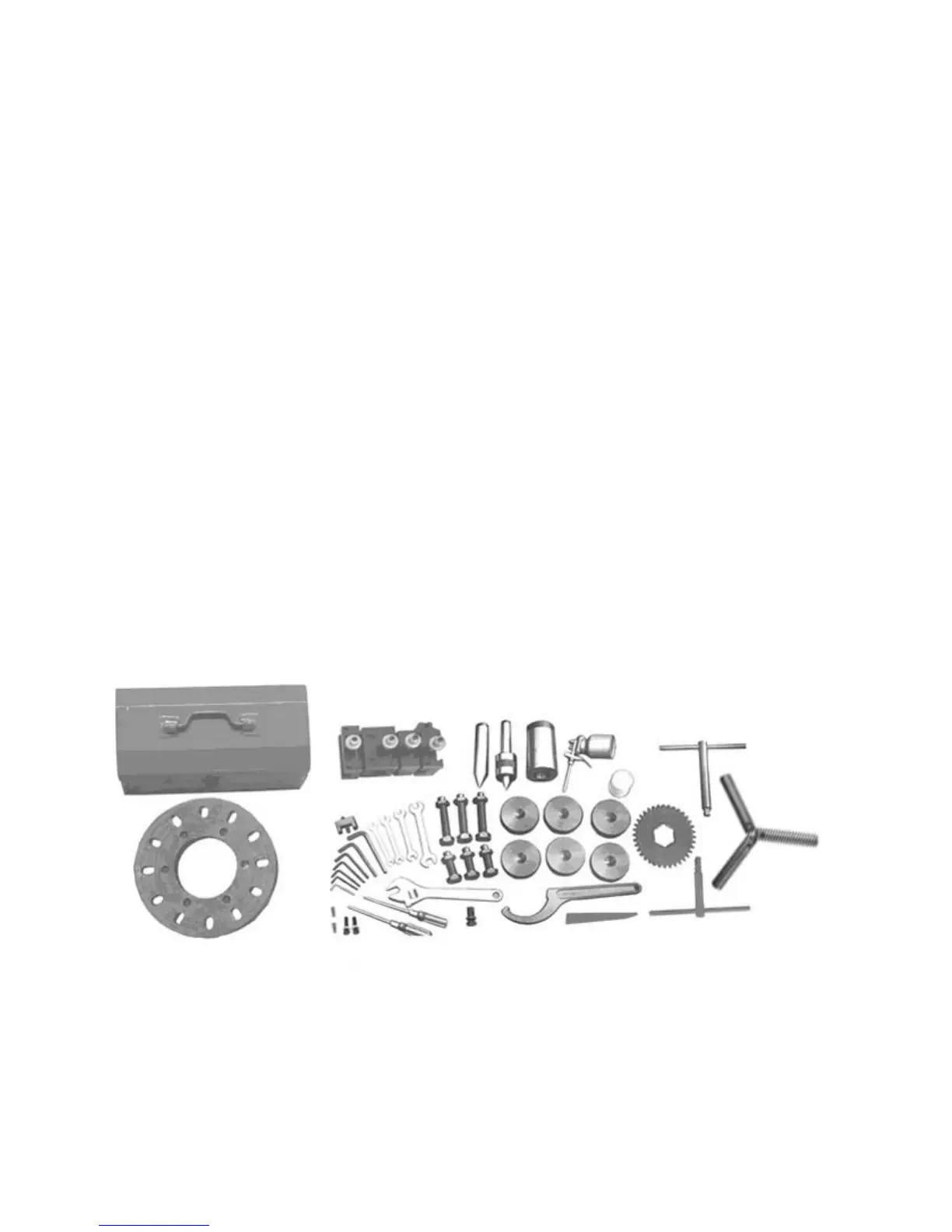

Figure 3 - Contents of tool box
