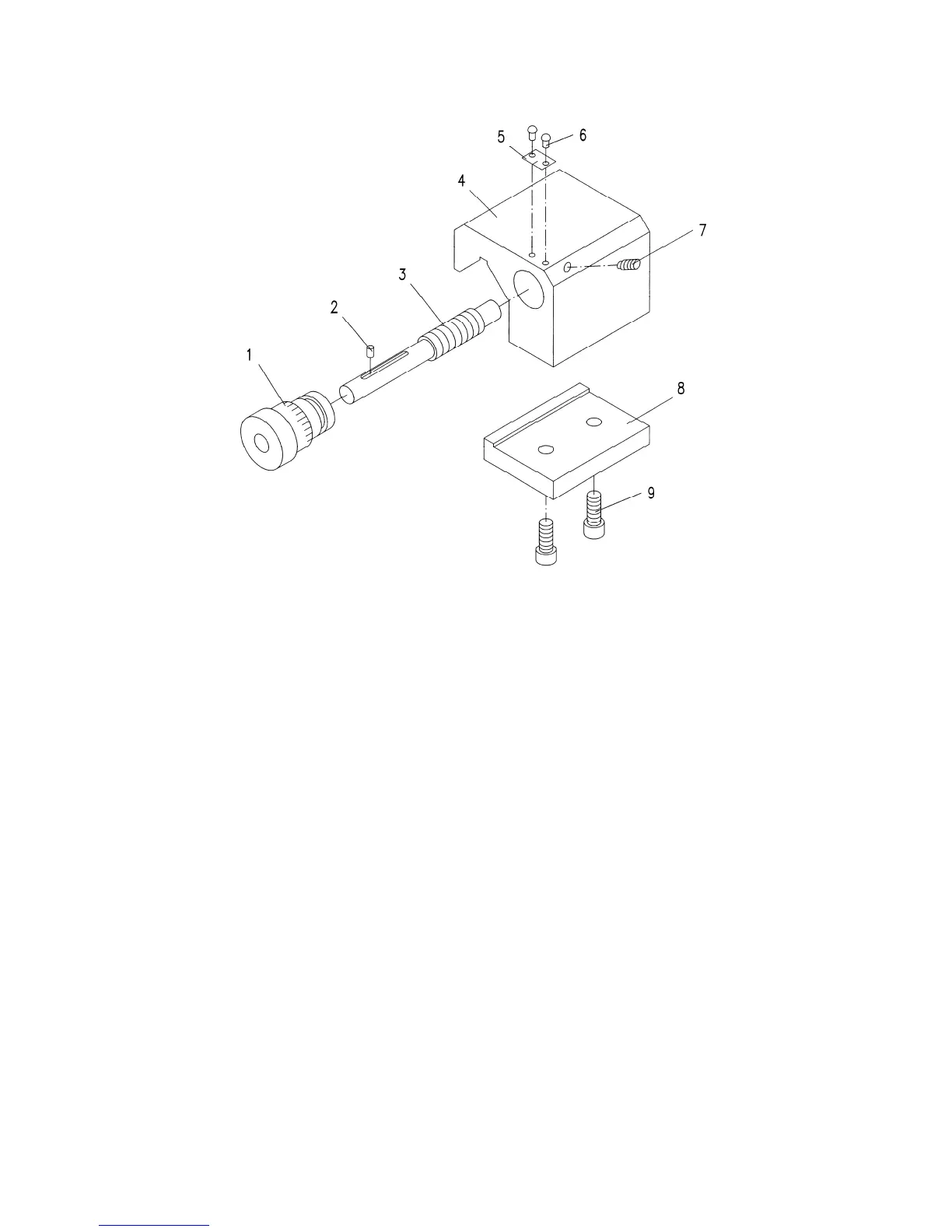

17.1 Micro Carriage Stop – Exploded View

17.2 Micro Carriage Stop – Parts List

Index No Part No Description Size Qty

1 .......... ZX-09709 ...................... Dial ....................................................................... .................................... 1

2 .......... ZX-MS2 ......................... Pin ........................................................................ B4x8 ............................ 1

3 .......... ZX-09708 ...................... Axle ...................................................................... .................................... 1

4 .......... ZX-09105-G .................. Stop ...................................................................... .................................... 1

5 .......... ZX-03302 ...................... Sign Plate ............................................................. .................................... 1

6 .......... ZX-MS6 ......................... Nail ....................................................................... 3x8 mm ....................... 2

7 .......... ZX-MS7 ......................... Hex Socket Set Screw ......................................... M6x12 ......................... 1

8 .......... ZX-09106 ...................... Clamping Plate ..................................................... .................................... 1

9 .......... ZX-MS9 ......................... Hex Socket Cap Screw ........................................ M8x20 ......................... 2
