64

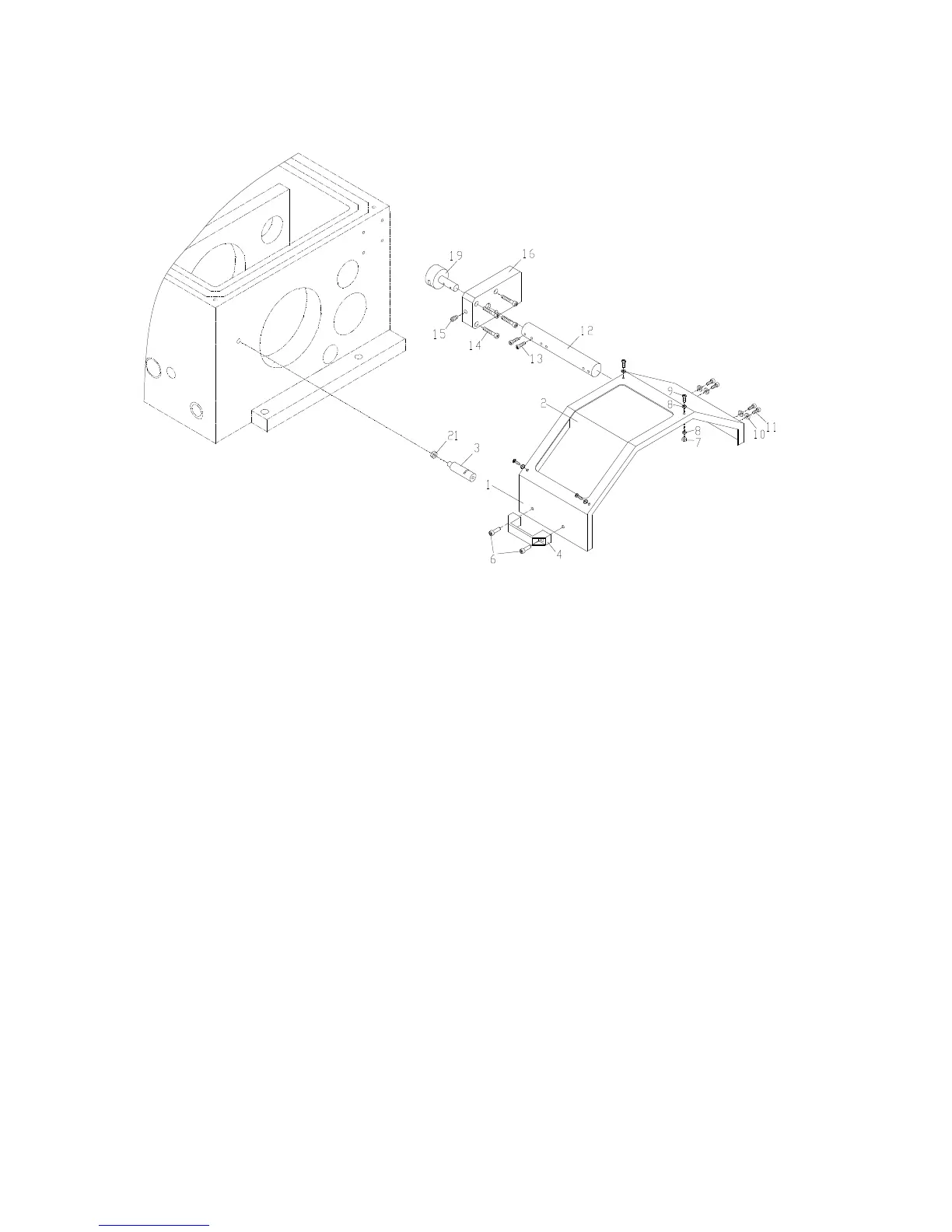

29.1 Safety Guard Cover – Exploded View
29.2 Safety Guard Cover – Parts List
Index No Part No Description Size Qty
1 .......... ZX19701E-G ................. Protection guard ................................................... .................................... 1
2 .......... ZX19501E ..................... Protection guard visual glass ............................... .................................... 1
3 .......... ZX19704E ..................... Fixing rod ............................................................. .................................... 1
4 ......... ZXS04E.......................... Handle (serial #160401ZX3031 and lower) .......... Z96-6 ............................ 1
............
A=90 Black .................... Handle (serial #160410ZX3032 and higher) ........ ...................................... 1
5 ..........
ZX-S05E ........................ Plain washer (serial #160401ZX3031 and lower)……6 mm ...................... 2
6 ..........
ZX-S06E ........................ Cross-recessed pan head screw (serial #160401ZX3031 and lower) ........
............ ........................................ .................................................................................
M6x12........................... 2
............ GB70- M6x12 ................ Hex Socket Cap Screw (serial #160410ZX3032 and higher) ......................
............ ........................................ .................................................................................
M6x12........................... 2
7 .......... ZXS07E ......................... Hexagon thin nuts ................................................ M4 ............................... 4
8 .......... ZXS08E ......................... Plain washers ....................................................... 4 mm ........................... 8
9 .......... ZXS09E ......................... Cross recessed pan head screws ........................ M4x12 ......................... 4
10 ........ ZXS10E ......................... Plain washers ....................................................... 5 mm ........................... 4
11 ......... ZXS11E ......................... Hexagon socket cap head screws ....................... M5x16 ......................... 4
12 ........ ZX19703E ..................... Rest bar ................................................................ .................................... 1
13 ........ ZXS13E ......................... Slotted set screws ................................................ M8x10 ......................... 2
14 ........ ZXS14E ......................... Hexagon socket cap head screws ....................... M6x35 ......................... 4
15 ........ ZXS15E ......................... Hexagon socket set screws ................................. M8x16 ......................... 1
16 ........ GH1440A19101E .......... Switch box ............................................................ .................................... 1
19 ........ ZX19702E ..................... Shaft ..................................................................... .................................... 1
21 ........ ZXS21E ......................... Nut ........................................................................ M8 ............................... 1
(Note: This device is installed from serial #110825ZX2338)
