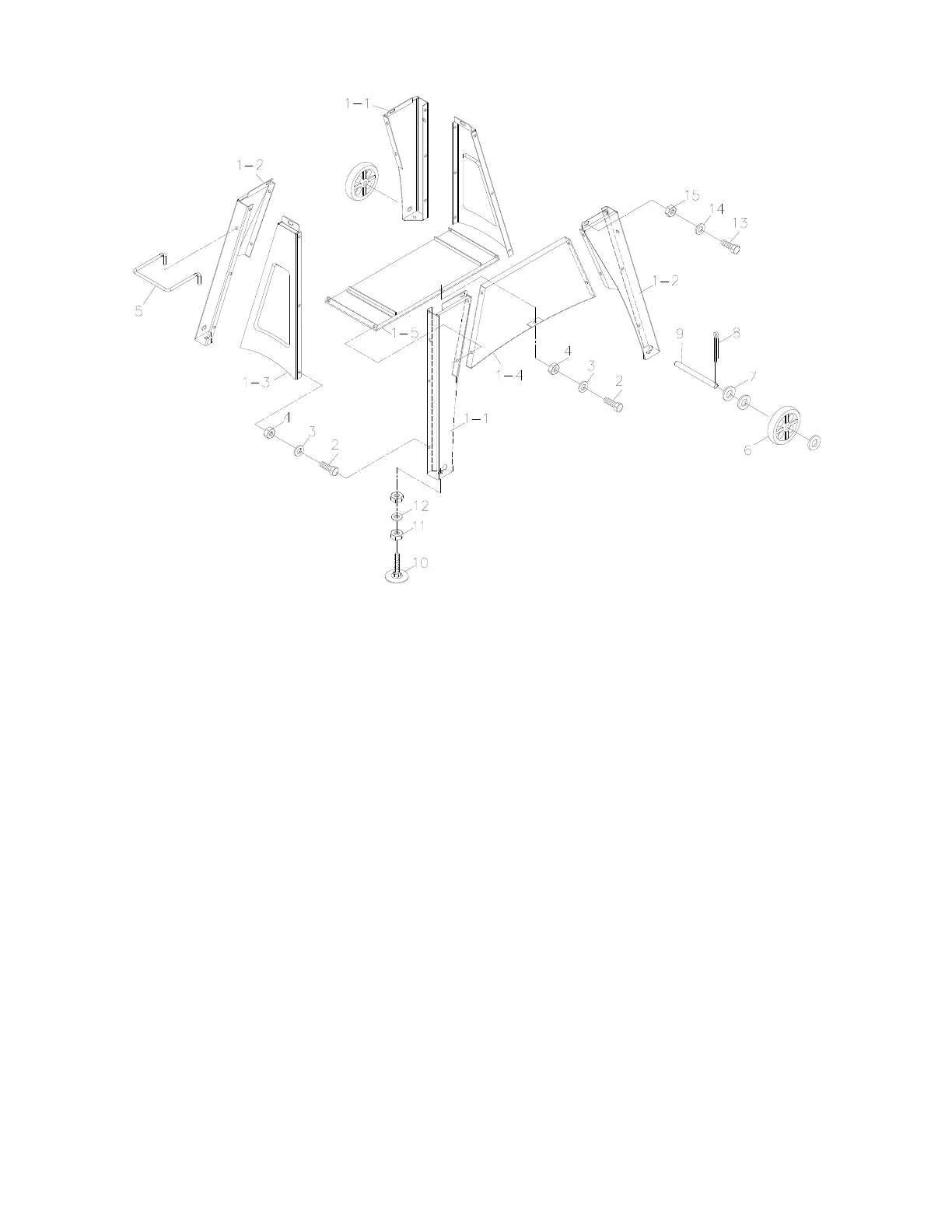

11.2.1 HVBS-56 Stand – Exploded View
11.2.2 HVBS-56 Stand – Parts List
Index No Part No Description Size Qty
1 ................ HVBS56M-CSA ......... Complete Stand Assembly ...................................... ...................................... 1
1-1 ............. HVBS56M-S1 ............ Left Stand Leg ......................................................... ...................................... 2
1-2 ............. HVBS56M-S2 ............ Right Stand Leg ....................................................... ...................................... 2
1-3 ............. HVBS56M-S3 ............ Cross Brace ............................................................. ...................................... 2
1-4 ............. HVBS56M-S4 ............ Front Panel .............................................................. ...................................... 1
1-5 ............. HVBS56M-S5 ............ Shelf ........................................................................ ...................................... 1
2 ................ HVBS56M-2 .............. Phillips Head Screw w/lock washer * ....................... 1/4” x 5/8” .................... 19
3 ................ TS-0680021 .............. Flat Washer * ........................................................... 1/4” .............................. 19
4 ................ TS-0570011 .............. Hex Nut * ................................................................. 1/4”-20 ........................ 19
5 ................ HVBS462-014 ........... Floor Stand Handle .................................................. ...................................... 1
6 ................ HVBS56M-09 ............ Wheel ...................................................................... ...................................... 2
7 ................ TS-0680081 .............. Flat Washer * ........................................................... 5/8” ................................ 6
8 ................ HVBS462-006 ........... Cotter Pin * .............................................................. 1/8” x 1” ......................... 2
9 ................ HVBS56M-07 ............ Axle .......................................................................... ...................................... 1
10 .............. HVBS56M-013 .......... Adjustable Foot ........................................................ 3/8” ................................ 2
11 .............. TS-0561032 .............. Hex Nut .................................................................... 3/8”UNF ........................ 4
12 .............. TS-0680041 .............. Flat Washer ............................................................. 3/8” ................................ 2
13 .............. TS-0208071 .............. Socket Head Cap Screw * ....................................... 5/16”-18 x 1-1/4” ........... 6
14 .............. TS-0680031 .............. Flat Washer * ........................................................... 5/16” .............................. 6
15 .............. TS-0570021 .............. Hex Nut * ................................................................. 5/16”-18 ........................ 6
.................. HVBS56MG-HP ........ Hardware Package (contains items with *) .............. ........................................
