8
Assembly
Read and understand all assembly instructions
before attempting assembly! Failure to comply
may cause serious injury!
Before Assembly
1. Remove the contents from the shipping
container.
2. Compare the contents of the shipping container
with the list found above. Report any shortages
or damage to your JET distributor.
3. Clean all rust protected surfaces with kerosene
or a light solvent. Do not use lacquer thinner,
paint thinner, or gasoline. These will damage
plastic components and painted surfaces.
Column Assembly

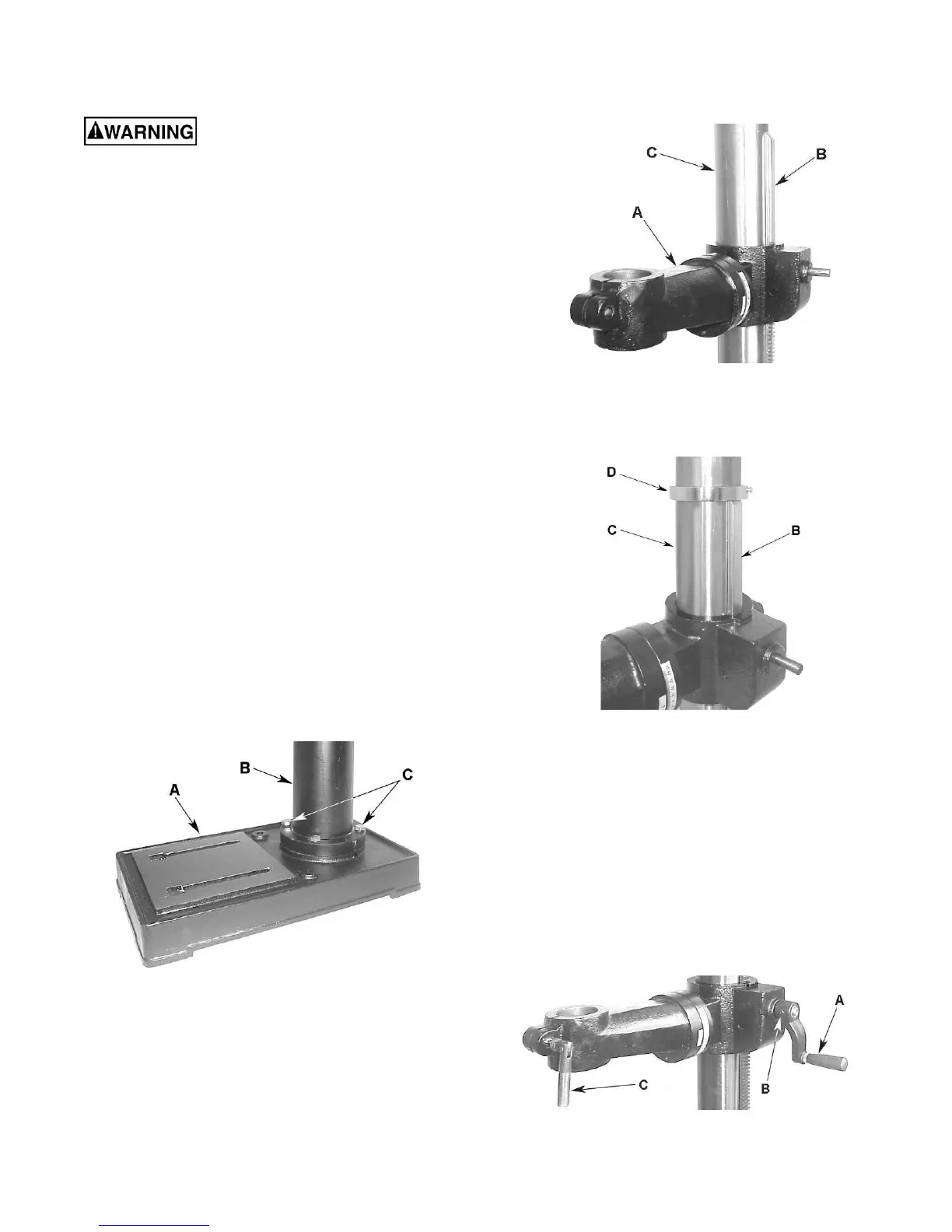

Referring to Figure 1:
1. Place the base (A) on a level floor.
2. Place the column assembly (B) on the base (A)
and align the holes in the column support with
the holes in the base.
3. Note: The column shown in Figure 1 is for the
JDP-15MF. While the JDP-15M column is
slightly different in appearance, the assembly
procedure is the same.
4. Using a 17mm wrench, secure the column (B)
with four M10 x 40 hex cap screws (C) to the
base.
Figure 1
Table Bracket
When shipped, the rack ring and rack are bundled
together with the column in plastic wrap.
Referring to Figures 2 and 3:
1. Remove the wrap and take the rack ring (D) and
rack (B) off the column (C).
2. Install the table bracket (A) together with the
rack (B) as shown in Figure 2.
Figure 2
3. Slide the rack ring (D) over the column (C),
placing it so it rests against the rack (B) as
shown in Figure 3 and tighten firmly.
Figure 3
Crank Handle and Table Lock Handle
Referring to Figure 4 (shown already assembled):
1. Loosen the setscrew (B) on the table crank
handle (A).
2. Slide the handle (A) onto the table bracket shaft.
3. Turn the handle until the setscrew is opposite
the flat section on the shaft, and tighten the
setscrew to secure the handle.
4. Install the table lock handle (C), but do not tighten.
Figure 4
