10
Table Adjustment
The table stops have been set-up at the factory.
However, if you run into a problem, or want to
check the table follow the below listed steps.

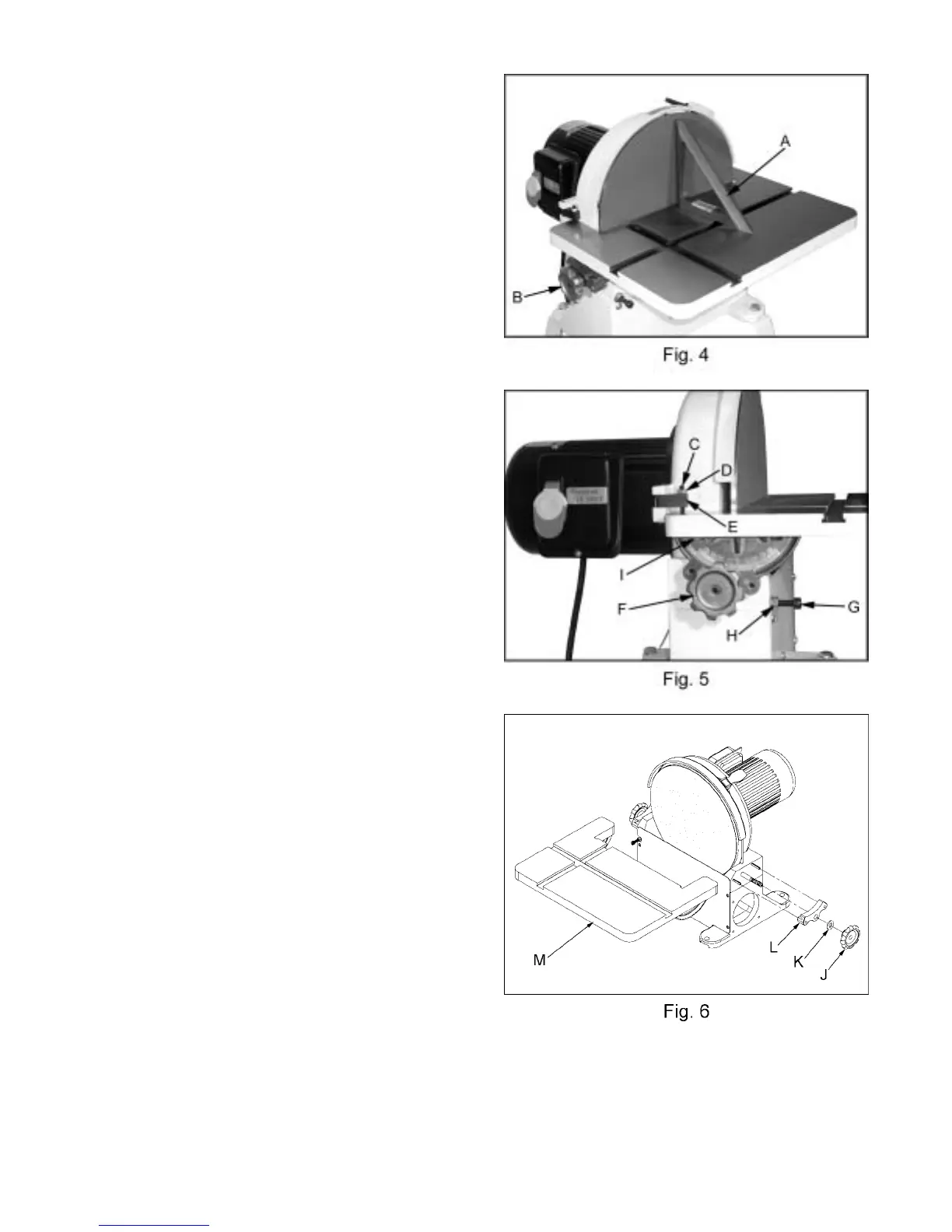

1. Loosen lock knobs (B, Fig. 4) and move the
table to the 90 degree position. Tighten
knobs and place a square (A, Fig. 4) against
the table and disc. The square should rest
flat against the table and disc.
2. If adjustment is needed move the table so
that it rests 90 degrees from the table, and
loosen the hex nut (D, Fig. 5) and tighten
the set screw (C, Fig. 5) until it contacts the
table surface. Tighten hex nuts. This will
properly adjust the 90-degree stop.
3. Loosen the lock knobs (F, Fig. 5) and tilt the
table up just enough to pivot the stop (E, Fig.
5) out of the way.
4. Tilt the table down until it hits the 45 degree
stop (G, Fig. 5). Tighten lock knobs, and
check the table with a combination square.
5. If adjustment is needed, loosen the hex nut
(H, Fig. 5) and adjust the socket head cap
screw (G, Fig. 5) until it contacts the table.
Tighten hex nuts.
6. Always maintain a gap of approximately
1/16” between the table edge, and disc. If
adjustment is necessary loosen hex cap
bolts (I, Fig. 5) and move the table into
position. Tighten hex cap bolts.
7. The table tilts between 15° up - 45° down by
loosening the lock knobs and tilting the table
to the desired angle. Tighten the knobs.
8. If you want to tilt the table up you need to
pivot the stop (E, Fig. 5) out of the way.
Sanding Disc Replacement
1. Disconnect machine from the power
source.
2. Remove the knobs (J, Fig. 6), washers (K,
Fig. 6), and trunnion holders (L, Fig. 6)
followed by the table assembly (M, Fig. 6).
3. Remove old sanding disc by striping from
wheel. Use a cleaner and putty knife to
remove the residue. Make sure the disc
plate is clean and dry.
4. Press the new disc firmly into place.
